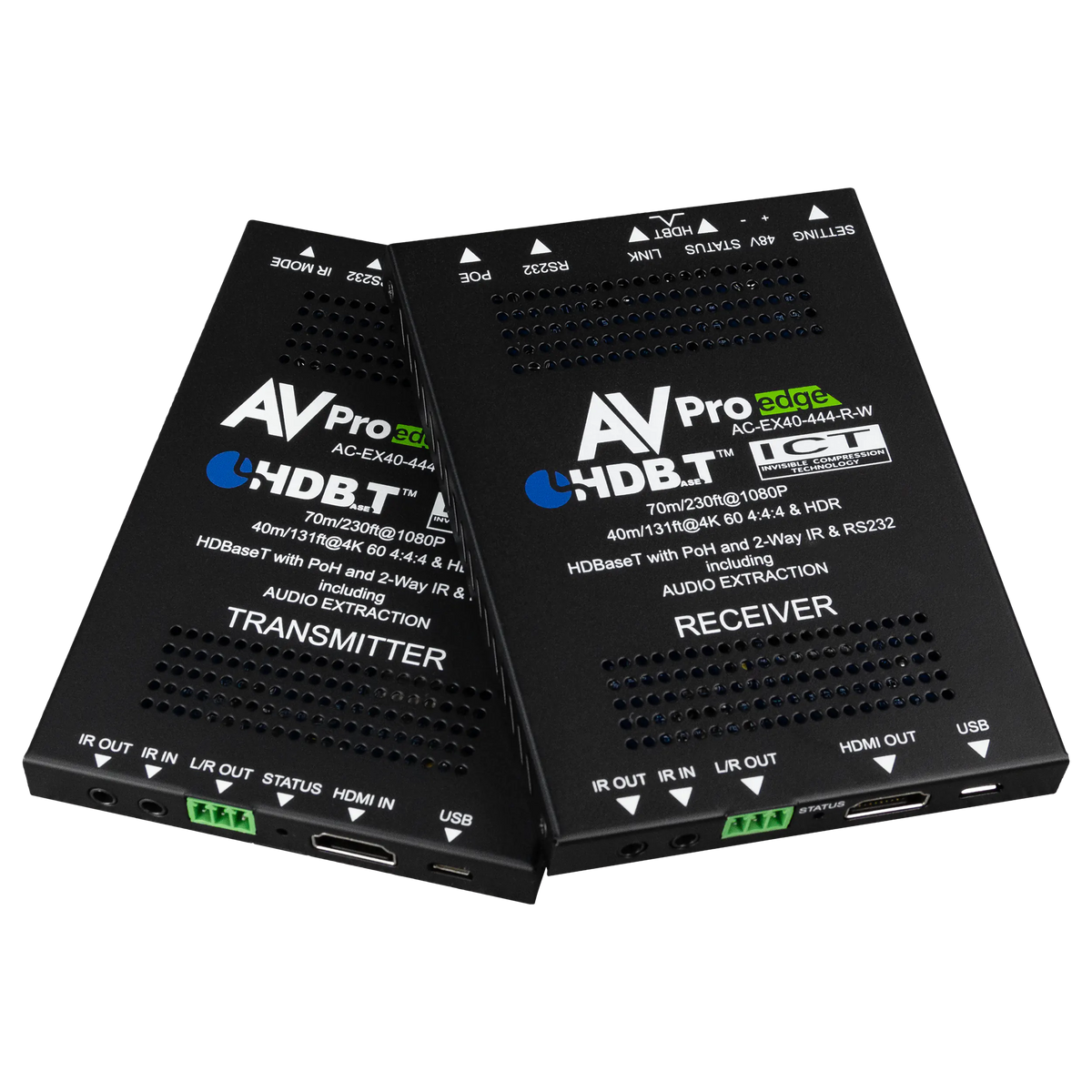

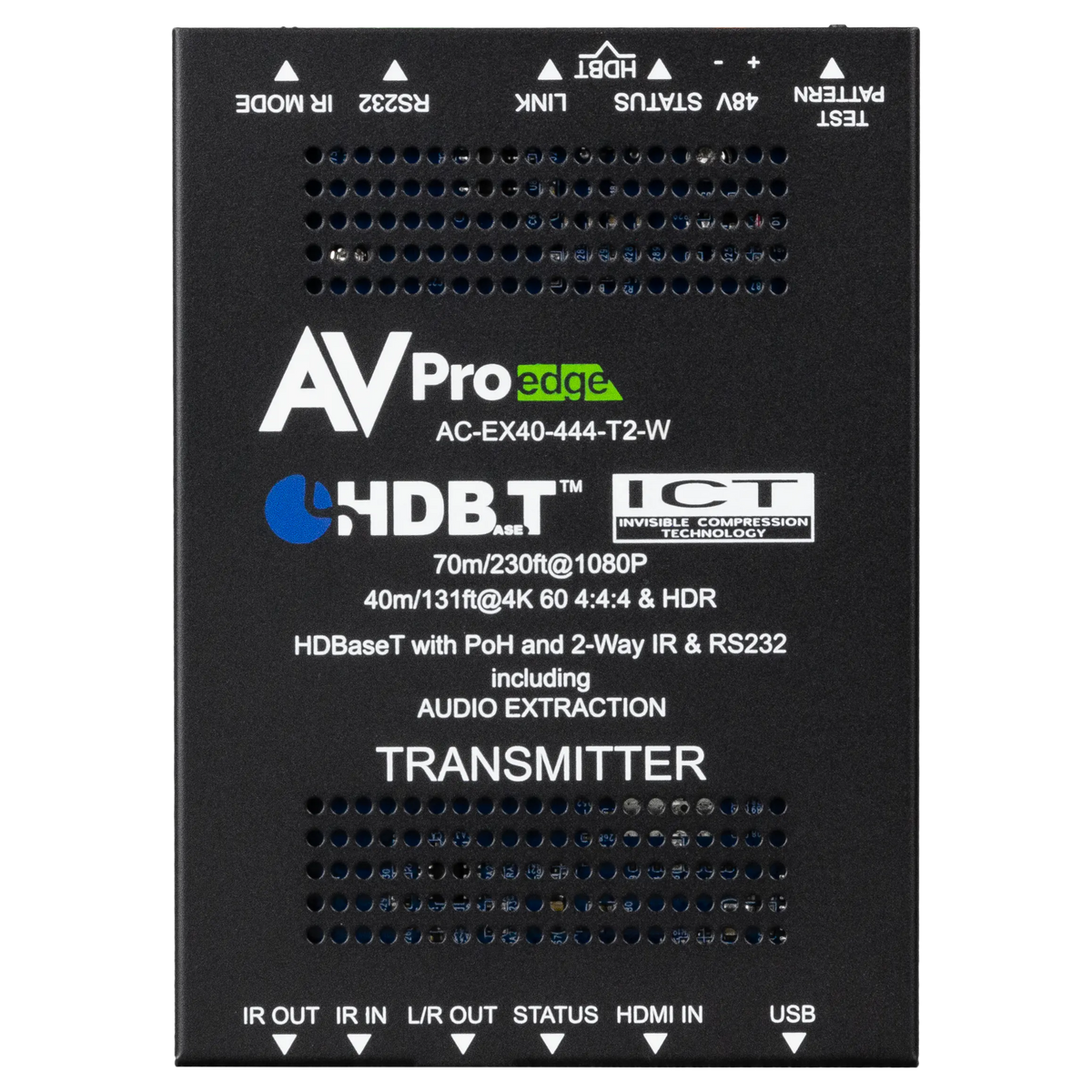

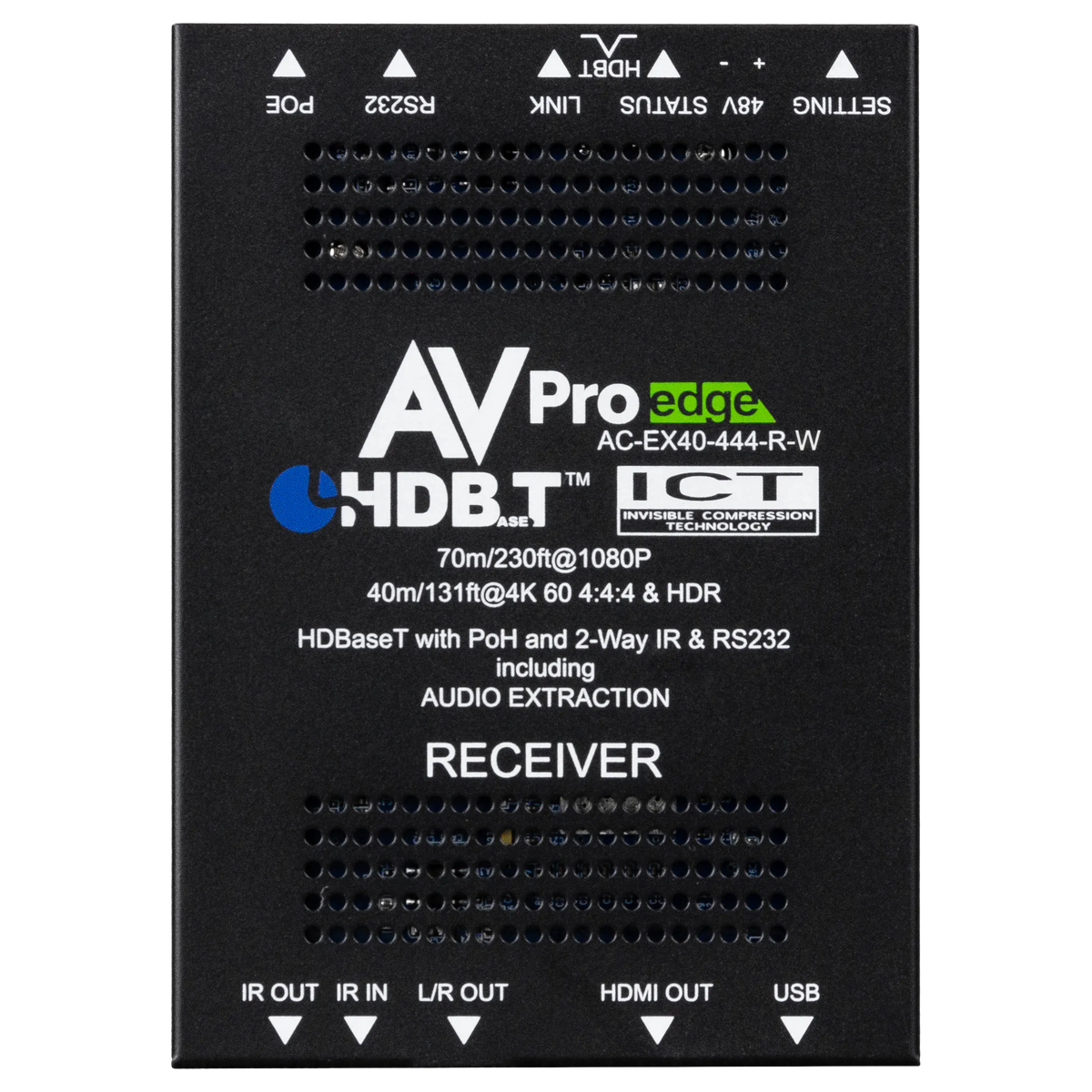

NAME        AC-EX40-444-KIT-W

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:4:4
VESA RESOLUTIONS        UP TO DCI 4K (4096X2160)
HDR FORMATS        HDR10, HDR10+, HLG, DOLBY VISION, LOW LATENCY DOLBY VISION
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
COLOR BIT DEPTH        UP TO 16 BIT (1080), UP TO 12 BIT (4K)
DOWN SCALING        4K (AND HDR) DOWN TO 2K

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (2CH EXTRACTED)        PCM 2 CH (NO DOWNMIX)

DISTANCE
HDBASET (CAT) DISTANCE (4K)        40 METERS / 131 FEET (CAT 6A)
HDBASET (CAT) DISTANCE (FULL HD)        70 METERS / 230 FEET (CAT 6A)
HDMI LEAD IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI LEAD IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS (WITH ICT)
HDCP        HDCP 2.3 AND EARLIER

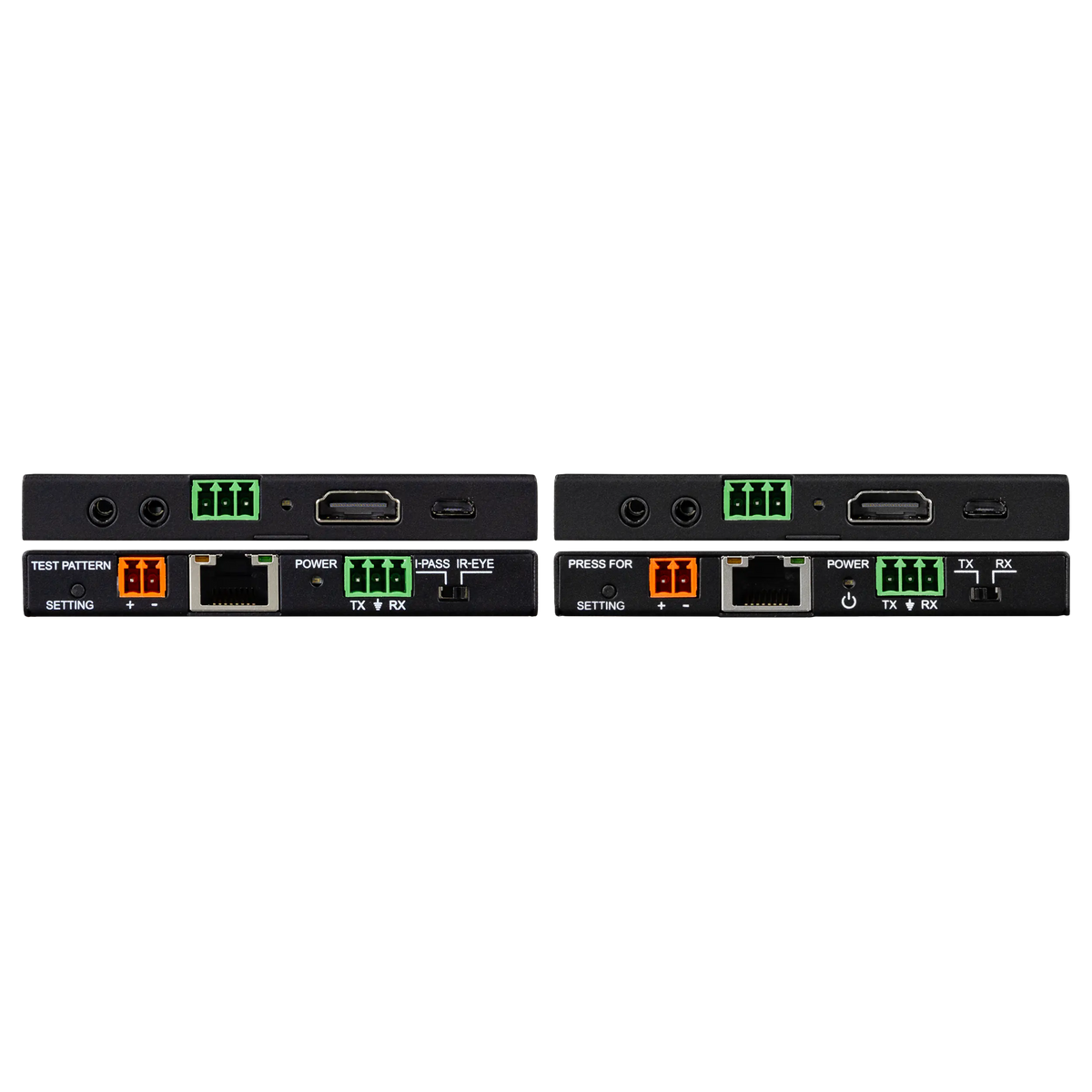

PORTS
HDMI (TX & RX)        TYPE A
AUDIO (EXTRACTED ANALOG)        3 PIN TERMINAL BLOCK (UNBALANCED)
IR TX (TX & RX)        3.5MM MONO (2 CONDUCTOR)
IR RX (TX & RX)        3.5MM STEREO (3 CONDUCTOR)
RS232 (TX & RX)        3-PIN TERMINAL BLOCK
POWER (TX & RX)        2-PIN TERMINAL BLOCK

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        12 WATTS MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 48V 0.5A

DIMENSIONS
DIMENSIONS (SINGLE UNIT H/D/W)        MM: 129 X 92 X 12 | INCH: 5.05 X 3.62 X 0.47
DIMENSIONS (PACKAGED H/D/W)        MM: 203 X 165 X 91 | INCH: 8 X 6.5 X 3.6
WEIGHT (UNIT)        0.3 LBS (0.13 KG)
WEIGHT (PACKAGED)        2 LBS (0.90 KG)
