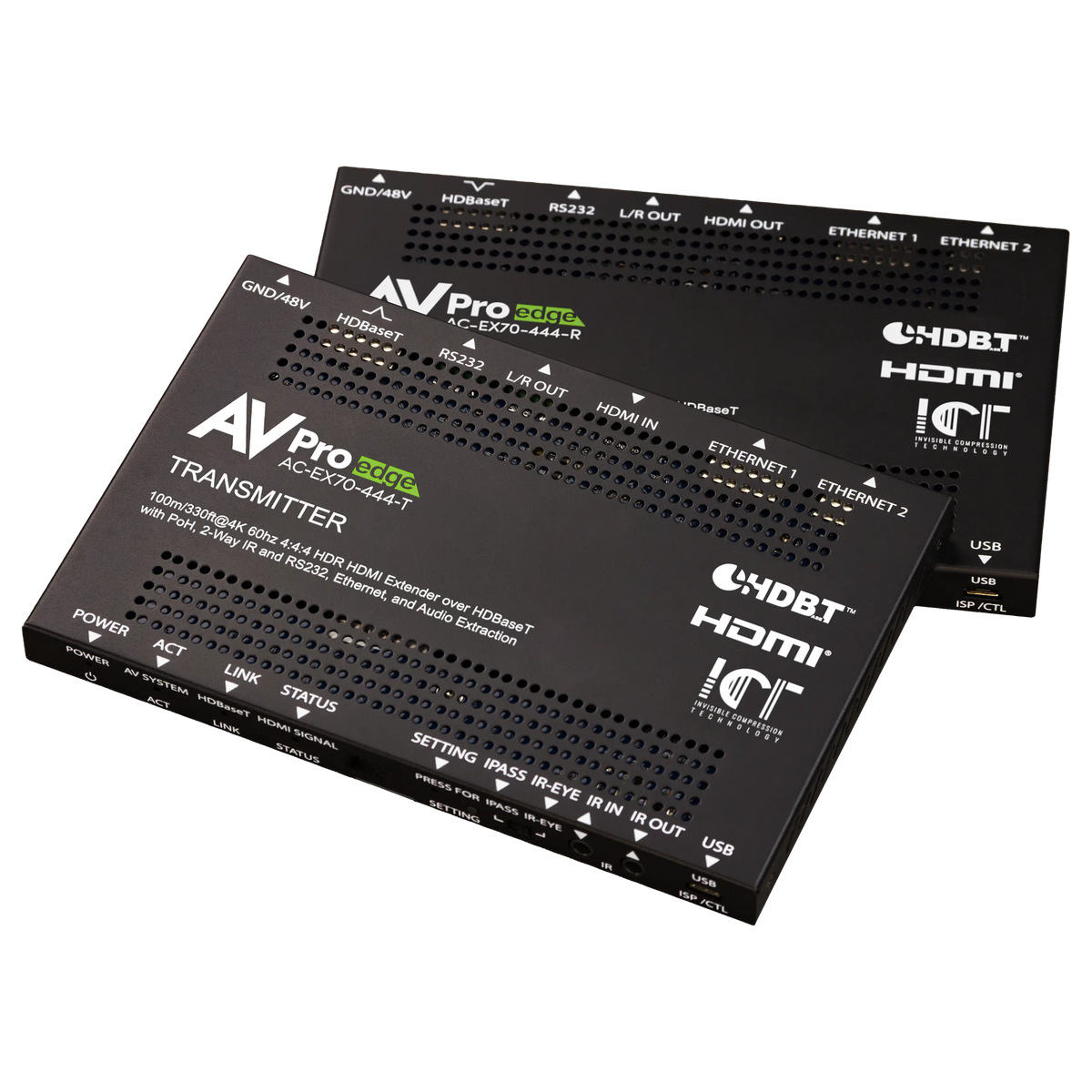

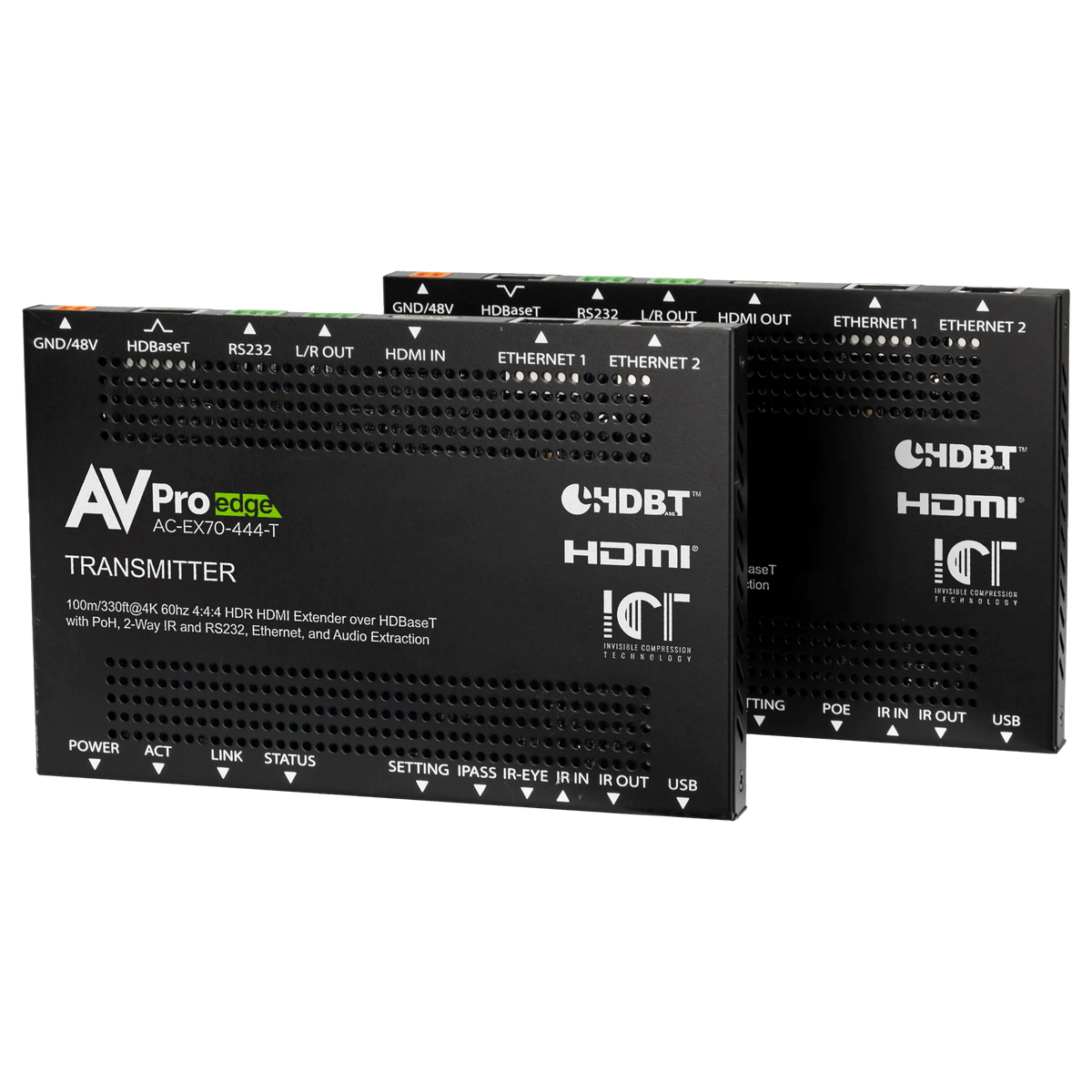

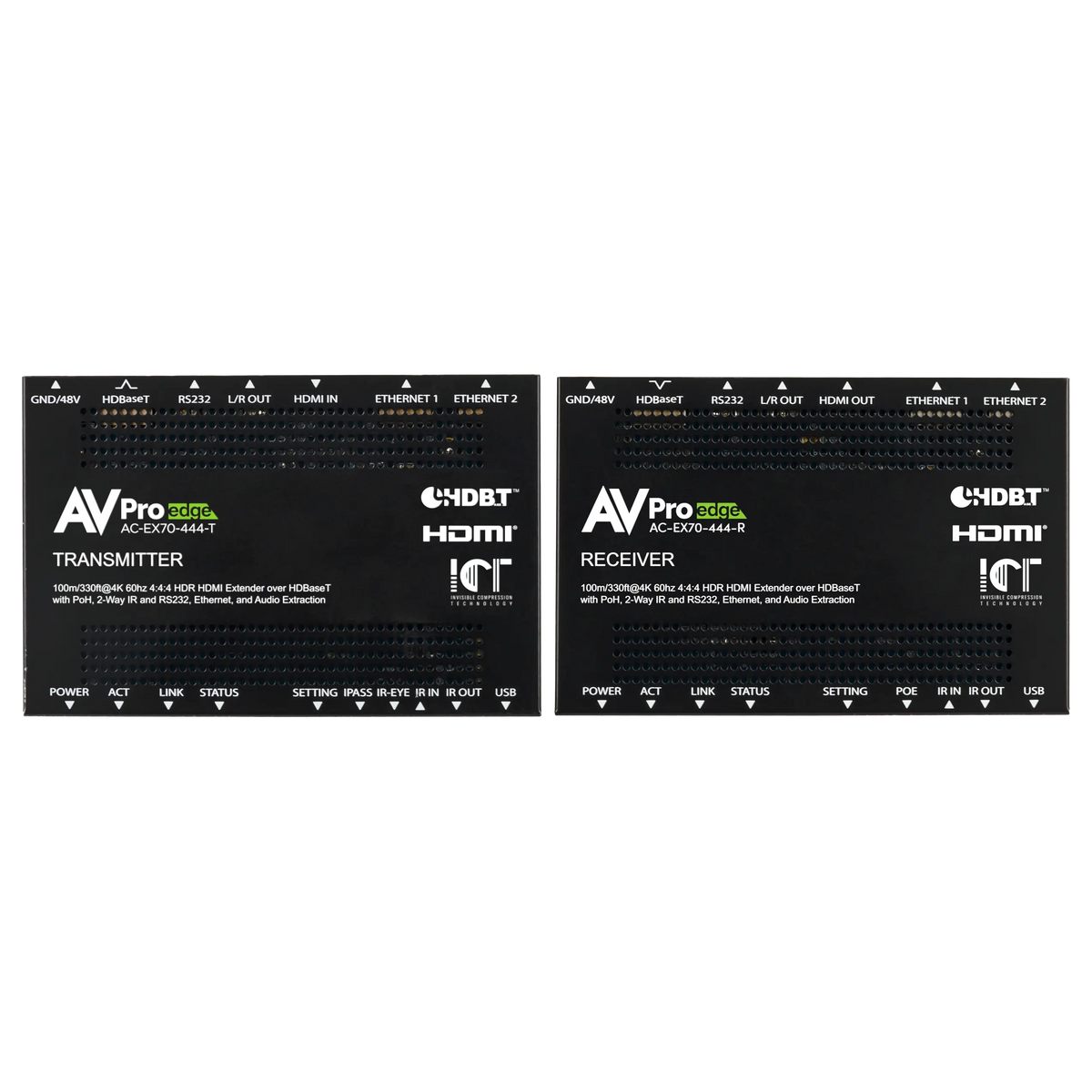

NAME        AC-EX70-444-KIT

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:4:4
HDR FORMATS/RESOLUTIONS        420, 422, 444 (10 AND 12 DEEP COLOR) | HDR10, HDR10+, DOLBY VISION, HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
DEEP COLOR        UP TO 16 BIT (1080), UP TO 12 BIT (4K)
DOWN SCALING        4K TO 1080P

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (2CH EXTRACTED)        PCM 2 CH

DISTANCE
HDBASET (CAT) DISTANCE (4K)        100 METERS / 330 FEET (CAT 6A)
HDMI IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS (USES ICT ABOVE 10.2 GBPS SIGNALS)
HDCP        HDCP 2.3 AND EARLIER

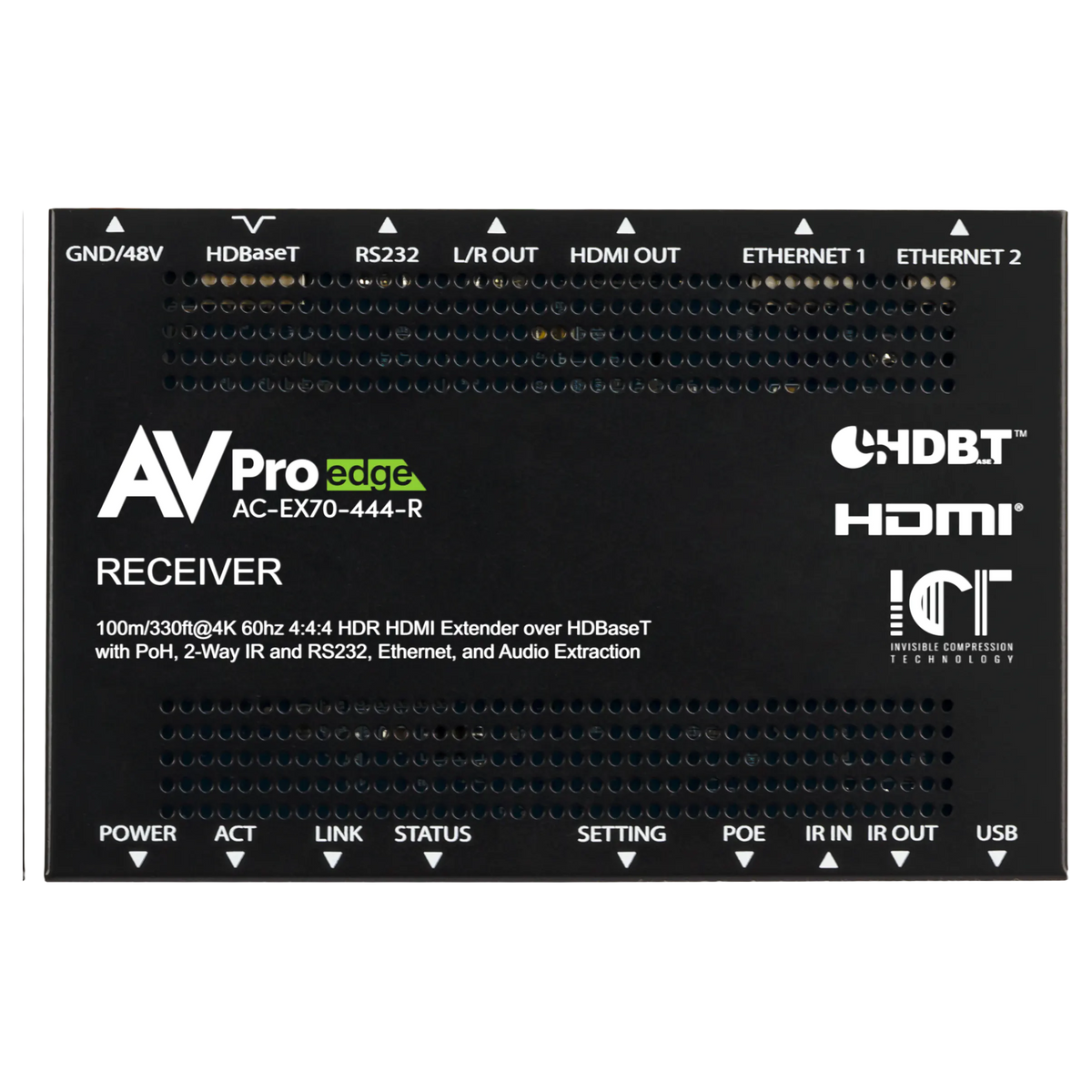

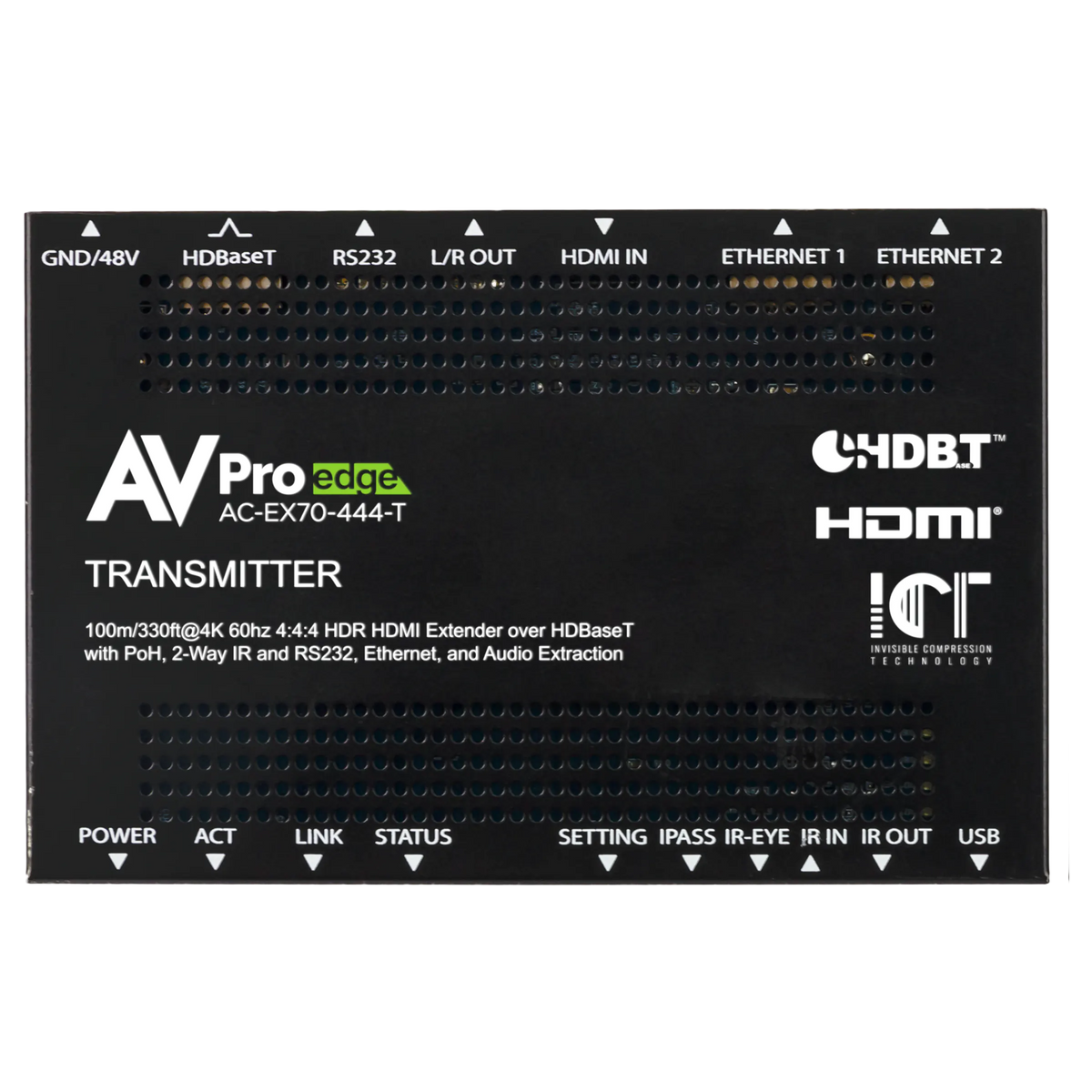

PORTS
HDMI (TX & RX)        TYPE A
HDBASET        RJ45 W/ POH FOR HDBASET RECEIVERS
AUDIO (EXTRACTED ANALOG) (TX & RX)        5 PIN TERMINAL BLOCK (BALANCED)
IR TX (TX & RX)        3.5MM MONO (2 CONDUCTOR)
IR RX (TX & RX)        3.5MM STEREO (3 CONDUCTOR)
RS232 (TX & RX)        3 PIN TERMINAL BLOCK EACH
POWER (TX & RX)        2 PIN TERMINAL BLOCK EACH
ETHERNET (TX & RX)        2X RJ45 CONNECTIONS EACH (10/100)
FIRMWARE (TX & RX)        USB-C

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        12 WATTS MAX

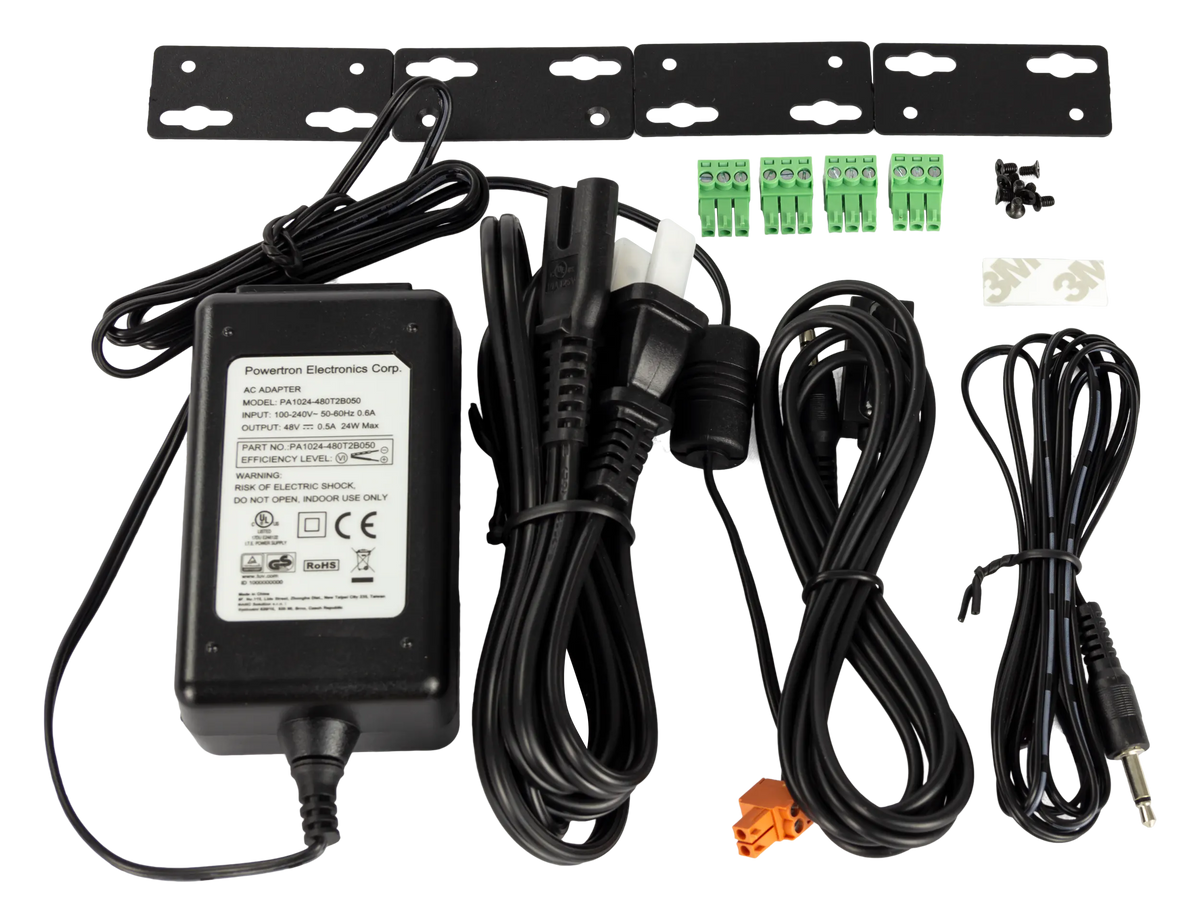

POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 48V 0.5A

DIMENSIONS
DIMENSIONS (UNIT ONLY L/W/H)        MM: 103 X 157 X 12 | INCH: 4.04 X 6.18 X 0.47
DIMENSIONS (PACKAGED L/W/H)        MM: 165 X 203 X 91 | INCH: 6.5 X 8 X 3.6
WEIGHT (UNIT)        0.4 LBS (0.13 KG)
WEIGHT (PACKAGED)        2 LBS (0.90 KG)
