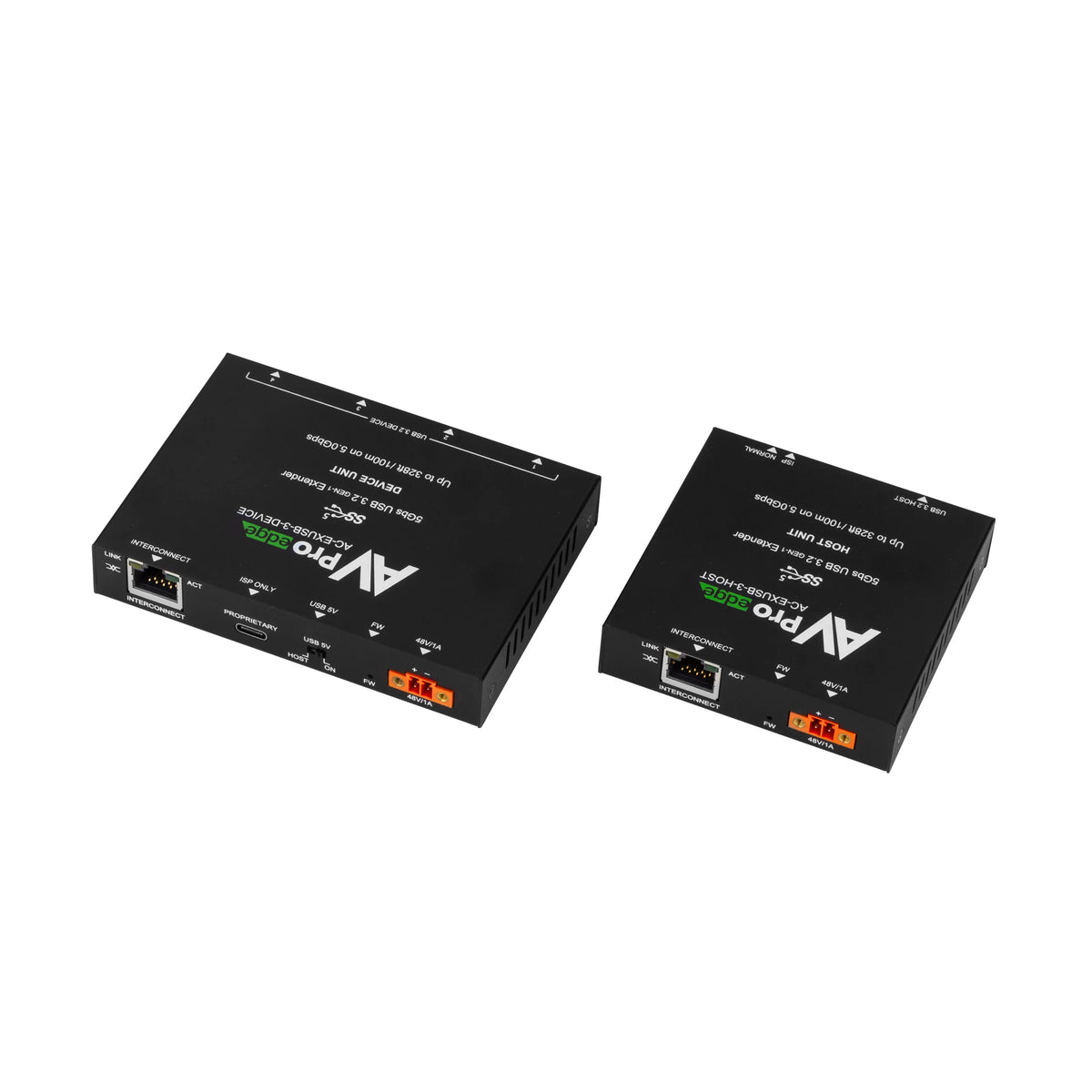

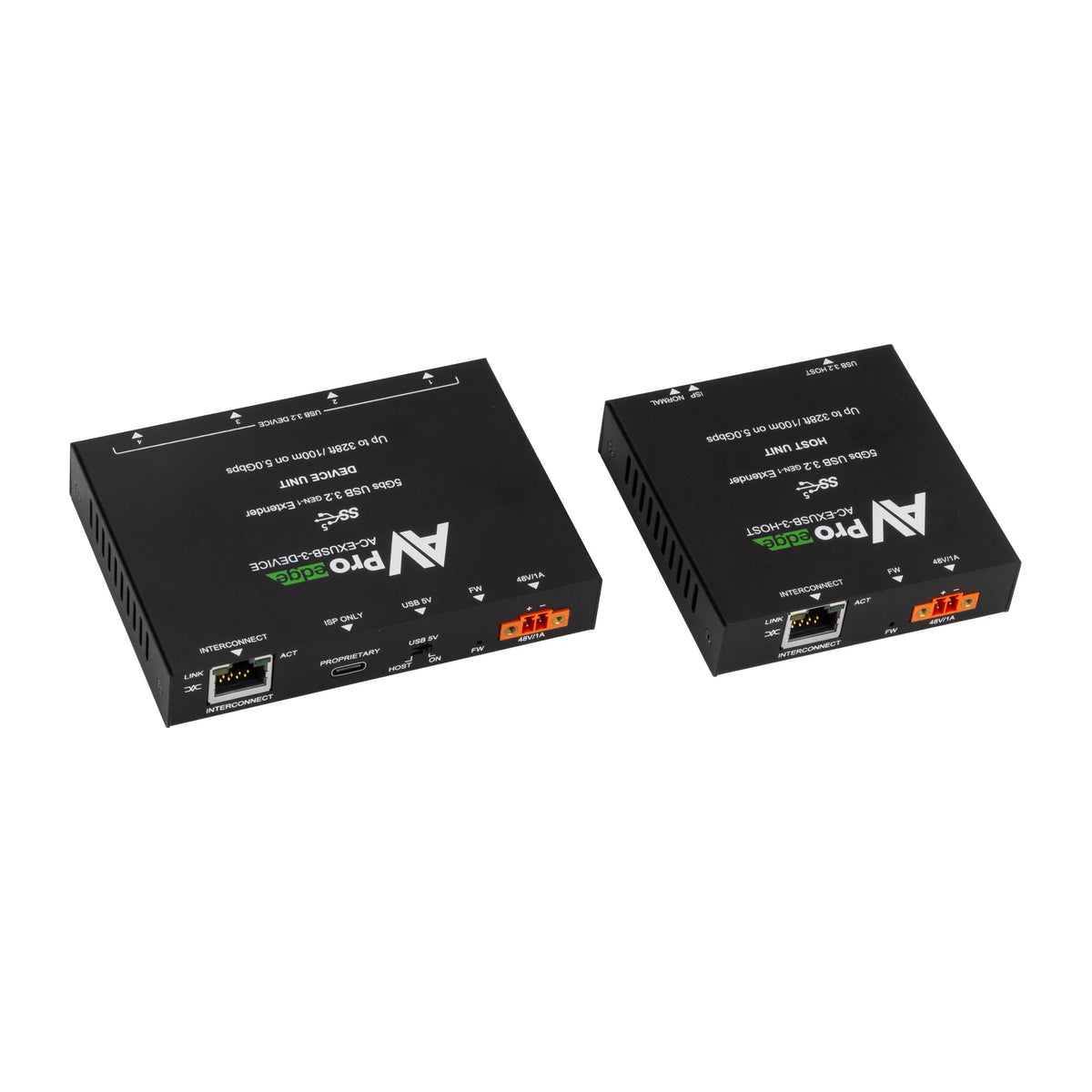

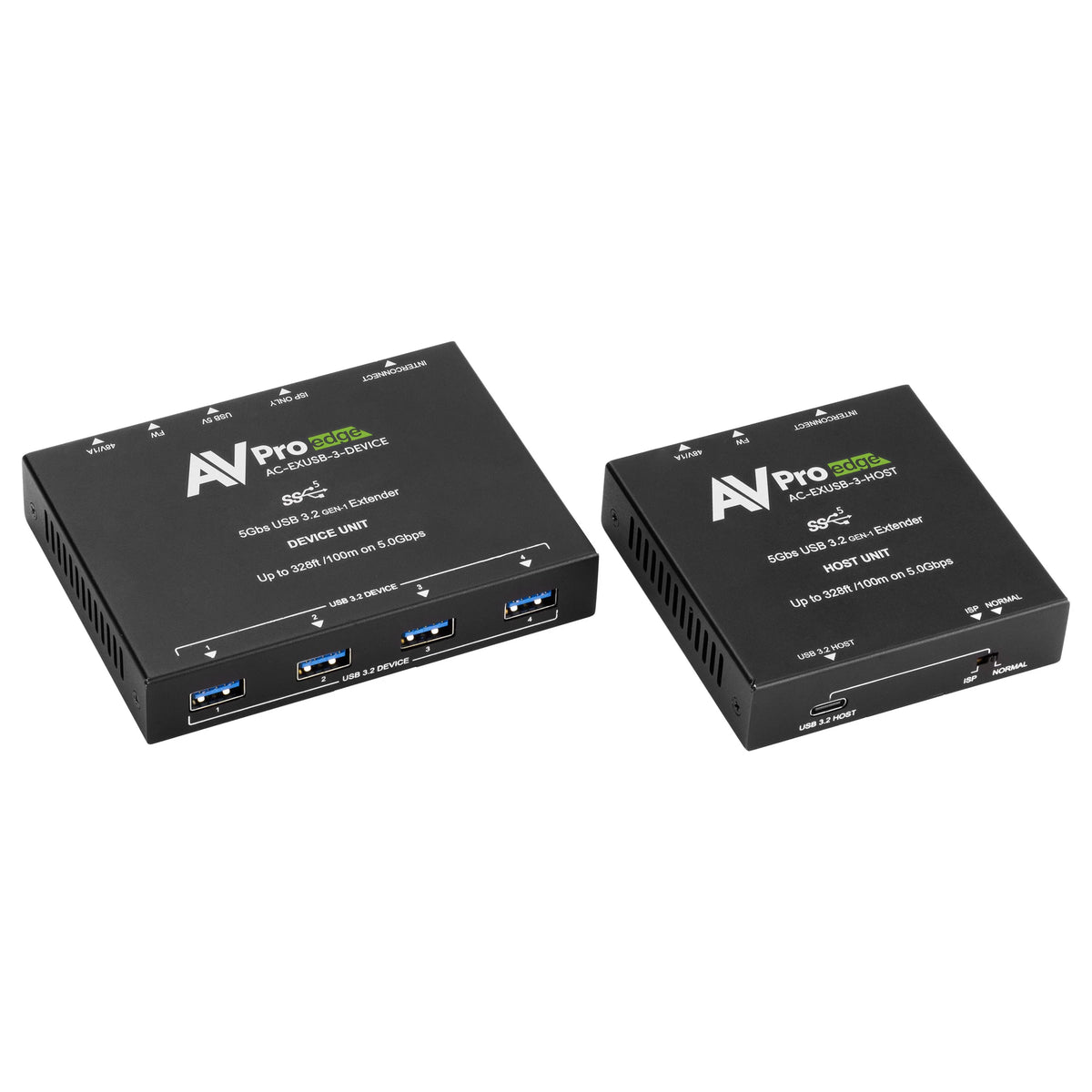

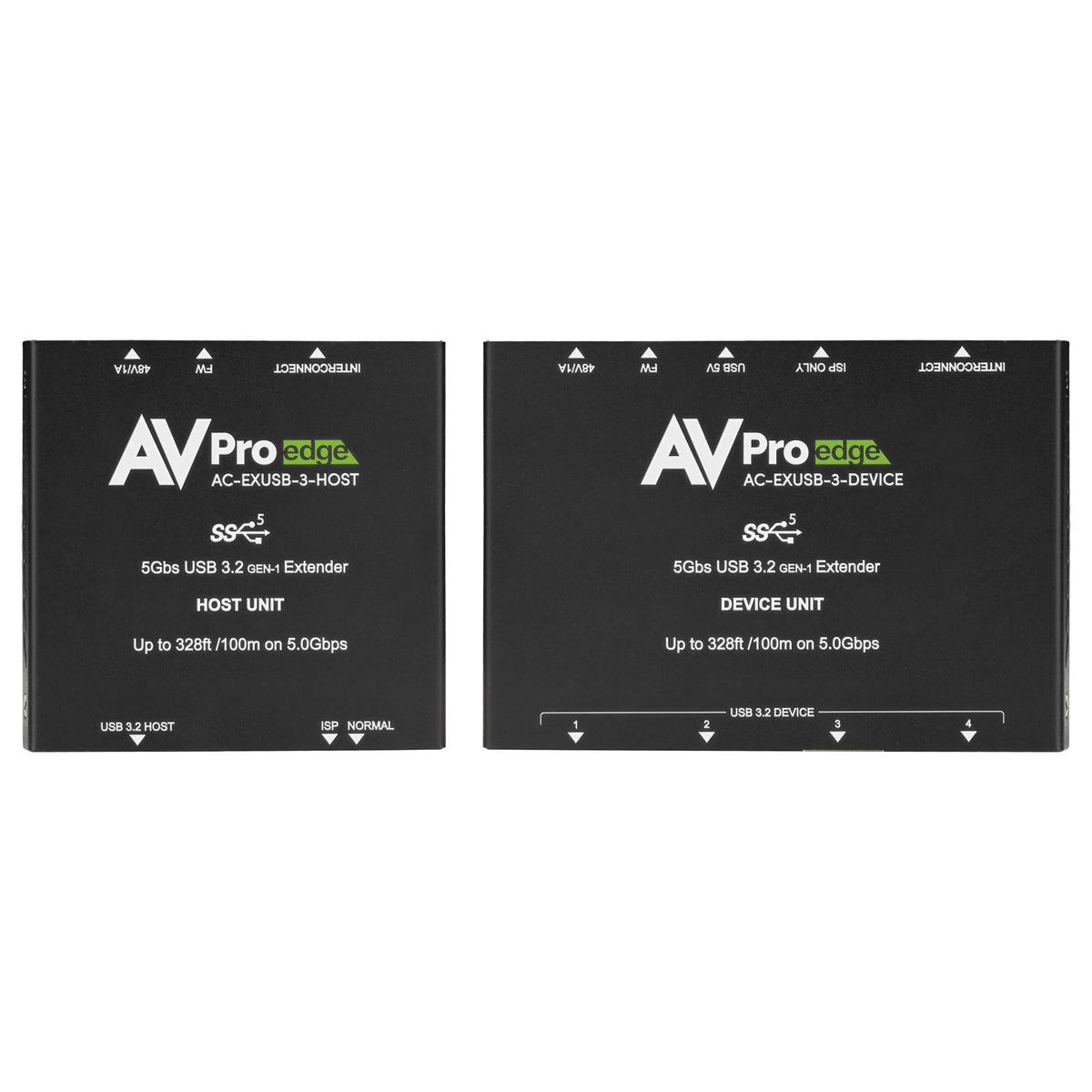

NAME        AC-EXUSB-3-KIT

DISTANCE
DISTANCE (CAT6A)        100 METERS (328 FEET)

USB CAPABILITIES
COMPATIBILITY        USB 1.0, 2.0, 3.X UP TO 3.2 GEN1
BANDWIDTH        UP TO 5 GBPS (3.2 GEN1)
POWER        USB 1.0/2.0 - 5V, 500MA | USB 3.X - 5V, 900MA
TRANSFER TYPE        ASYNCHRONOUS, ISOCHRONOUS, BULK, CONTROL, INTERRUPT
UVC SUPPORT        UP TO UVC 1.5
UAC SUPPORT        UP TO UAC 3.0
VIRTUAL GRAPHICS        DISPLAYLINK
CONSUMED USB TIERS        1 TIER (DEVICE ADDS ONE TIER DUE TO EMBEDDED USB HUB)
CONSUMED USB TIERS (USB 2.X)        1 TIER – HDBASET CHIPSET
CONSUMED USB TIERS (USB 3.X)        2 TIERS – HDBASET CHIPSET + EMBEDDED HUB

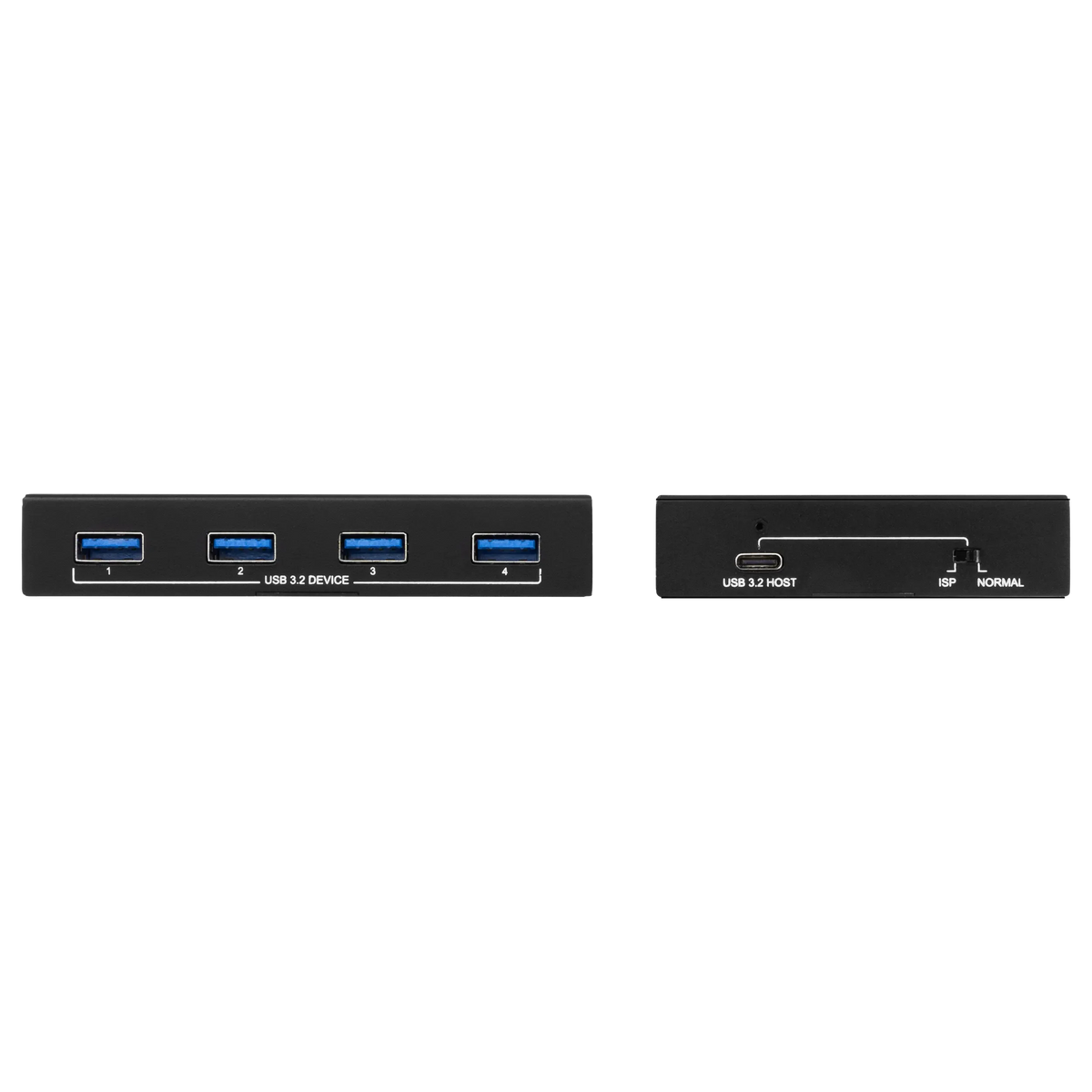

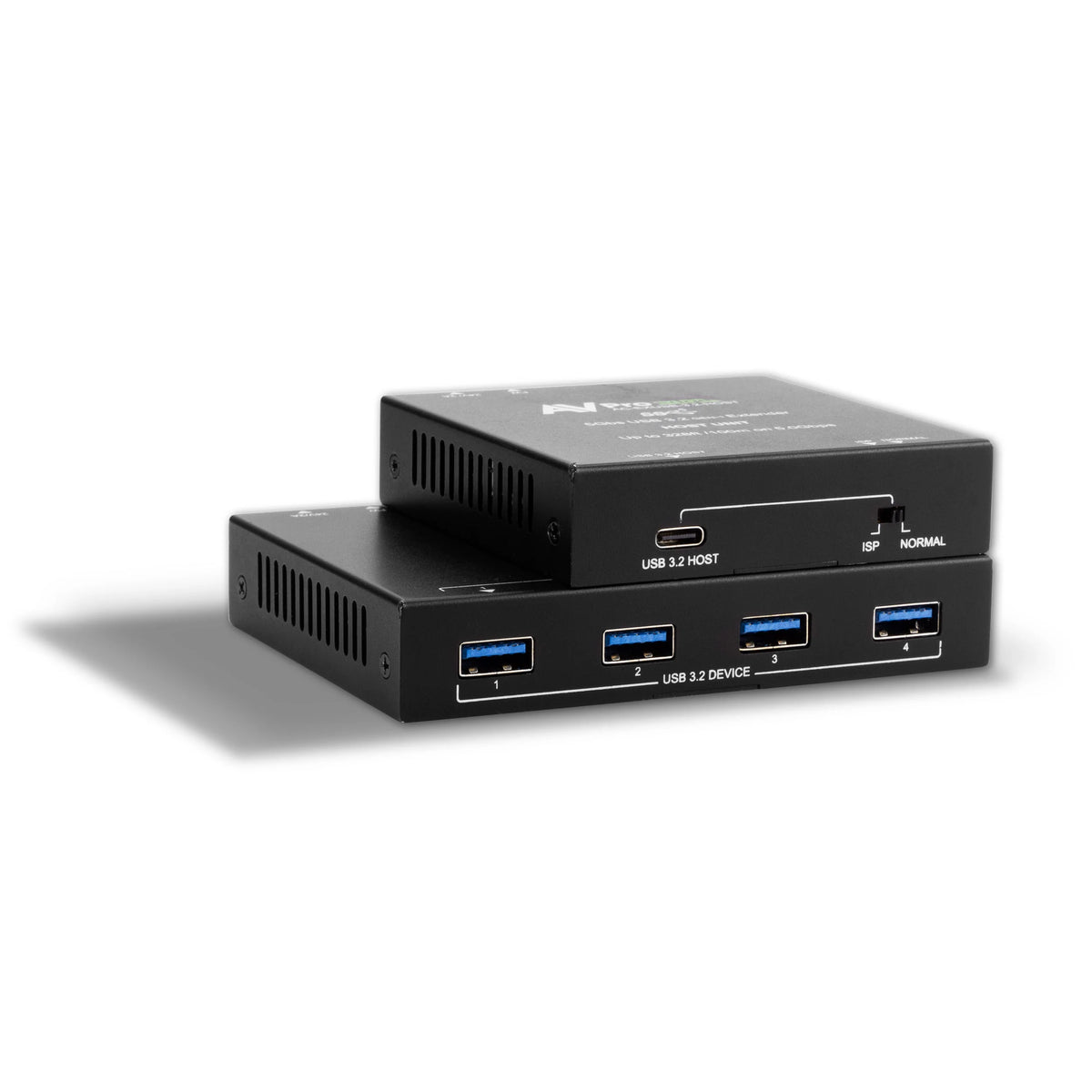

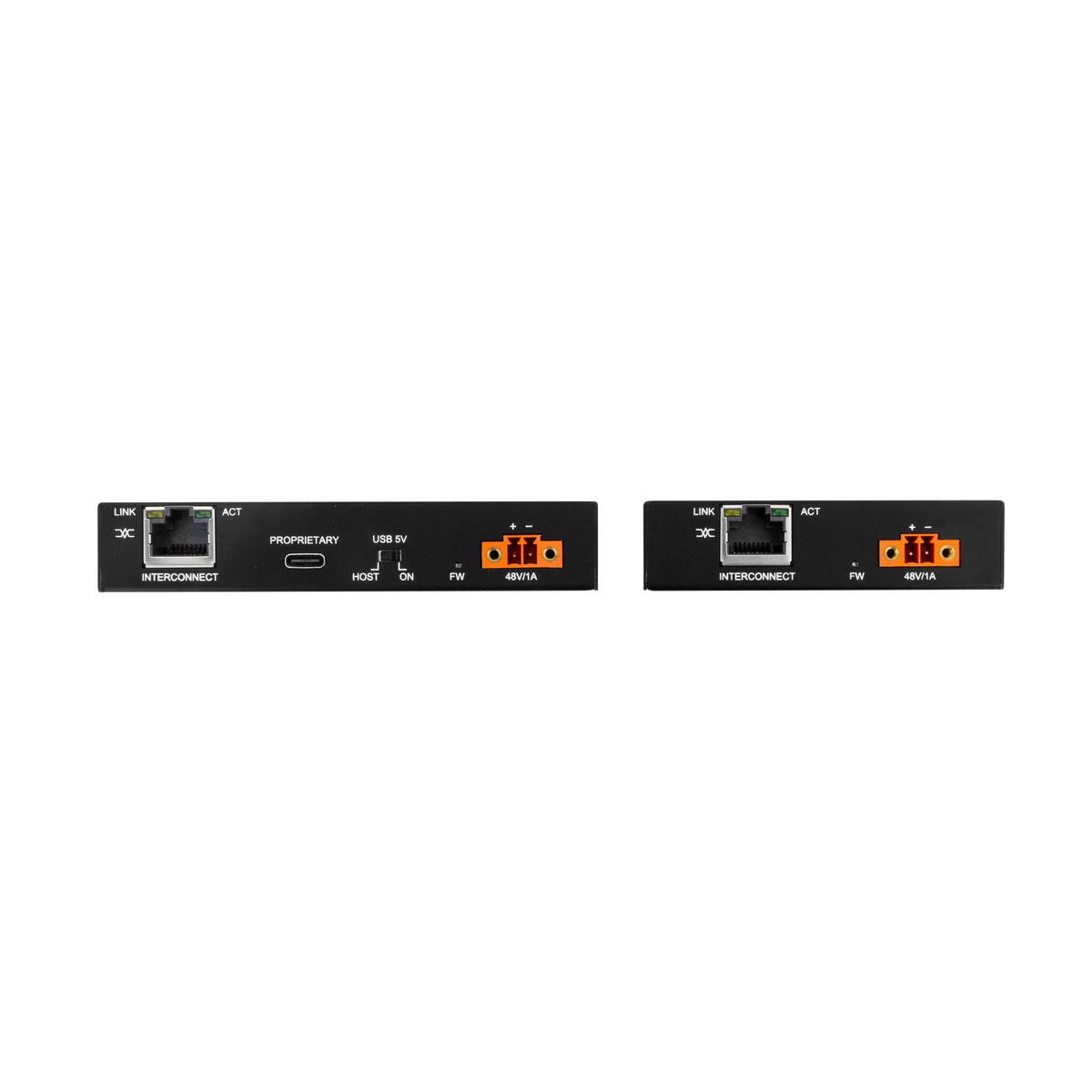

PORTS
HDBASET        RJ45
POWER        2-PIN LOCKING PHOENIX
USB HOST        USB TYPE-C
USB DEVICE        4X USB TYPE-A

ENVIRONMENTAL
OPERATING TEMP        23 TO 125°F (-5 TO 51°C)
STORAGE TEMP        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION        24W MAXIMUM

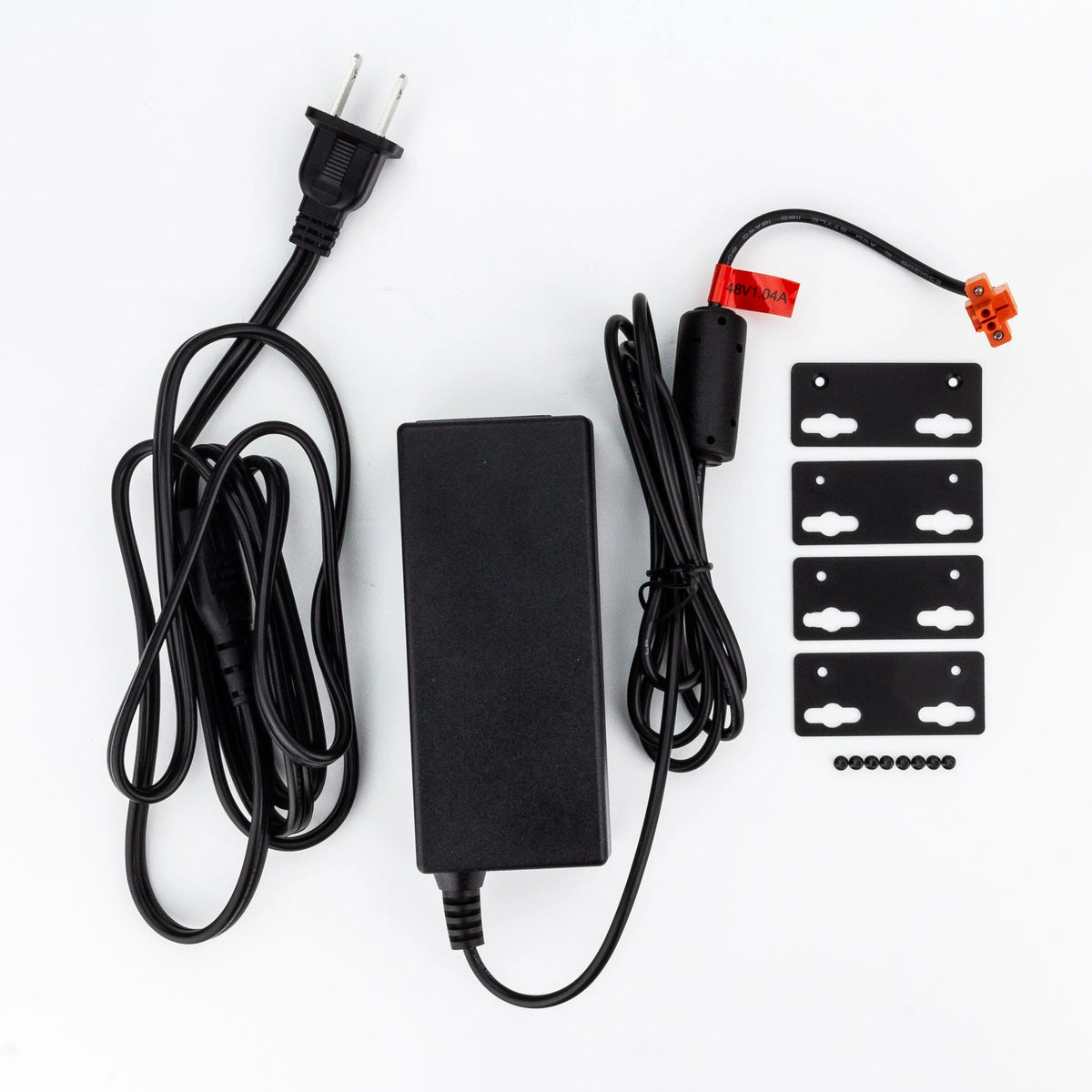

POWER SUPPLY        INPUT: 100-240VAC ~ 50/60HZ | OUTPUT: 48VDC, 1A

PHYSICAL DIMENSIONS
DIMENSIONS (HOST L/W/H)        MM: 79 X 79 X 19 | INCHES: 3.1 X 3.1 X 0.75
DIMENSIONS (DEVICE L/W/H)        MM: 79 X 109 X 19 | INCHES: 3.1 X 4.3 X 0.75
WEIGHT (HOST)        0.32 LBS (0.15 KG)
WEIGHT (DEVICE)        0.44 LBS (0.20 KG)
WEIGHT (PACKAGED)        2.1 LBS (0.95 KG)
