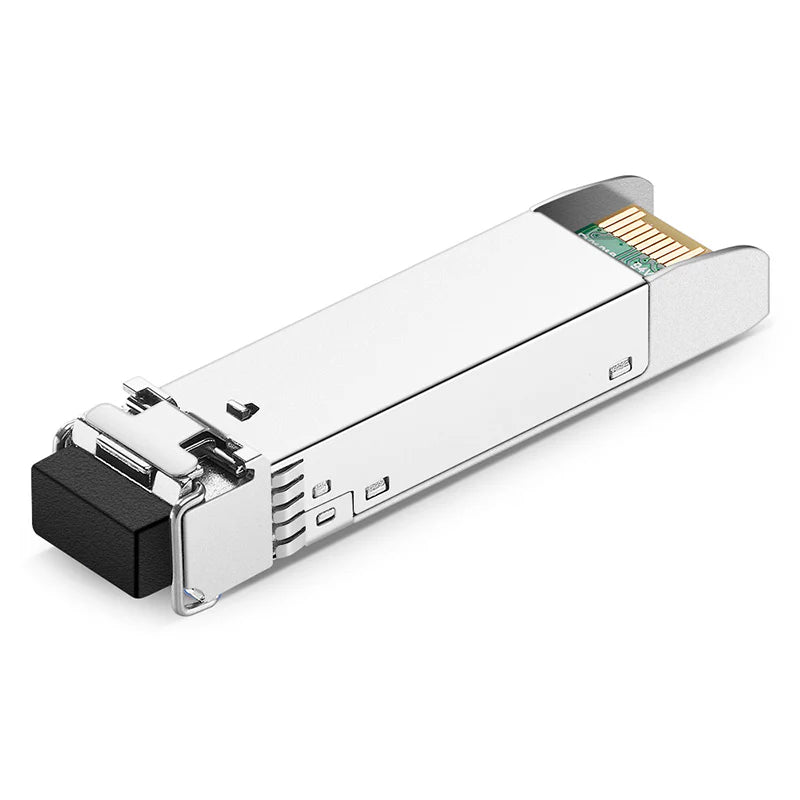

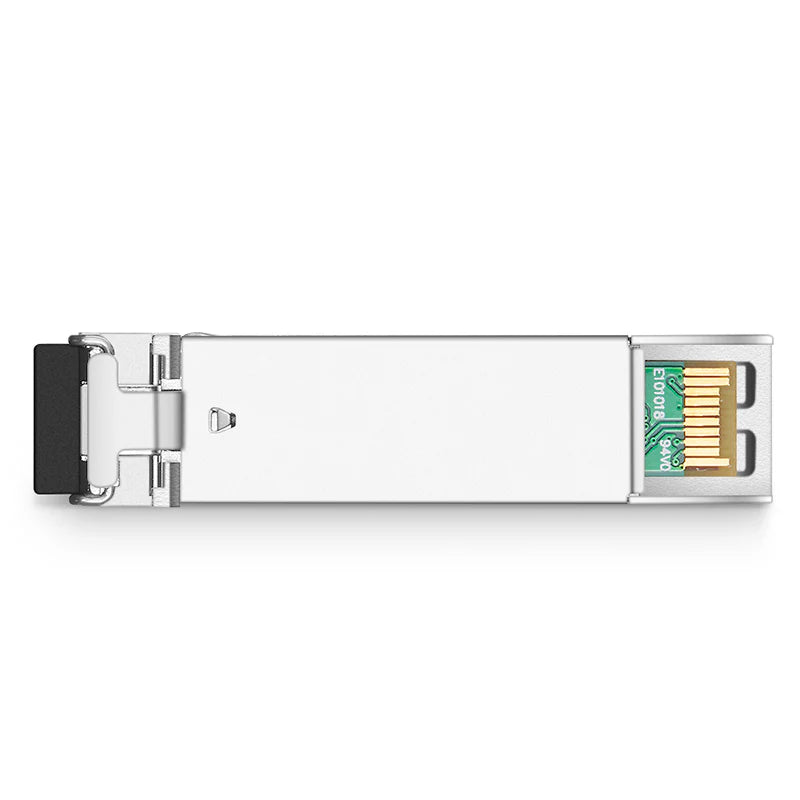

Name        AC-MXNET-1G-R15

Form Factor        SFP
Max. Data Rate        1.25Gbps
Wavelength        850nm
Max. Cable Distance        550m@50/125µm OM2 MMF
                          275m@62.5/125µm OM1 MMF
                          220m@62.5/125µm FDDI MMF
Connector        Duplex LC
Media        MMF
Transmitter Type        VCSEL
Receiver Type        PIN
DDM/DOM        Supported
Commercial Temperature Range        0 to 70°C (32 to 158°F)
TX Power        -9.5 ~ -3dBm
Receiver Sensitivity        < -17dBm
Typical Power Consumption        ≤0.8w
Receiver Overload        -3dBm
Bit Error Ratio (BER)        1.00E-12
Extinction Ratio        >9dB
EMC (Electro Magnetic Compatibility)        Supported
MTBF (SX)        2,457,002 Hours
Protocols        IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
