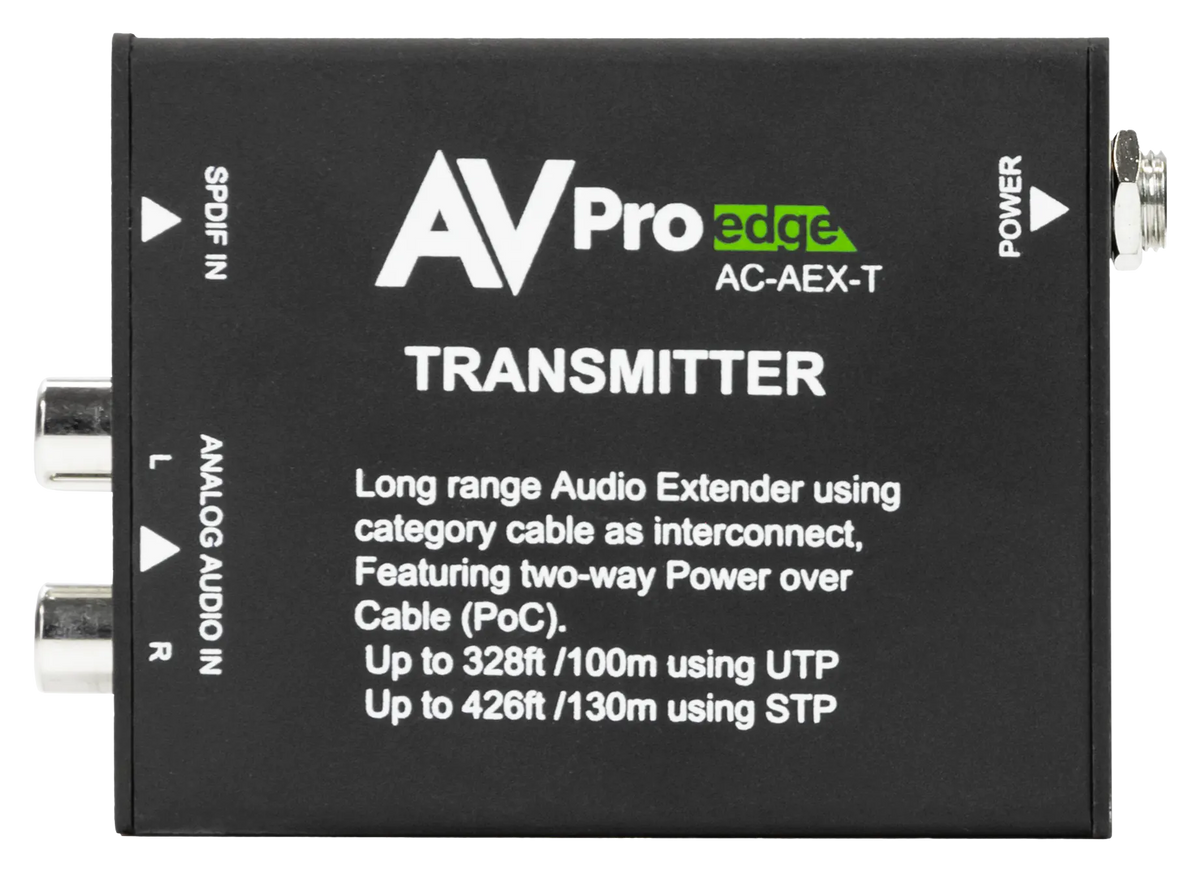

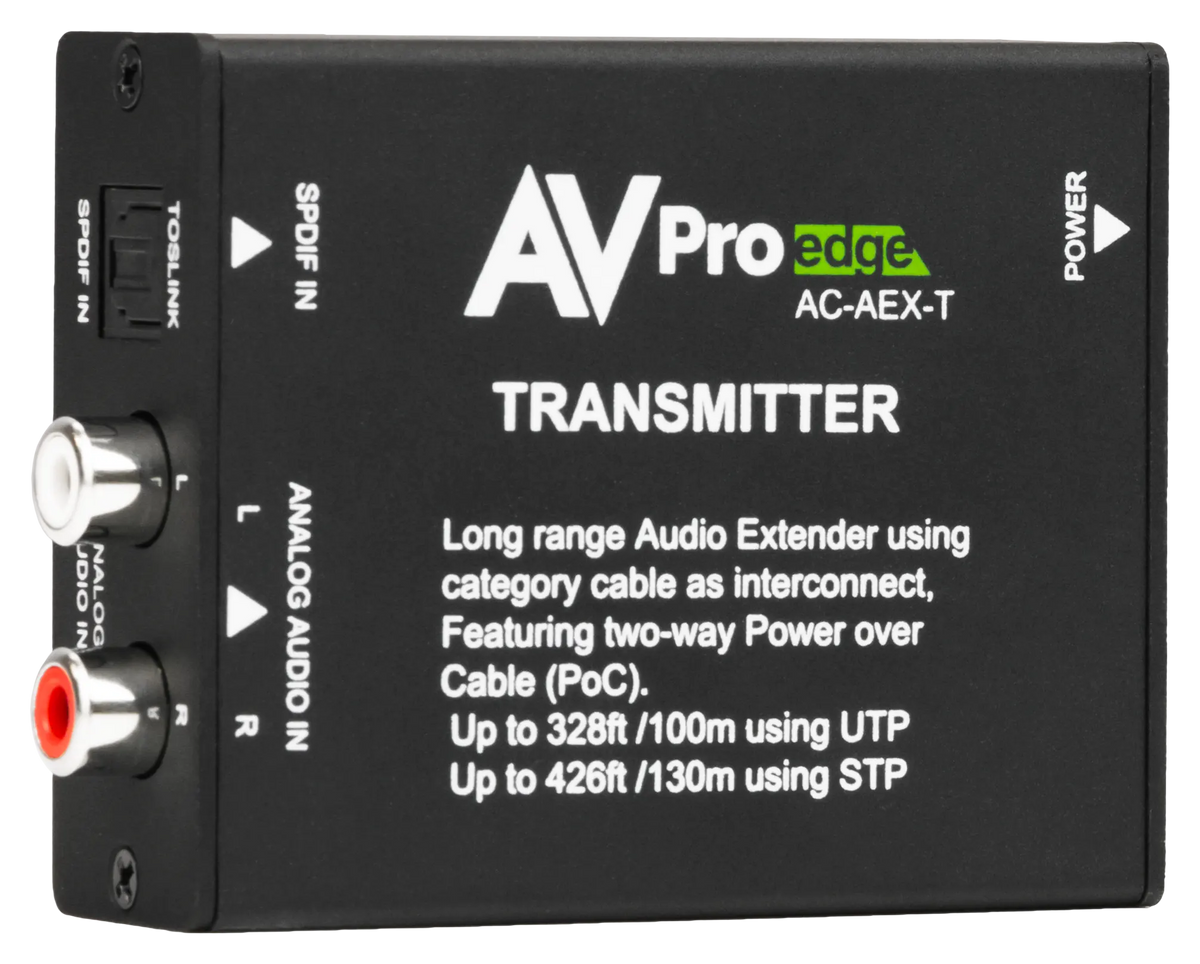

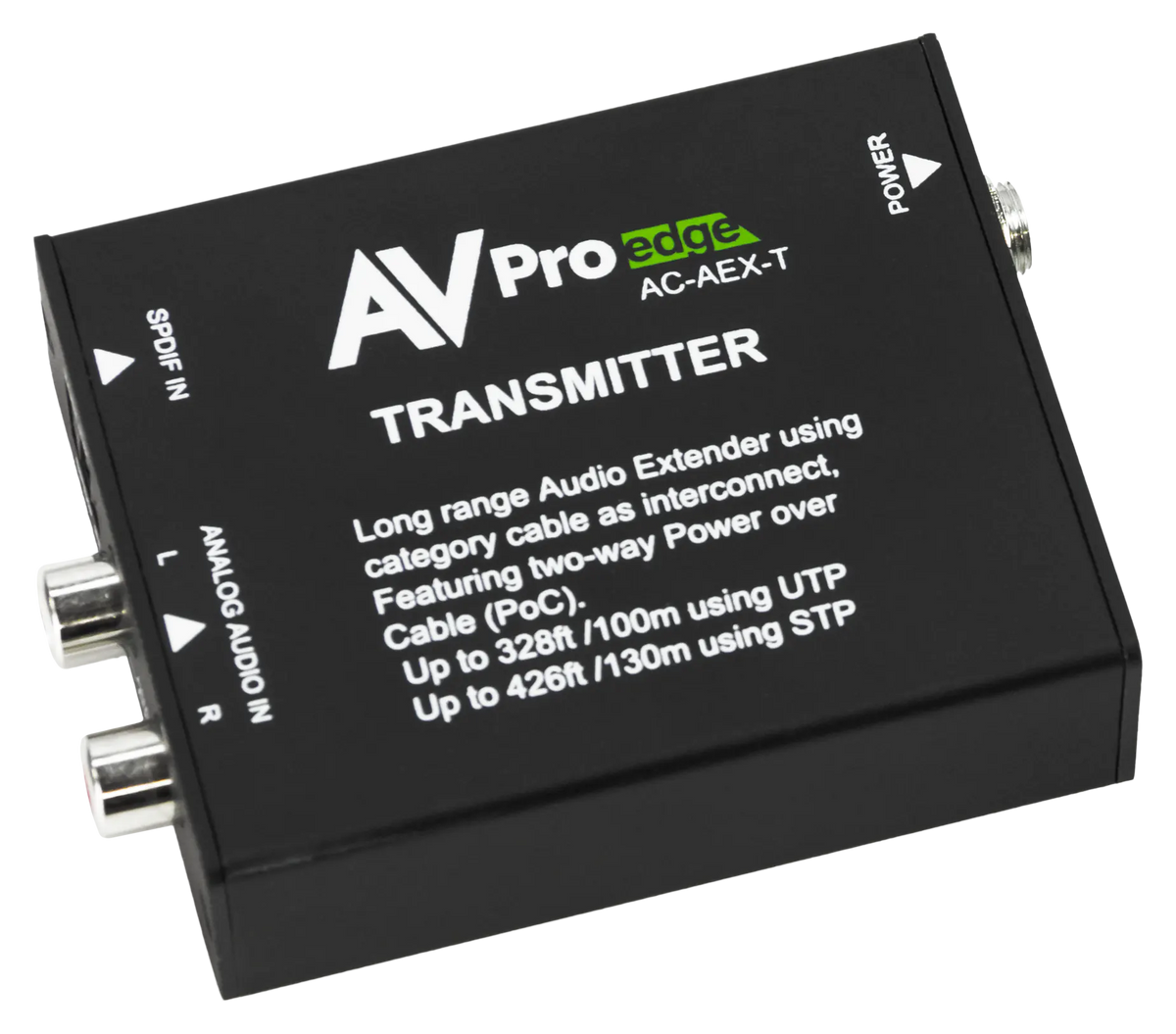

NAME        AC-AEX-T

DISTANCE
UTP (UNSHIELDED TWISTED PAIR)        100 METERS (328 FEET)
STP (SHIELDED TWISTED PAIR)        130 METERS (426 FEET)

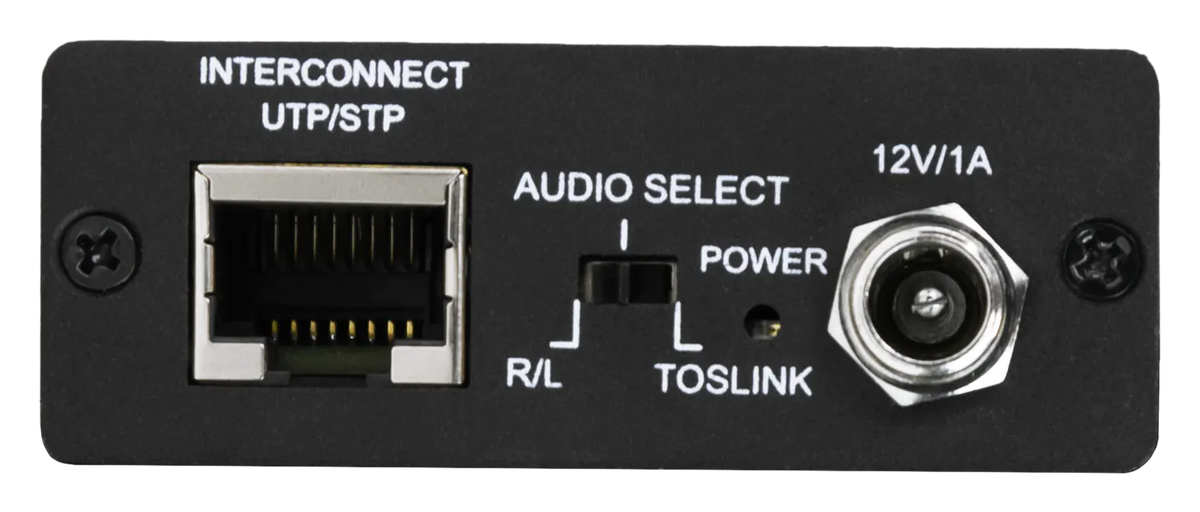

PORTS

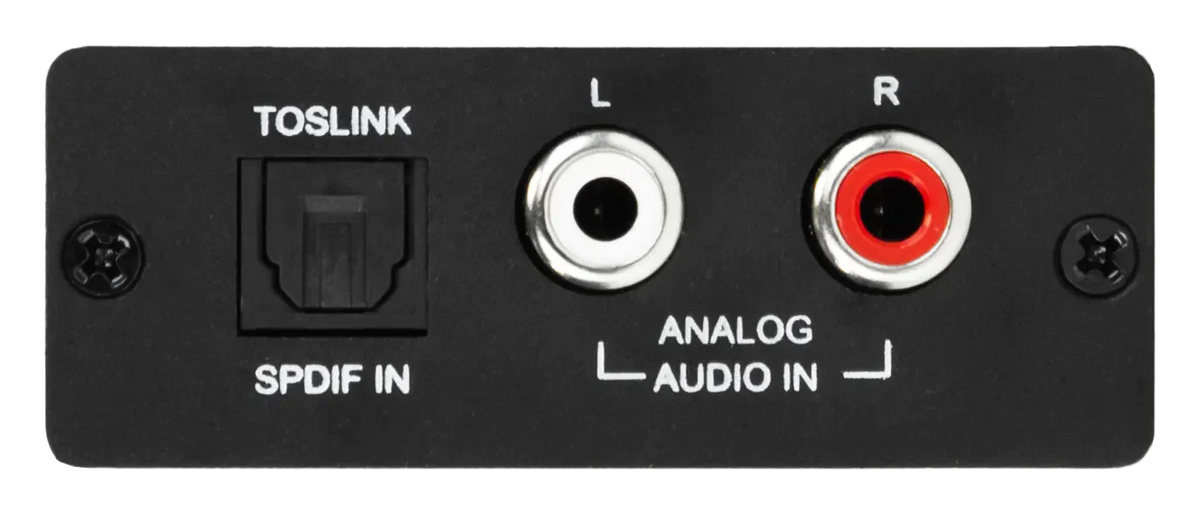

AUDIO INPUTS        1X OPTICAL, 1X ANALOG STEREO (L/R)
POWER        LOCKING BARREL PLUG
EXTENSION / INTERCONNECT        RJ45

AUDIO
INPUT FORMAT        LPCM 2 CH & DOLBY DIGITAL / DTS DIGITAL ES (OPTICAL)
INPUT SAMPLING RATES        32KHZ TO 96KHZ
INPUT IMPEDANCE        47KΩ
OUTPUT IMPEDANCE        600Ω

ENVIRONMENTAL
ESD PROTECTION        CONTACT: ±4KV | AIR: ±4KV

POWER
POWER CONSUMPTION (TOTAL)        3W MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ 0.8A | OUTPUT: DC 12V 2A (SOLD SEPARATELY)

DIMENSIONS
DIMENSIONS (UNIT H/D/W)        MM: 22.3 X 58 X 82 | INCH: 0.88 X 2.28 X 3.23
DIMENSIONS (PACKAGED H/D/W)        MM: 86 X 133 X 155 | INCH: 3.4 X 5.3 X 6.1
WEIGHT (UNIT)        0.19 LBS (0.09 KG)
WEIGHT (PACKAGED)        0.89 LBS (0.4 KG)
