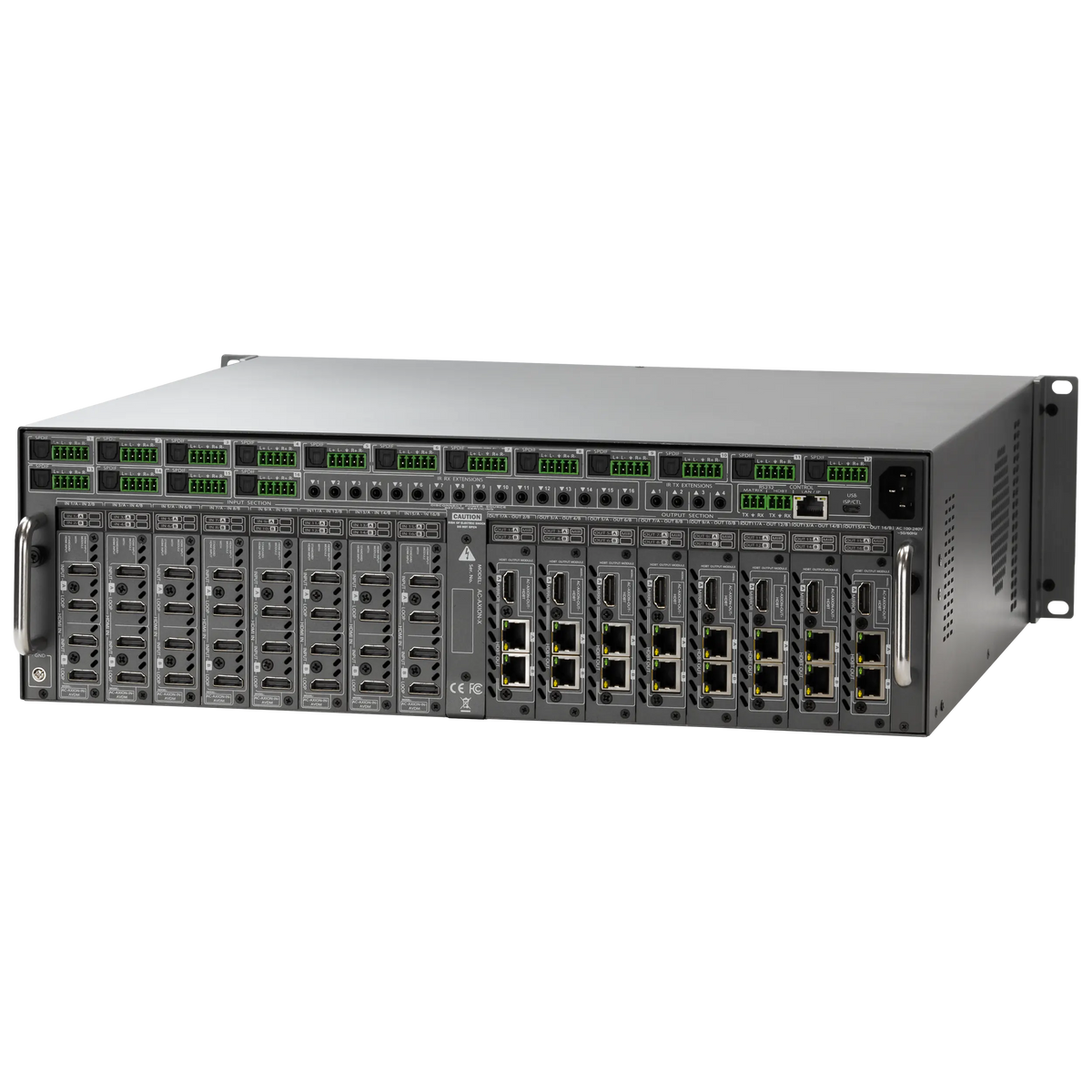

NAME        AC-AXION-X

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (TOSLINK)        PCM 2 CH, LPCM 6 CH, LPCM 7 CH, DOLBY DIGITAL, DOLBY DIGITAL PLUS
AUDIO FORMATS SUPPORTED (2CH PORT)        PCM 2 CH
AUDIO EXTRACTION LOCATION        BIND TO INPUT, BIND TO OUTPUT, OR MATRIX (INDEPENDENT)
AUDIO DELAY (PER OUTPUT)        UP TO 630MS

DISTANCE

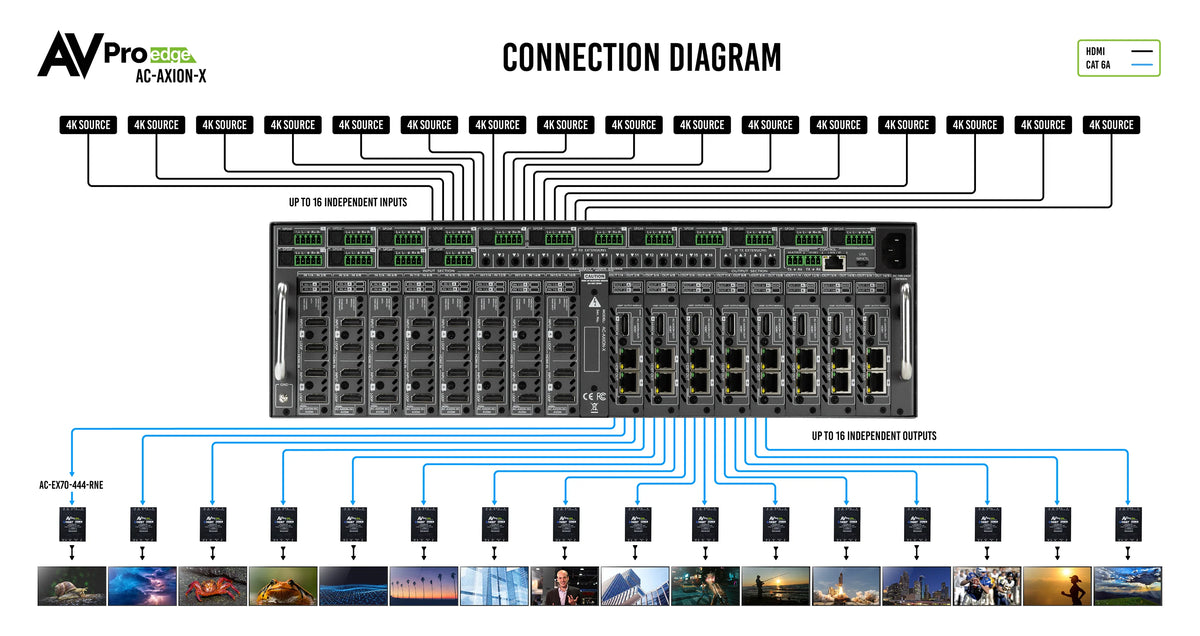

HDBASET OUT (4K60 4:4:4 & HDR)        70 METERS / 230 FEET (CAT 6A) (W/ AC-EX70-444-RNE)
HDBASET OUT (1080P)        100 METERS / 330 FEET (CAT 6A) (W/ AC-EX70-444-RNE)
HDBASET OUT (4K60 4:2:0)        40 METERS / 131 FEET (CAT 6A) (W/ AC-EX70-UHD-R)
HDBASET OUT (1080P ALT)        70 METERS / 230 FEET (CAT 6A) (W/ AC-EX70-UHD-R)
HDMI IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH HDMI        18 GBPS UNCOMPRESSED
BANDWIDTH HDBASET        18 GBPS (USES ICT ABOVE 10.2 GBPS SIGNALS)
HDCP        HDCP 2.3 AND EARLIER
POH FOR RECEIVERS        YES (ALL OUTPUTS)

CONTROL
PORTS        LAN, RS232, IR, MICRO USB
DRIVERS        C4, RTI, ELAN, CRESTRON, URC (SEE DRIVERS PAGE)
LAN WEB OS        YES

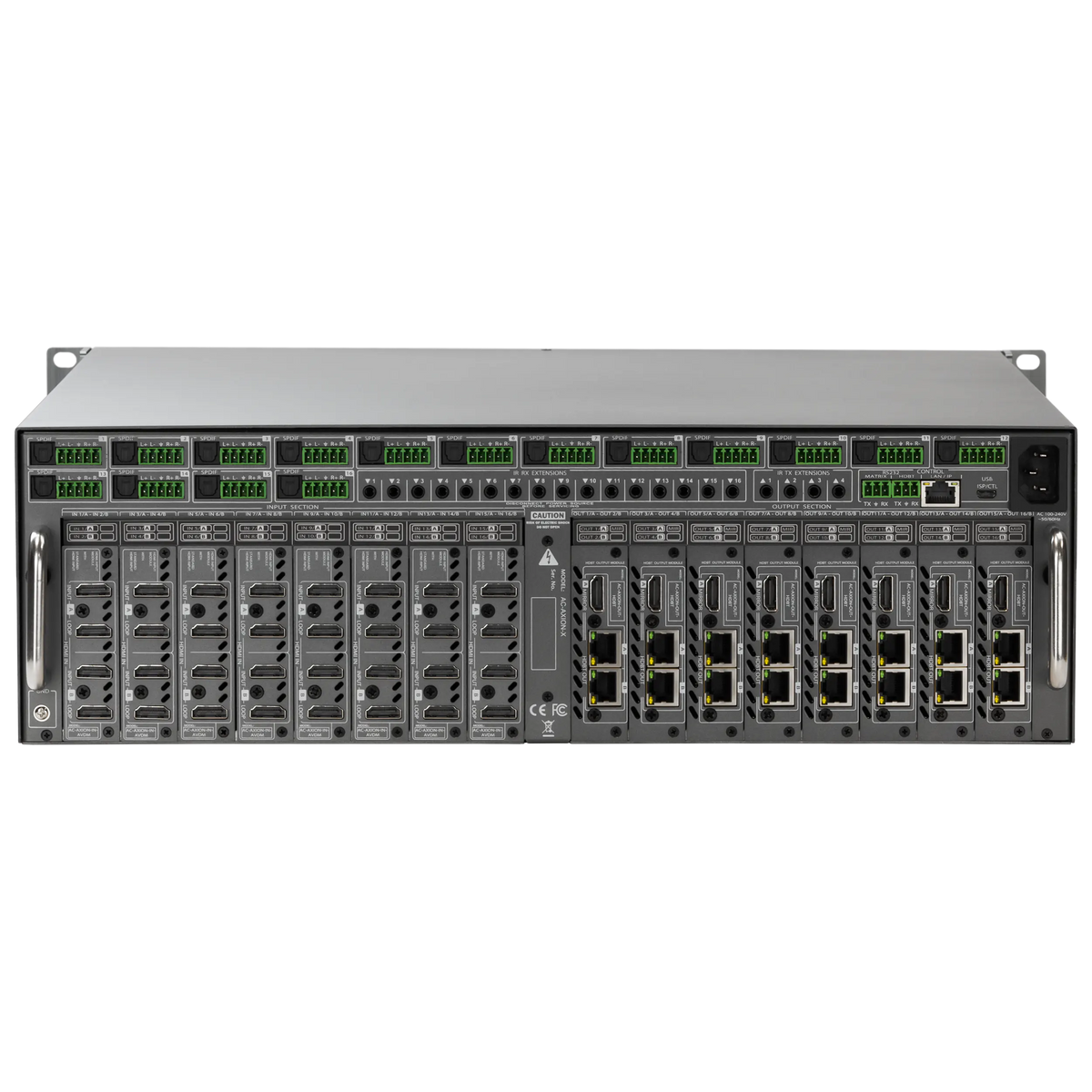

PORTS
HDMI        TYPE A

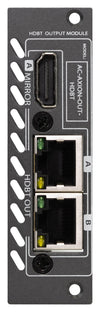

HDBASET        RJ45 W/ POH FOR HDBASET RECEIVERS
LAN        RJ45 W/ WEB INTERFACE / CONTROL
AUDIO (EXTRACTED DIGITAL)        TOSLINK
AUDIO (EXTRACTED ANALOG)        5 PIN TERMINAL BLOCK (BALANCED)
IR RX        3.5MM STEREO (3 CONDUCTOR)
RS232        3 PIN TERMINAL BLOCK

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        56W MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 48V 2A

DIMENSIONS
DIMENSIONS (UNIT H/D/W)        MM: 134.87 X 406.4 X 441.45 | INCH: 5.31 X 16 X 17.38
DIMENSIONS (PACKAGED H/D/W)        MM: 241.3 X 571.5 X 597 | INCH: 9.5 X 22.5 X 23.5
RACK UNITS        3U
WEIGHT (UNIT - EMPTY CHASSIS)        26.6 LBS (12.07 KG)
WEIGHT (PACKAGED - EMPTY CHASSIS)        33 LBS (14.97 KG)
