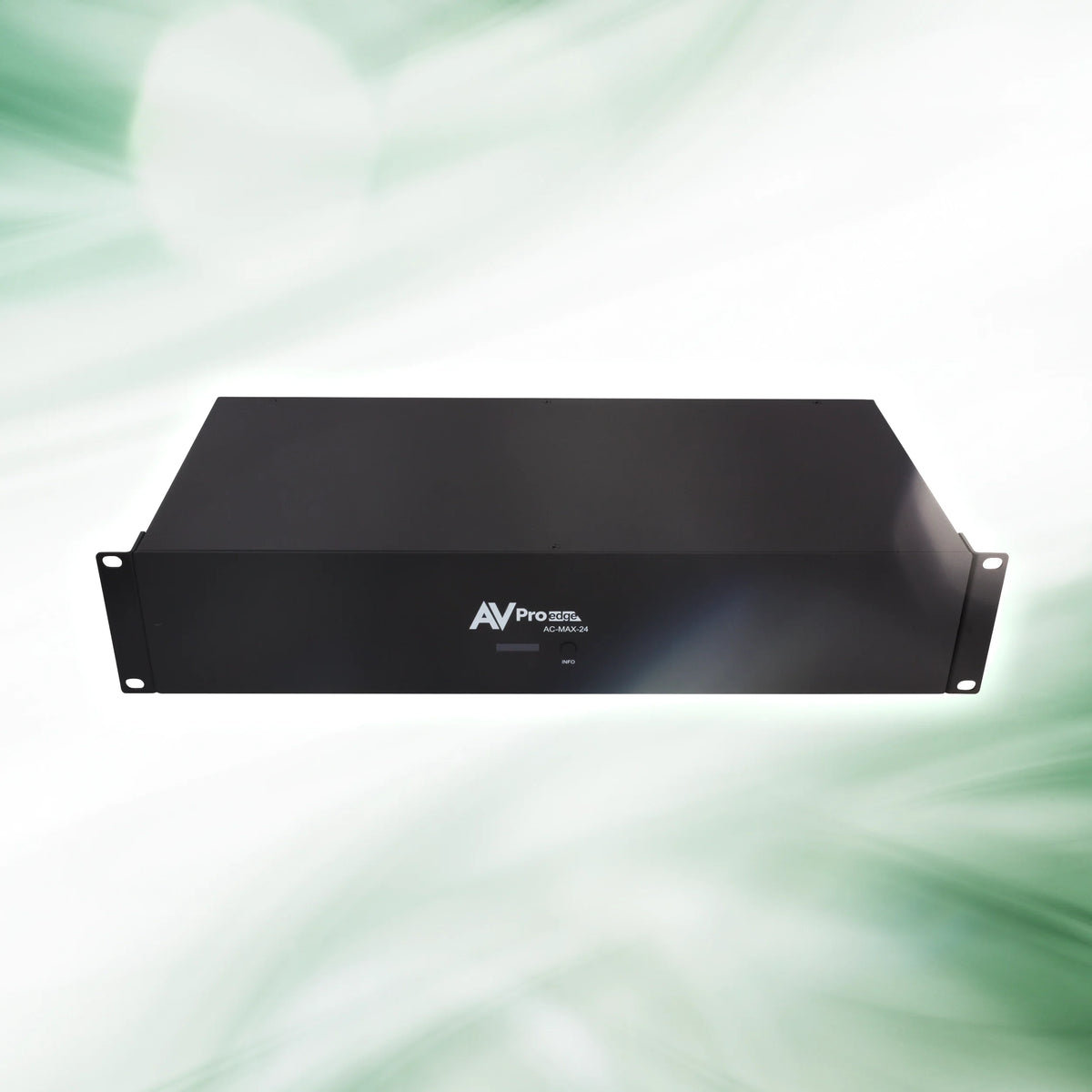

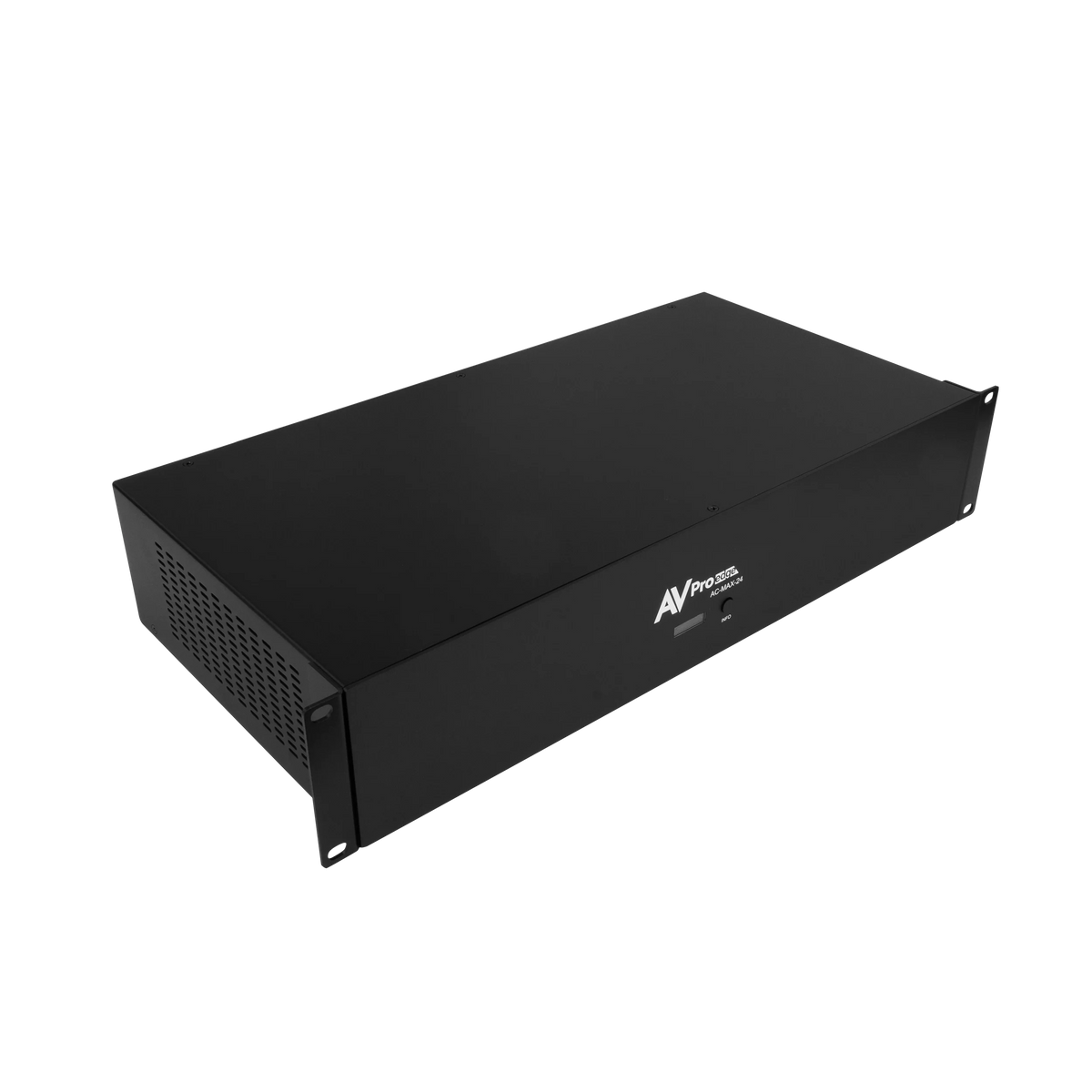

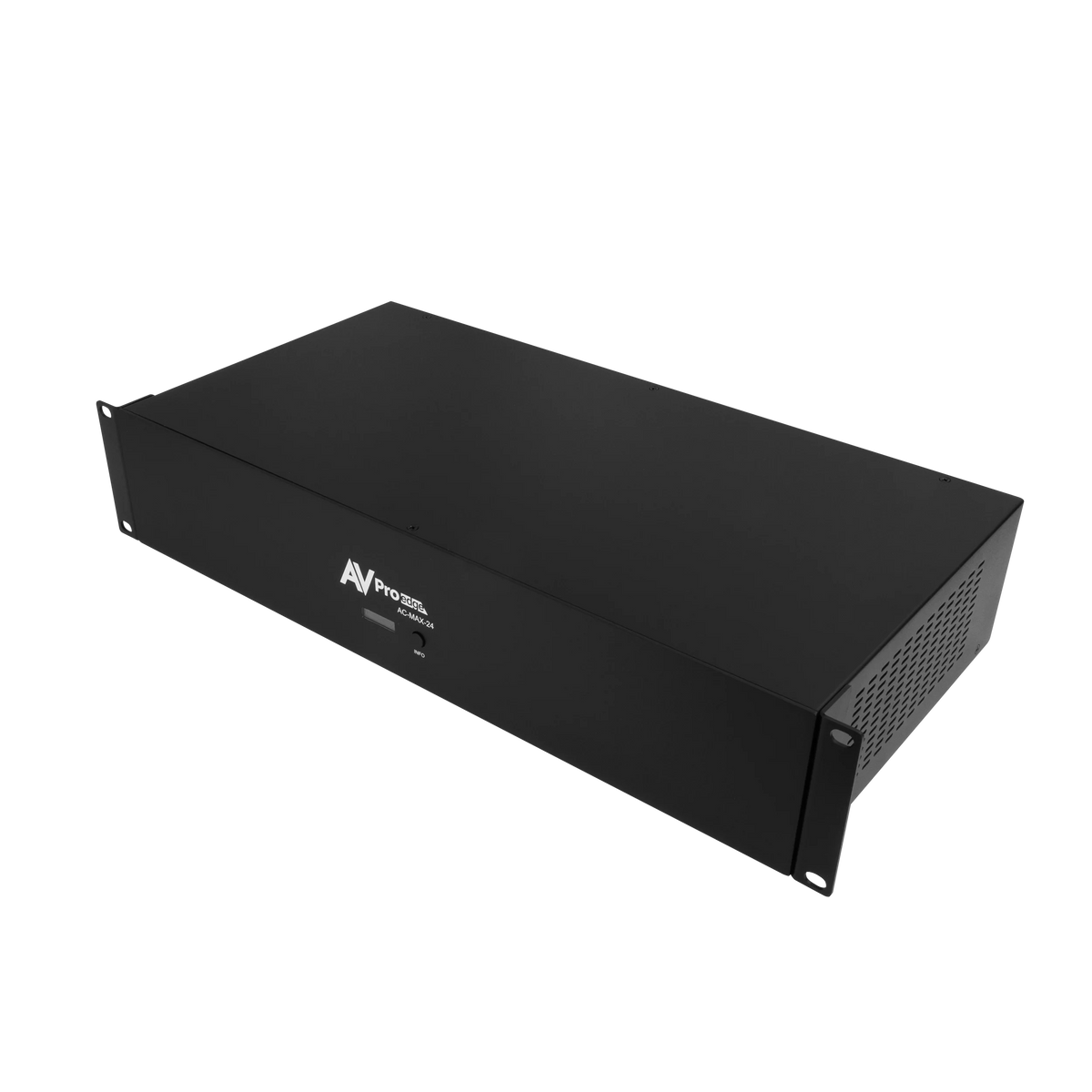

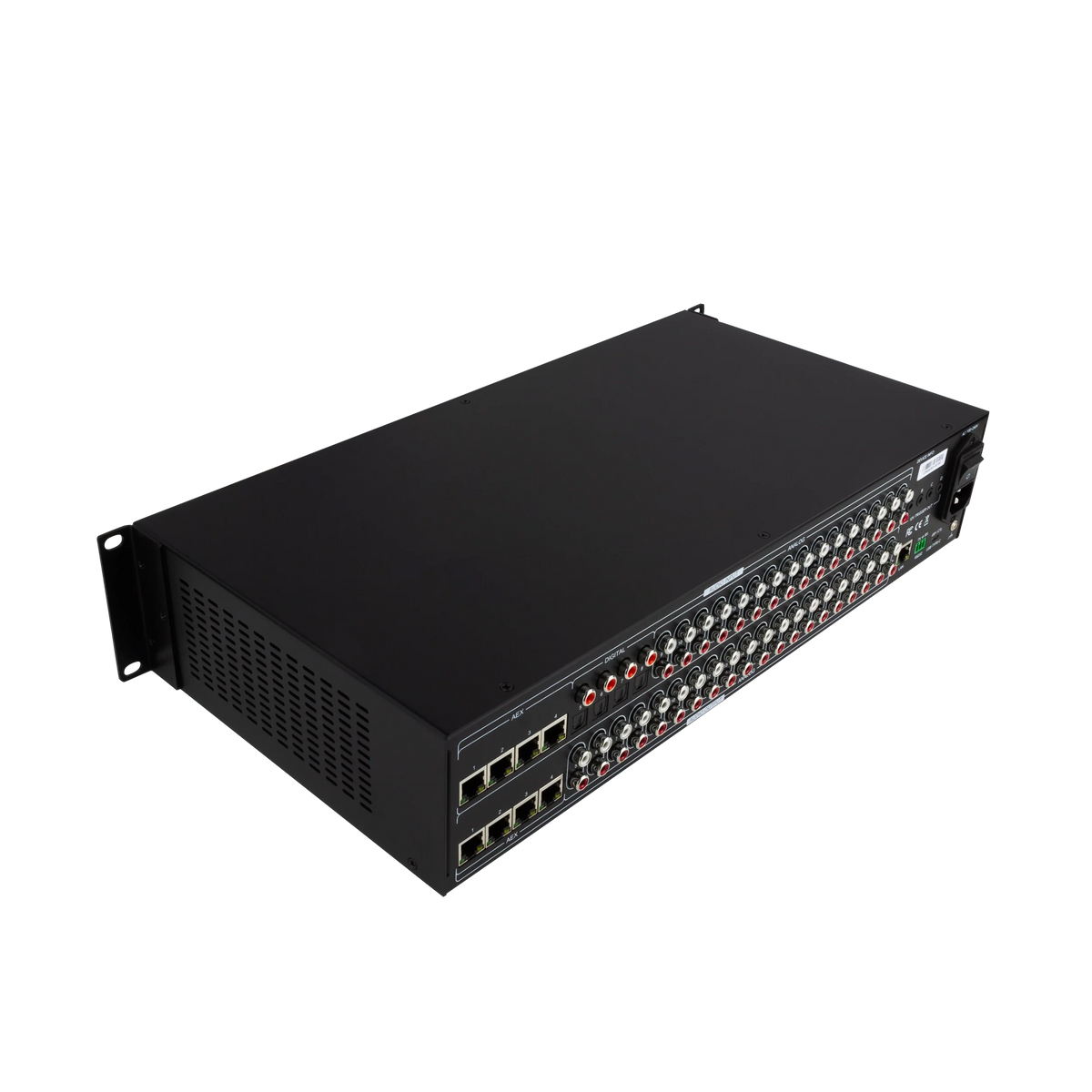

NAME        AC-MAX-24

AUDIO
FREQUENCY RESPONSE        20 HZ TO 20 KHZ
ANALOG INPUT VOLTAGE        1.63 VRMS, 4.6 VP-P
ANALOG OUTPUT VOLTAGE        1.63 VRMS, 4.6 VP-P
DIGITAL        2 CHANNEL PCM
SUPPORTED SAMPLE RATES (KHZ)        32, 44.1, 48, 88.2, 96, 176, 192 KHZ
LATENCY        ≤60 MILLISECONDS
MUTE        AVAILABLE ON ALL OUTPUTS

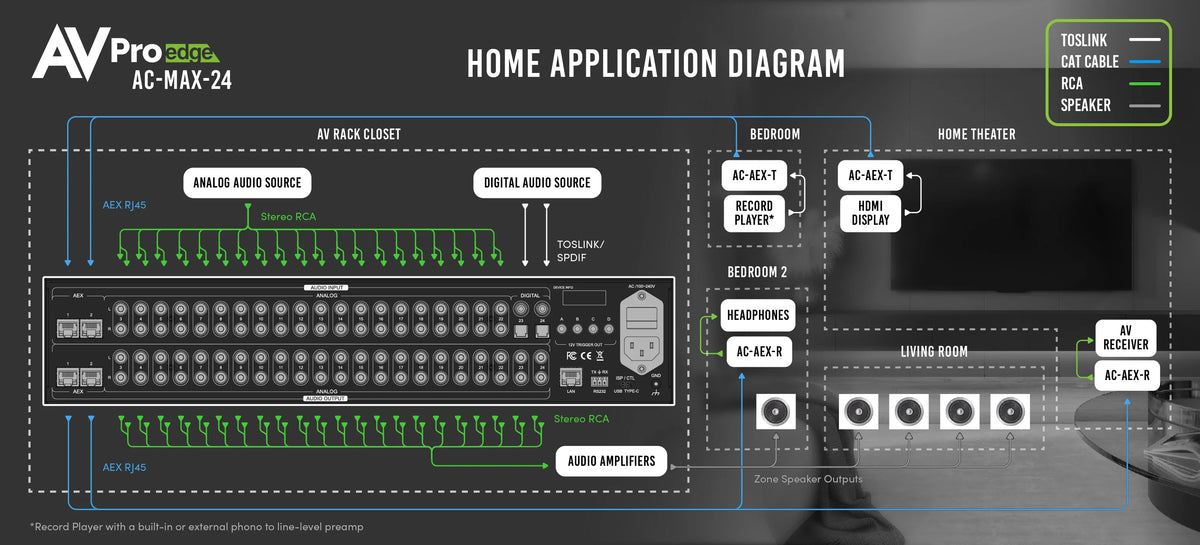

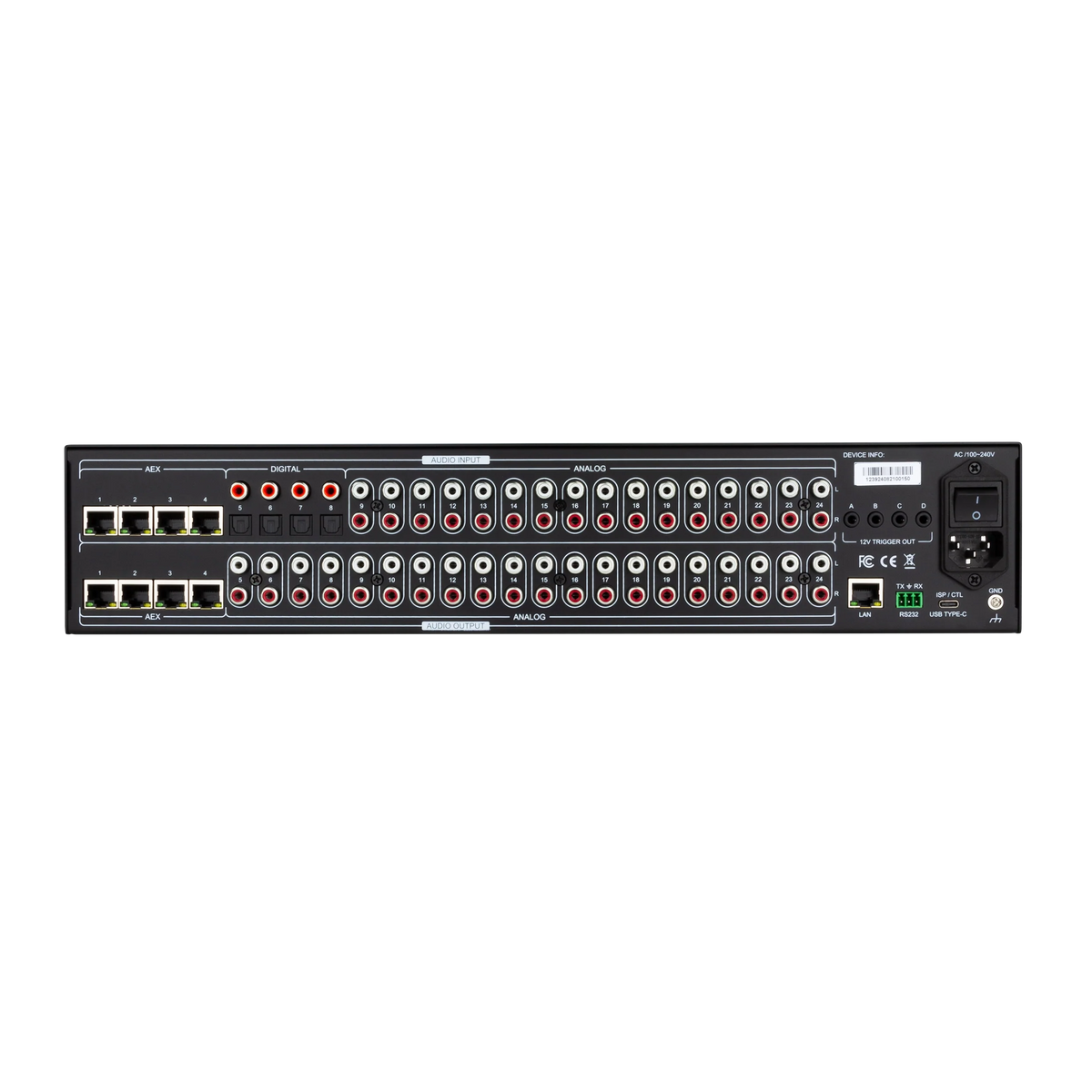

AUDIO INPUTS
AEX AUDIO        4
RCA        16
DIGITAL TOSLINK        4
DIGITAL COAXIAL        4

AUDIO OUTPUTS
AEX AUDIO        4
RCA        20

CONTROL
INTERFACES        RS-232, IP/LAN

ADDITIONAL CONNECTIONS
IN-SYSTEM PROGRAMMING        USB TYPE C
12V DC TRIGGER OUTPUT        4

POWER
TOTAL POWER CONSUMPTION        50W MAX
AC POWER        100-240 VAC

DIMENSIONS
DIMENSIONS (UNIT H/W/D)        MM: 88 X 440 X 234.95 | INCH: 3.5 X 17.5 X 9.25
DIMENSIONS (PACKAGED H/W/D)        MM: 172 X 578 X 375 | INCH: 6.75 X 22.75 X 15
WEIGHT (UNIT)        8.7 LBS (3.95 KG)
WEIGHT (PACKAGED)        11.9 LBS (5.4 KG)
RACK SPACE        2U
