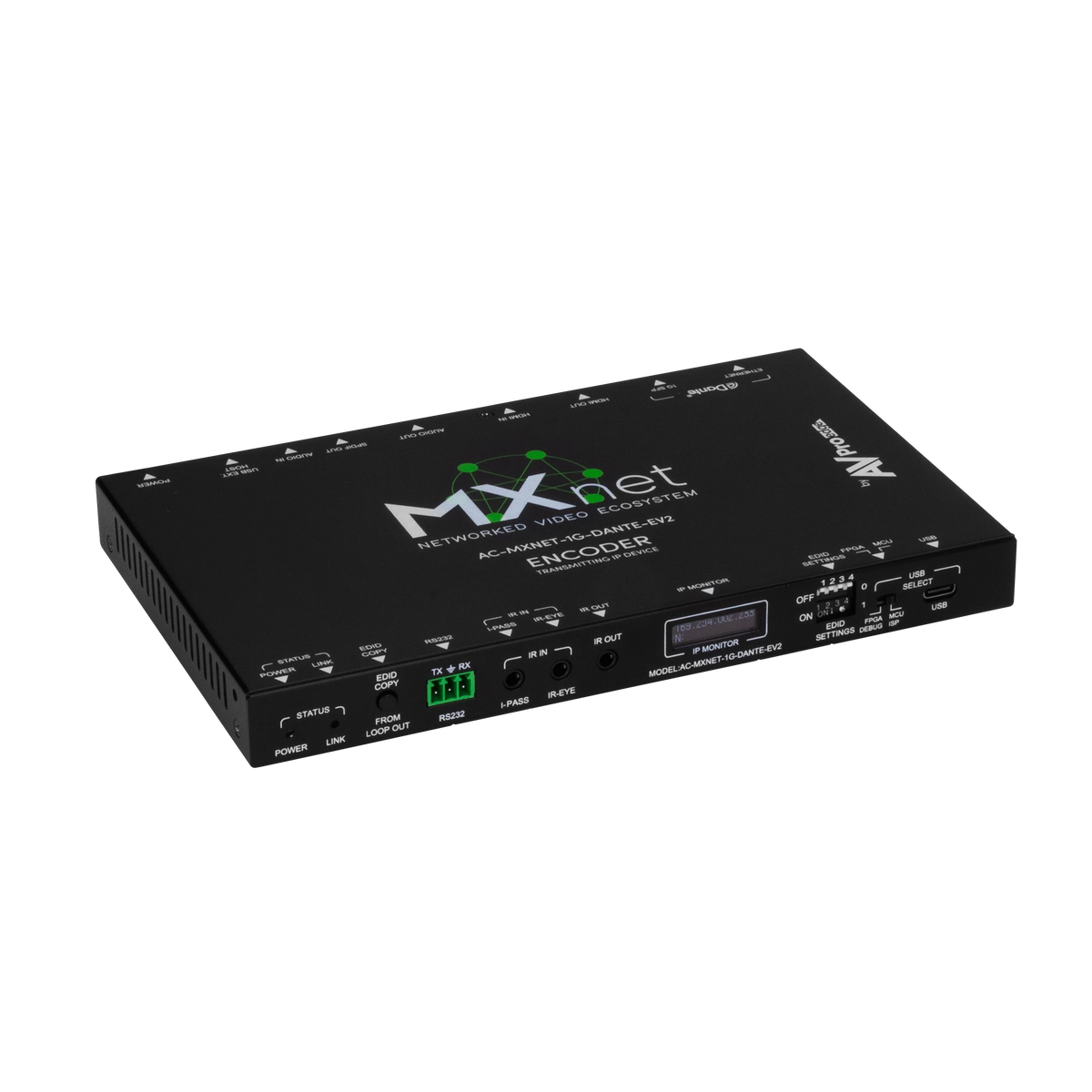

Name        AC-MXNET-1G-DANTE-EV2

Encoding
Video Codec        Proprietary Codec based on M-JPEG
Audio Codec        Proprietary Codec, Dante
Latency        16ms@60Hz
Ultra Low Latency Mode        2–4ms@60Hz
Streaming Protocols        TCP, UDP, IP, IGMP-V2
Copy Protection        HDCP 2.2 and earlier

Video Input/Ingestion
Signal Type        DVI 1.0, HDMI 2.0b
Video Resolution        720p@50/60Hz; 1080p@24, 50 & 60Hz
                      4K@50/60Hz 4:4:4*; 4K@30Hz 4:4:4
                      4K@60Hz 4:2:0 / 4:2:2; 4K@24Hz 4:2:0 / 4:2:2
                      [Ultrawide Support]
Chroma Subsampling        4:4:4, 4:2:2, 4:2:0, RGB
Bit Depth per Color        1080p (8-, 10-, 12-bit), 4K (8-, 10-, 12-bit)
Visually Lossless        4096×2160p@60Hz (8-bit) 4:4:4 / RGB
                        3840×2160p@60Hz (12-bit) 4:2:2 Dolby Vision
                        3840×2160p@60Hz (10-bit) 4:2:2 HDR10/HLG
                        1920×1080p@60Hz (12-bit)

Audio
Audio Format (end to end)        PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel
                                Dolby Digital Plus, DTS 5.1 Channel, DTS–ES
                                DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos
Audio Format (HDMI Loopout)        Same as End-to-End
Embedded Audio        Stereo Analog Audio (3.5 mm jack)
De-Embedded Audio        Balanced Stereo Analog Audio (5-pin phoenix)

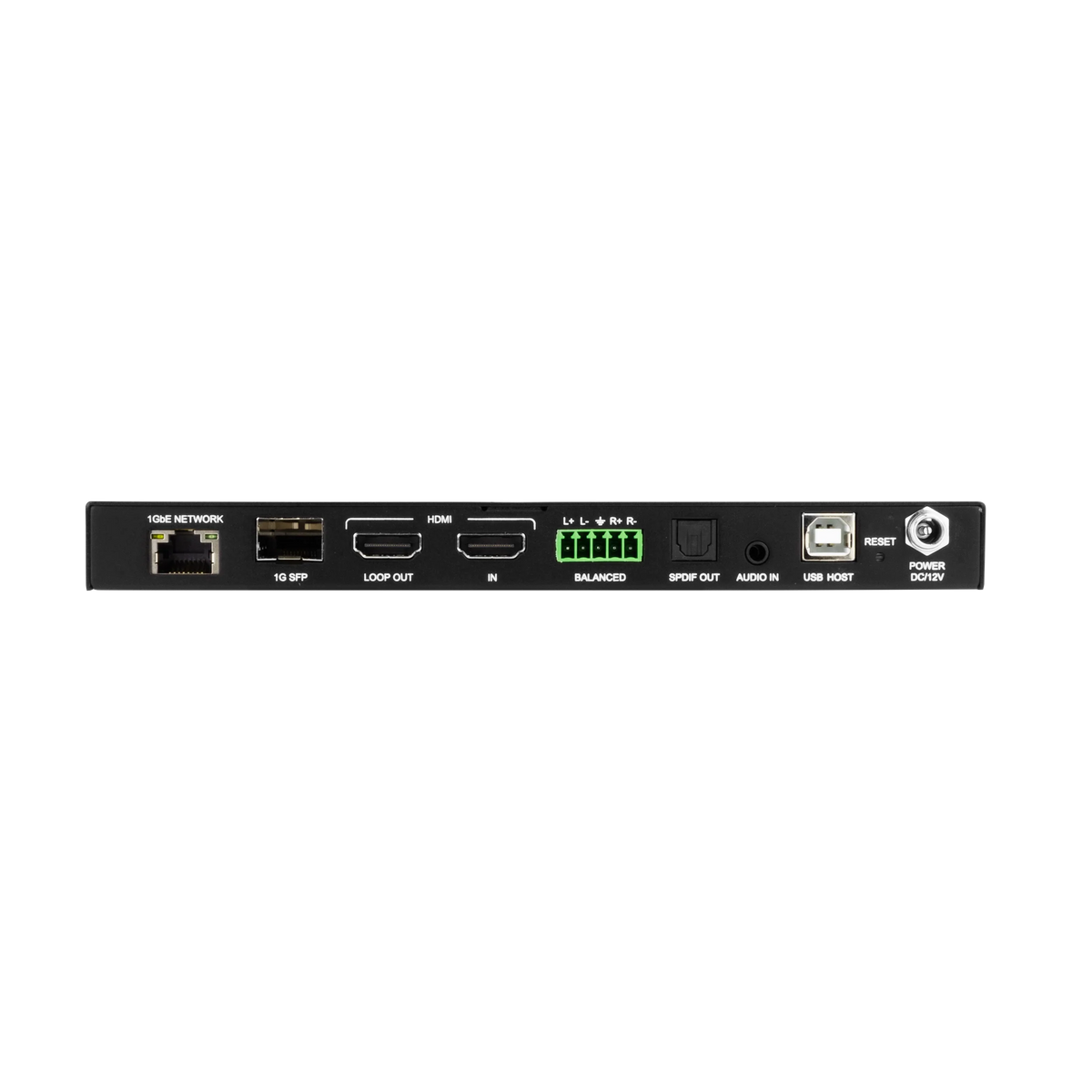

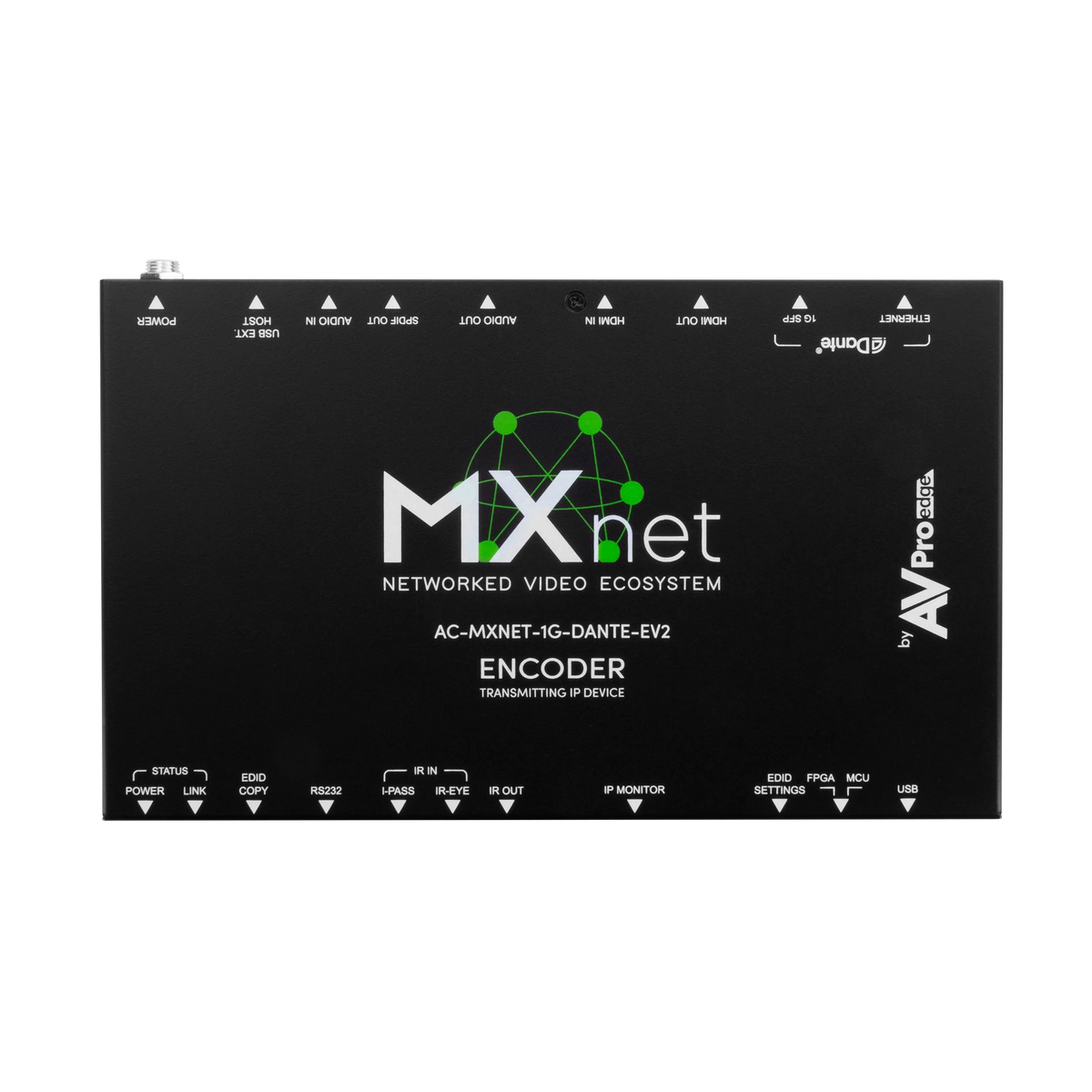

Ports
Ethernet        (1) × female RJ45, PoE
SFP        (1) × SFP Slot
HDMI        (2) × HDMI Type A 19-pin, female (1 input, 1 loop out)
Audio        (1) × 5-pin Terminal Block, Balanced L/R Audio out
             (1) × Toslink Audio Out (Future Audio Return Support Only)
             (1) × 3.5 mm mini stereo jack, Audio in
IR        (3) × 3.5 mm mini-stereo jack (IR-Pass, IR-EYE, IR-Out)
RS232        (1) × 3-pin Terminal Block
USB        (1) × USB 2.0 Type-B (USB extension & KVM)
           (1) × USB Type-C (MXnet service)

Distance
Ethernet        100 meters / 330 feet over CAT5e and above
SFP and Fiber        1000BASE-SX (MMF, 850nm, 550m, LC, DOM)
                     1000BASE-LX/LH (1310nm, 10km)

Environmental
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Operating Humidity        5–90% RH (No Condensation)

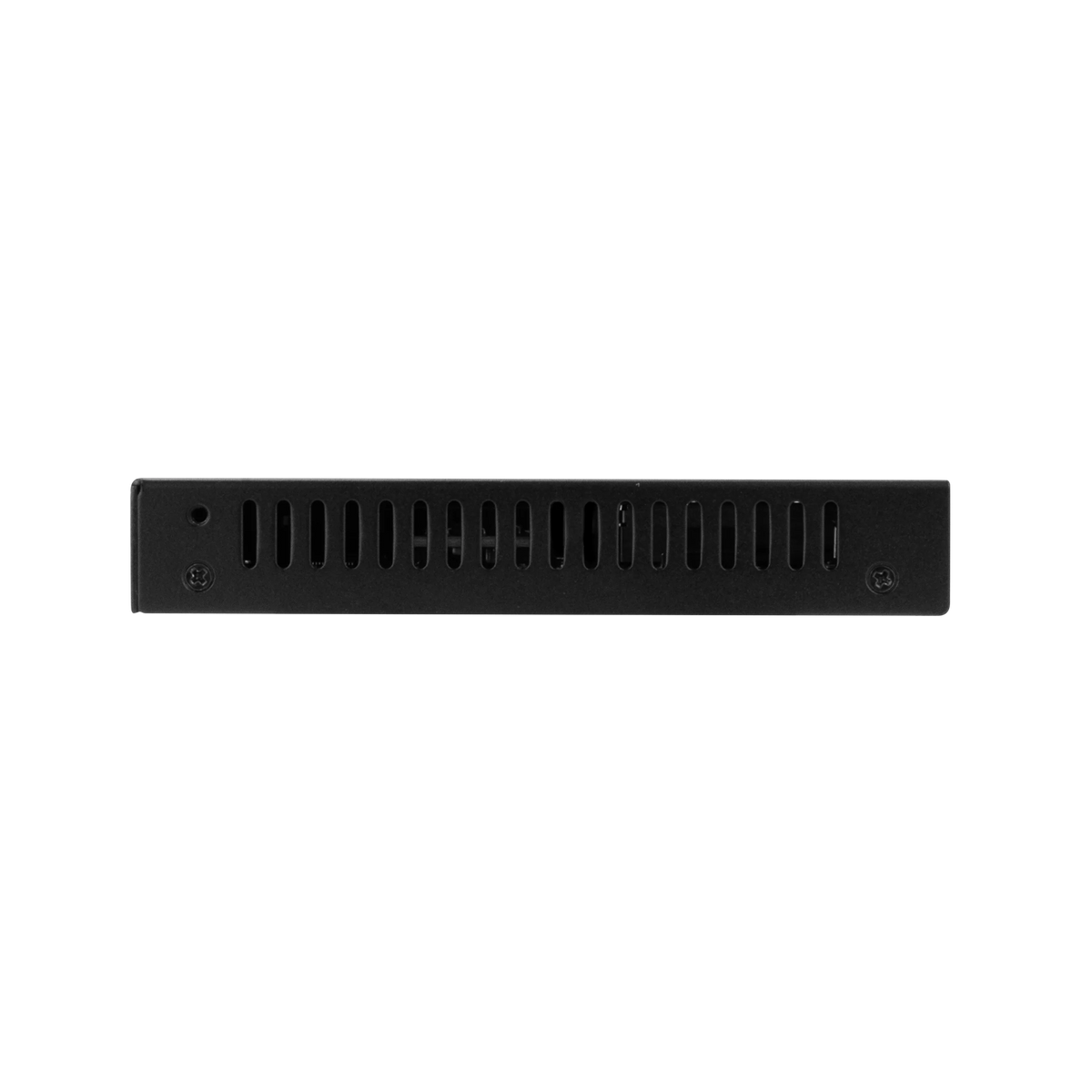

Cooling        Fanless Cooling
Acoustic Noise Level        0 dB

Power
Max Power Consumption        9.7W
PoE (Power over Ethernet)        IEEE 802.3af (15.4W)
Power Supply Unit        Input: AC 120–240V, 50/60Hz, 0.8A
                         Output: DC 12V, 2A

Dimensions
Mounting        Rack and furniture mount support
Dimensions (Unit Only)        199.14 × 119.86 × 19.84 mm
                             7.84 × 4.72 × 0.78 inch
Dimensions (Packaged)        309.88 × 180.09 × 54.10 mm
                            12.2 × 7.09 × 2.13 inch

Weight (Unit)        1.41 lbs / 0.64 kg
Weight (Packaged)        1.87 lbs / 0.85 kg

Regulatory        CE / FCC / UL
Product Warranty        10 Years
