Description

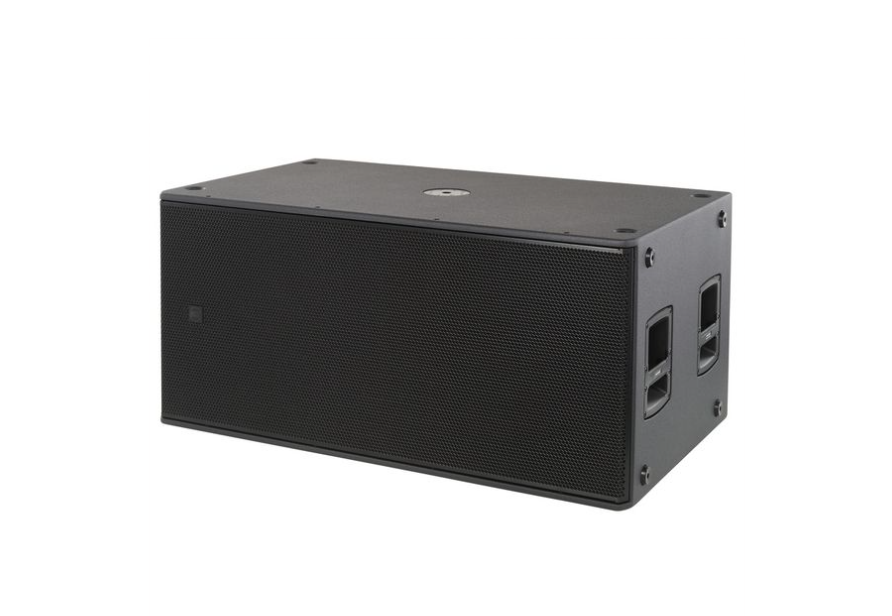

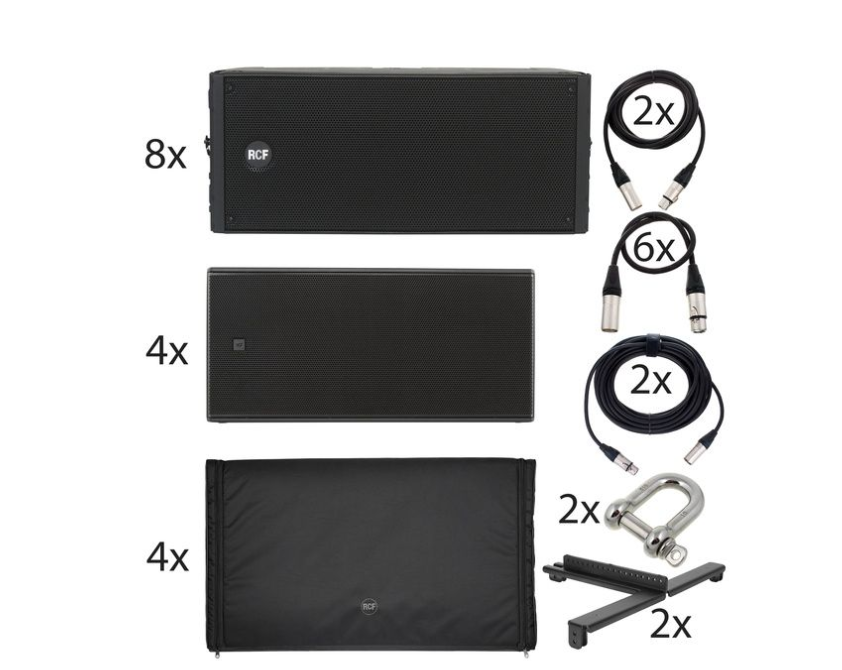

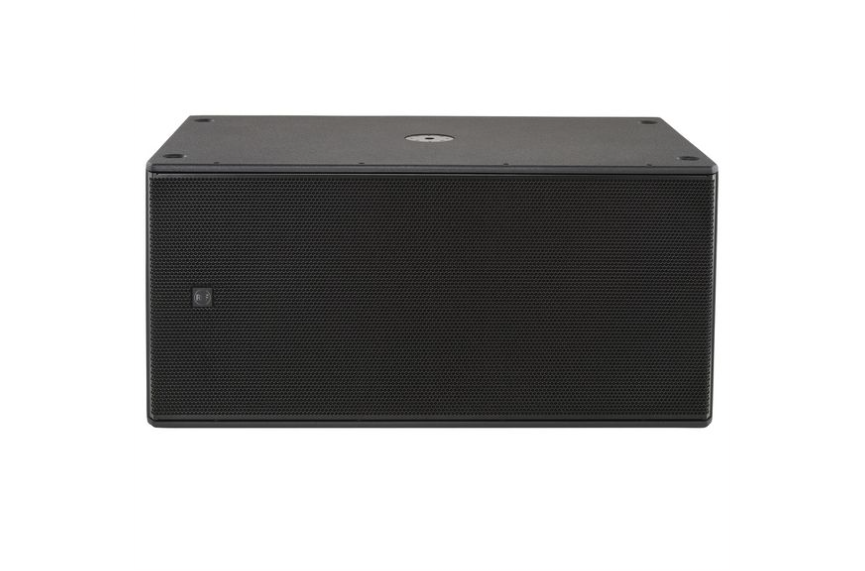

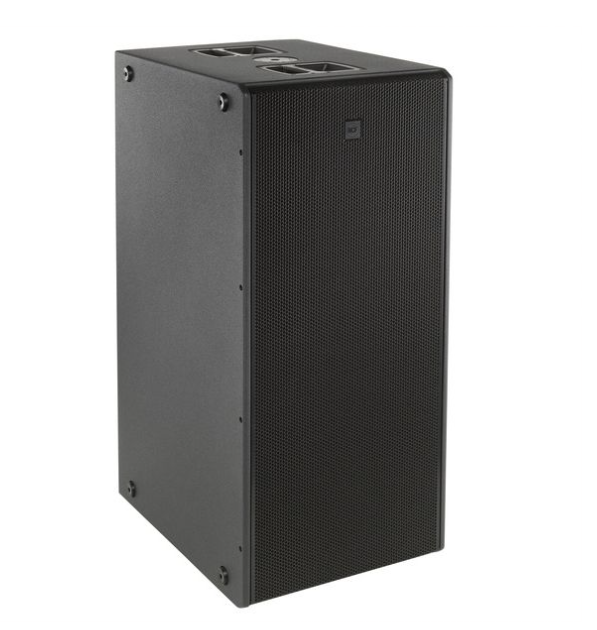

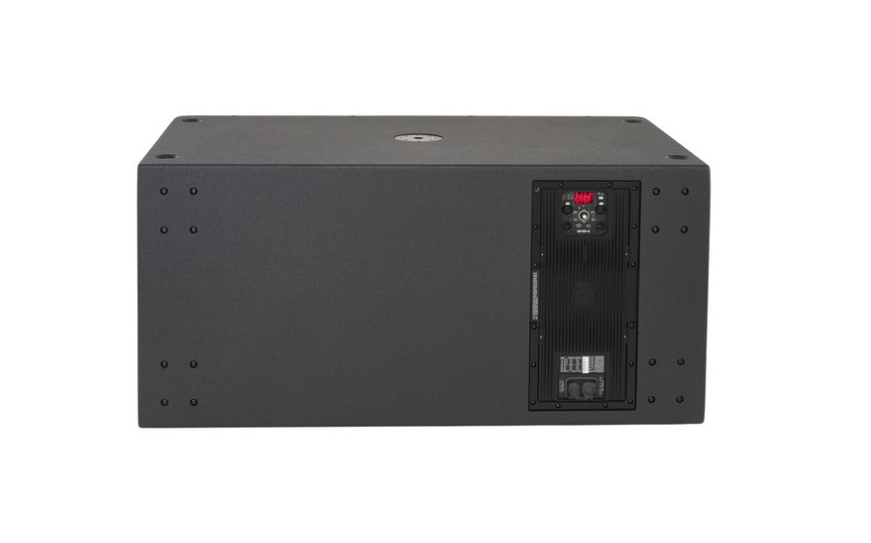

This RCF professional line array bundle delivers powerful low-frequency impact and precise, high-output sound coverage for demanding live sound applications. The system includes four RCF SUB 8008-AS active high-performance subwoofers, each featuring a bass-reflex design with dual 18″ RCF woofers, driven by a 2-channel Class-D amplifier delivering 2200 W RMS (4400 W peak). With a deep 30–120 Hz frequency response, a maximum SPL of 137 dB, selectable crossover and cardioid presets, soft limiting, convection cooling, and rugged multiplex enclosures with scratch-resistant polyurea coating, these subwoofers ensure reliable, controlled bass performance. IP-certified powerCON TRUE1 connectivity, XLR inputs and outputs, M20 mounting threads, and compatibility with optional Blue Wheels enhance flexibility for touring and installations.

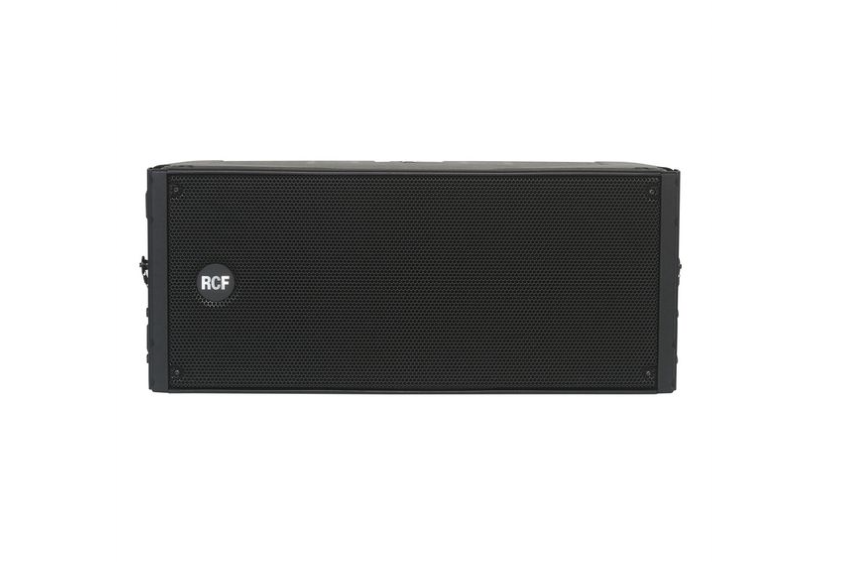

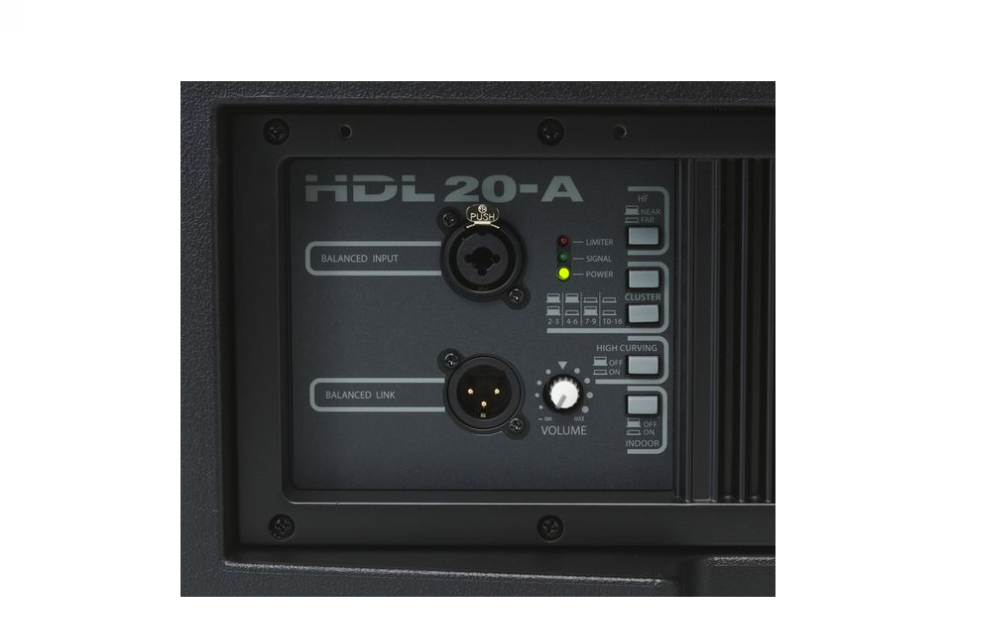

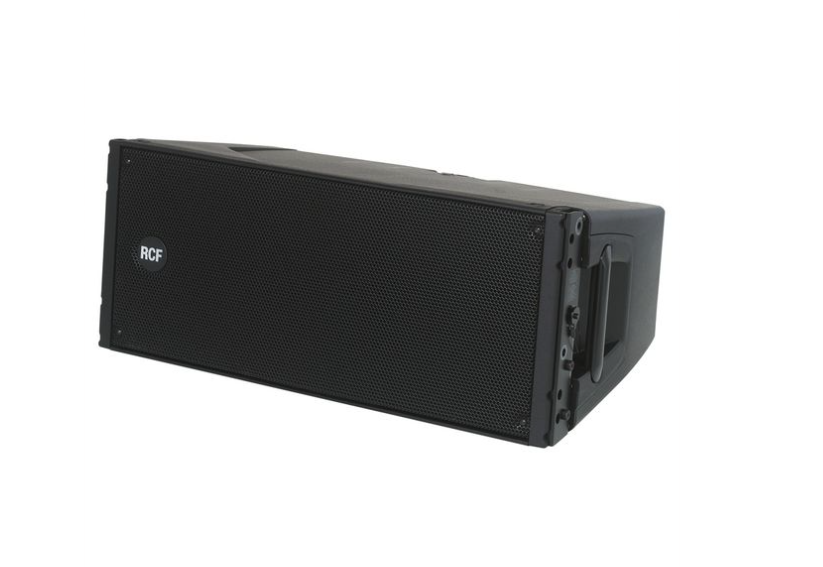

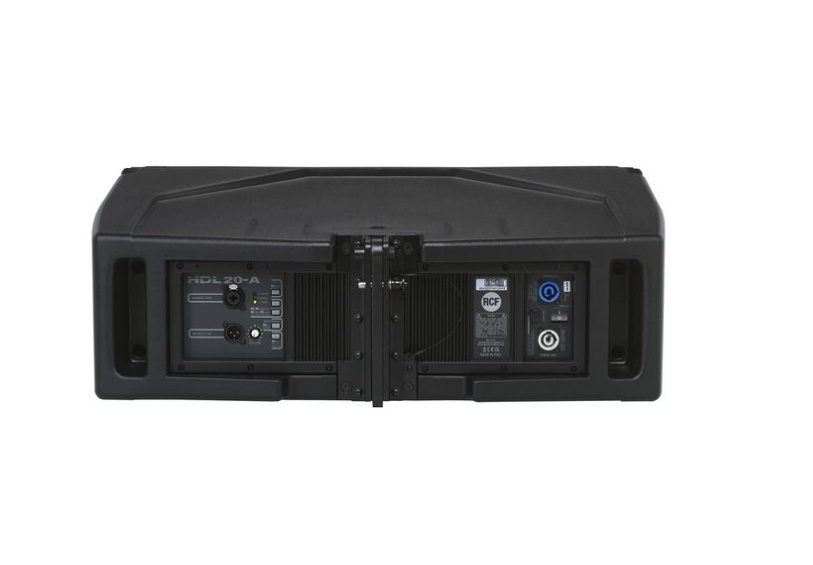

Complementing the low end are eight RCF HDL 20-A line array modules, each equipped with dual 10″ woofers and a 2″ high-frequency compression driver, digitally bi-amped with integrated DSP delivering 700 W RMS (1400 W program) and up to 135 dB SPL across a 55 Hz to 20 kHz frequency range. With a 100° x 15° dispersion per module, adjustable splay angles from 0° to 15°, cluster size and HF correction options, and support for tripod mounting or flown configurations, these modules provide consistent and accurate audience coverage.

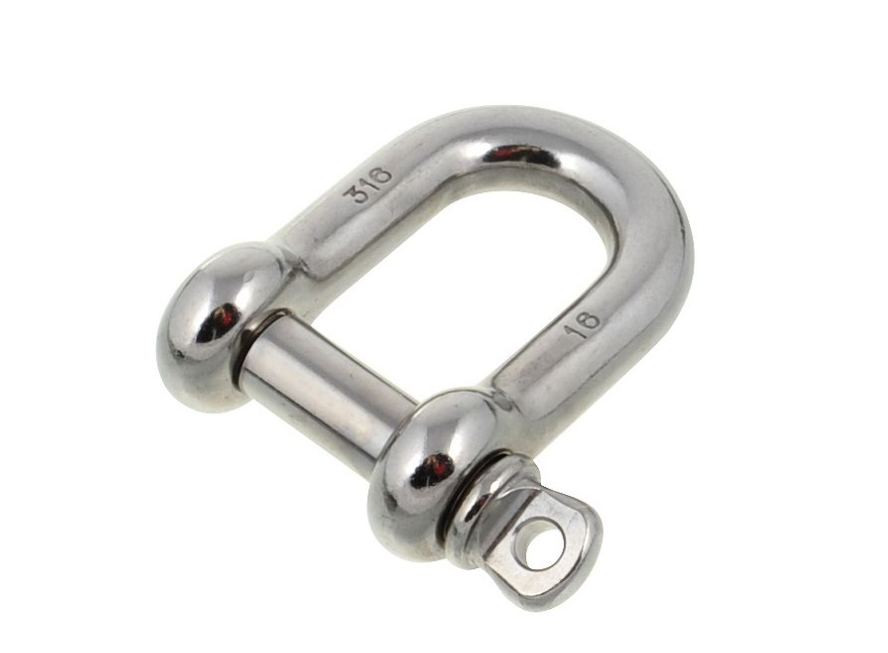

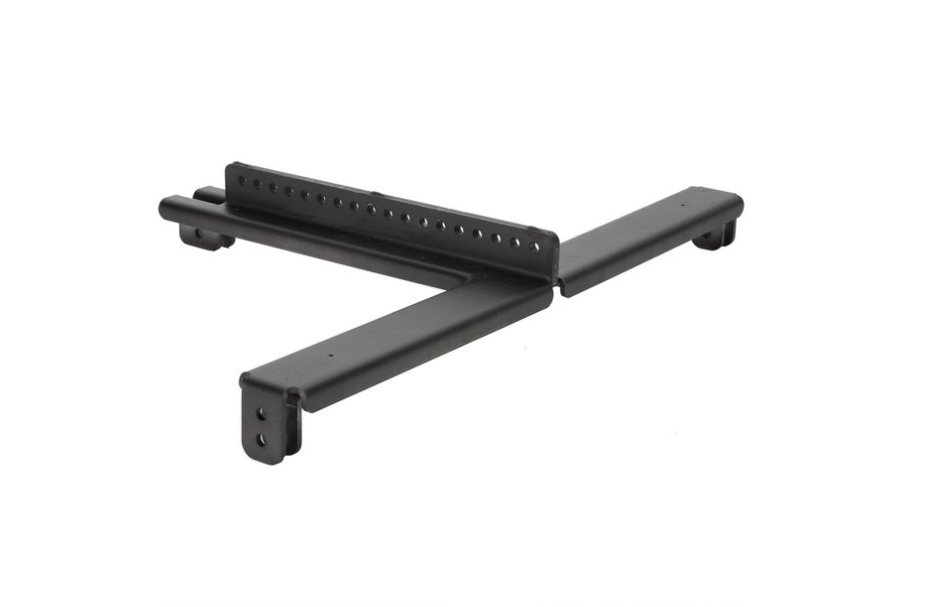

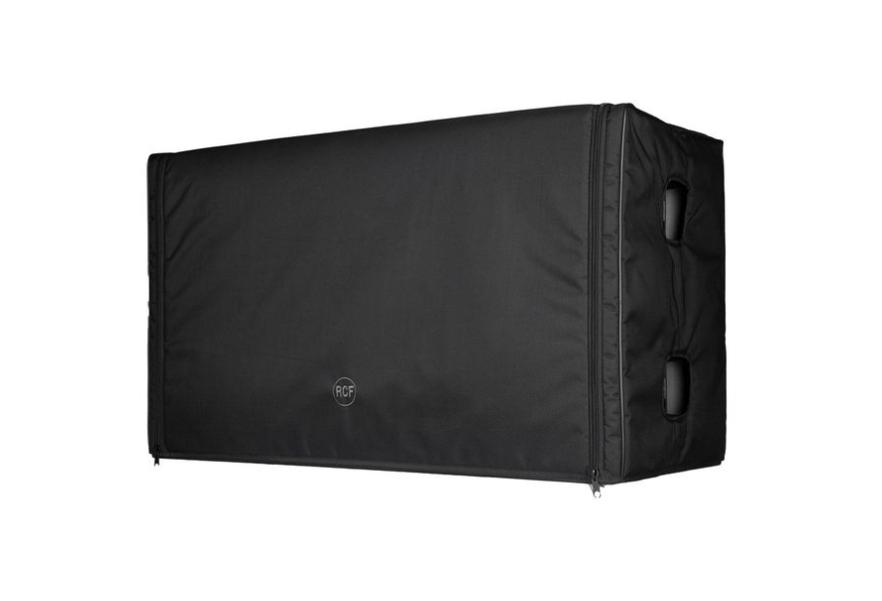

The bundle is completed with RCF HDL 20 Fly Bar Lite frames for safe suspension, protective padded covers for the SUB 8008-AS, high-quality Pro Snake XLR microphone cables in multiple lengths, and heavy-duty Stairville 2.75-ton stainless steel shackles for secure rigging. Finished in black, this turnkey RCF system is ideal for touring, rental companies, concerts, and professional event sound setups requiring power, reliability, and precision.
