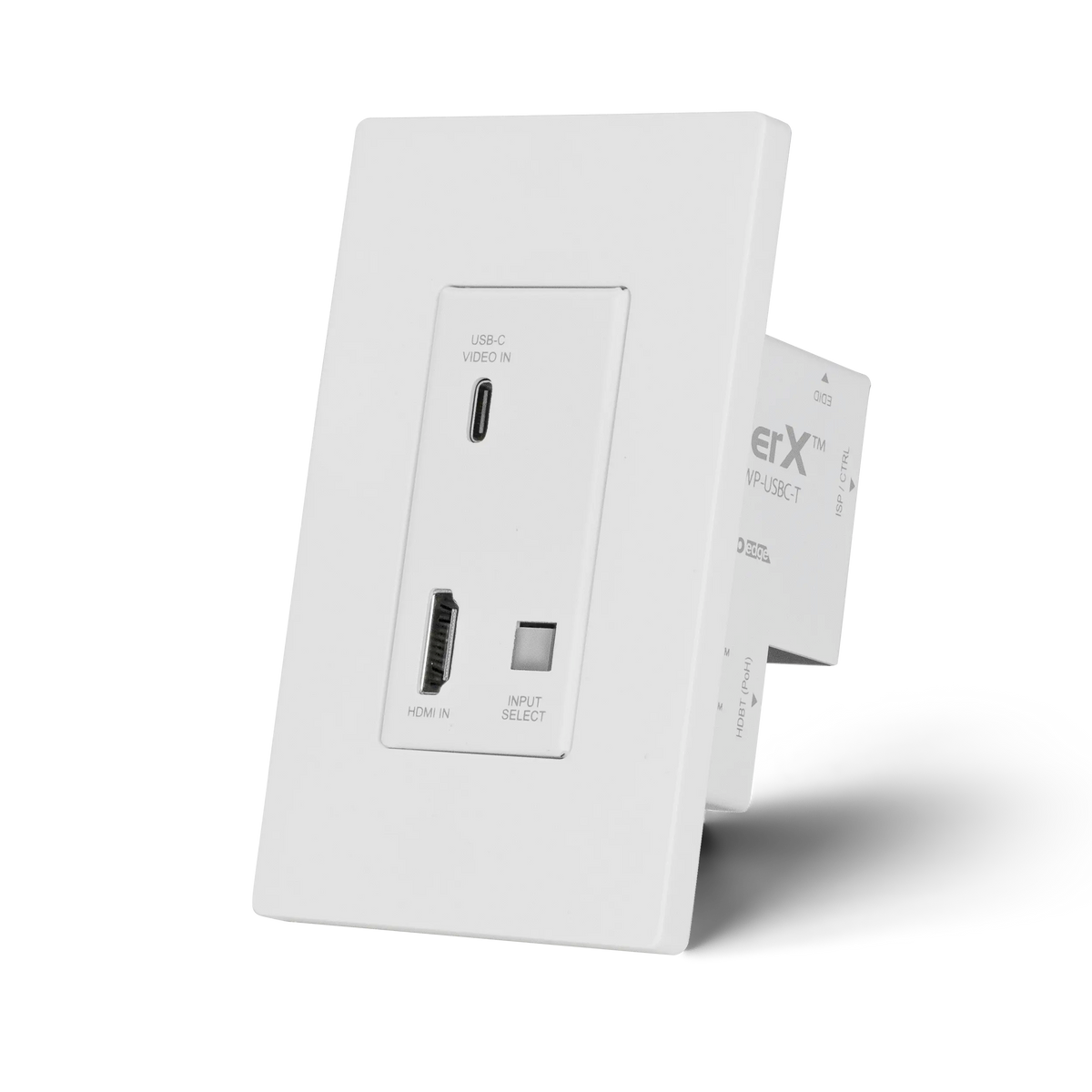

NAME        AC-CXWP-USBC-T

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:2:0 & 4K30 4:4:4
VESA RESOLUTIONS        UP TO 2560X2048 (QSXGA)
HDR FORMATS/RESOLUTIONS        4K24 4:2:2 12 BIT, 4K24 4:2:0 10 BIT
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
DEEP COLOR        UP TO 12 BIT (4K)

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS

DISTANCE
DISTANCE 1080P        100M (330 FEET) (WITH CAT 6A/7)
DISTANCE 4K & HDR        70M (230 FEET) (WITH CAT 6A/7)

OTHER
BANDWIDTH        10.2 GBPS
CEC        YES
HDCP        HDCP 2.2 AND EARLIER

PORTS
HDMI (INPUT)        TYPE A
USB-C PORT (INPUT)        USB TYPE-C (USB TYPE-C TO TYPE-C 3.1 GEN 2 OR HIGHER FOR 4K)
HDBASET (OUTPUT TO RECEIVER)        RJ45

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        8W (16.5W WHEN PAIRED WITH RECEIVER)
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 5V (USB-C)

DIMENSIONS
DIMENSIONS (SINGLE UNIT ONLY D/W/H)        MM: 65 X 31 X 70 | INCH: 2.55 X 1.22 X 2.75 (WITHOUT WALL DECORA COVER)
WALL SPACE        SINGLE GANG
COMPATIBLE BOX TYPES        MUD RINGS, STUD MOUNT, CLAMP MOUNT, METAL & PLASTIC BOXES, LV BOXES
DIMENSIONS (PACKAGED L/W/H)        MM: 159 X 137 X 89 | INCH: 6.25 X 5.375 X 3.5
WEIGHT (UNIT)        0.4 LBS (0.18 KG)
WEIGHT (PACKAGED)        0.5 LBS (0.23 KG)
