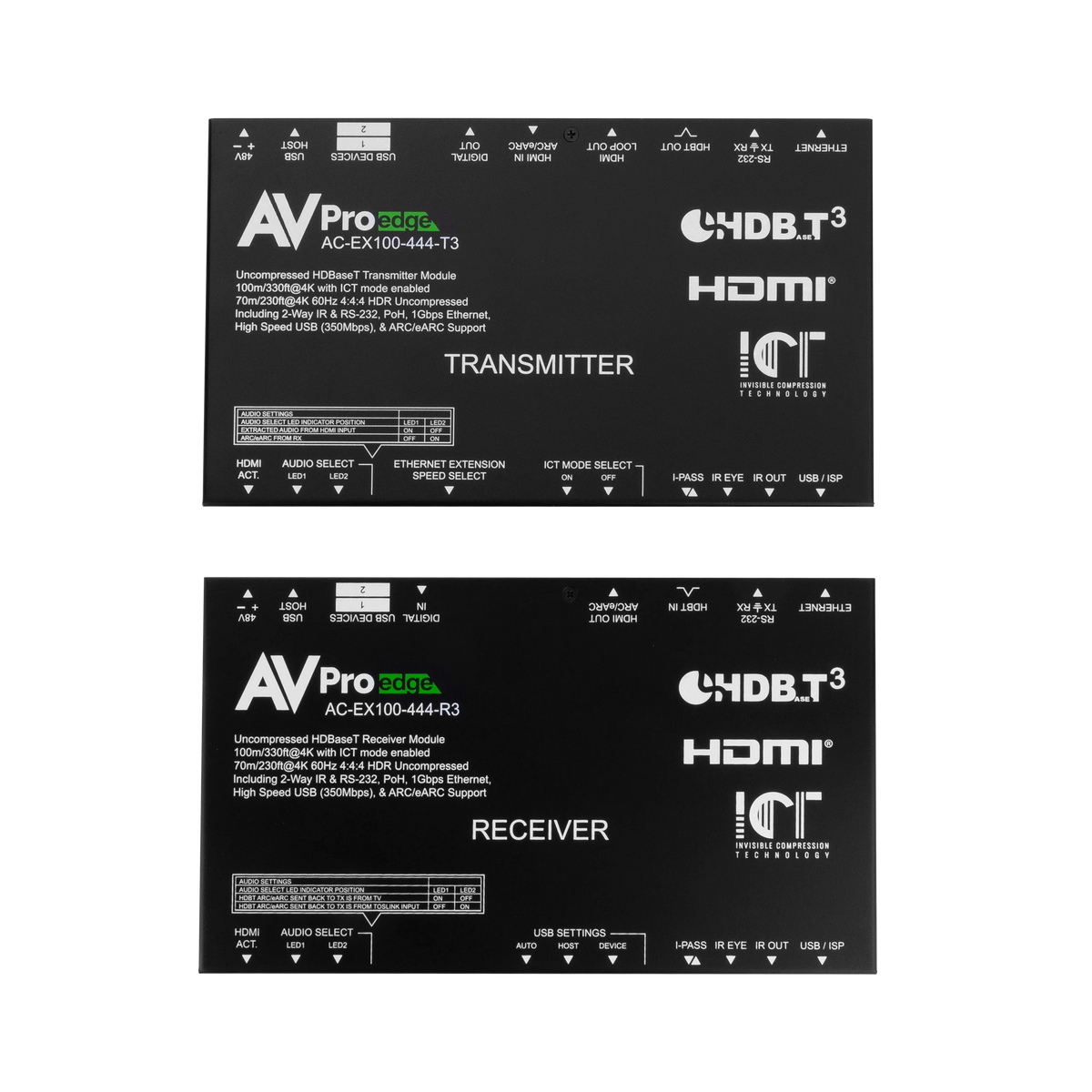

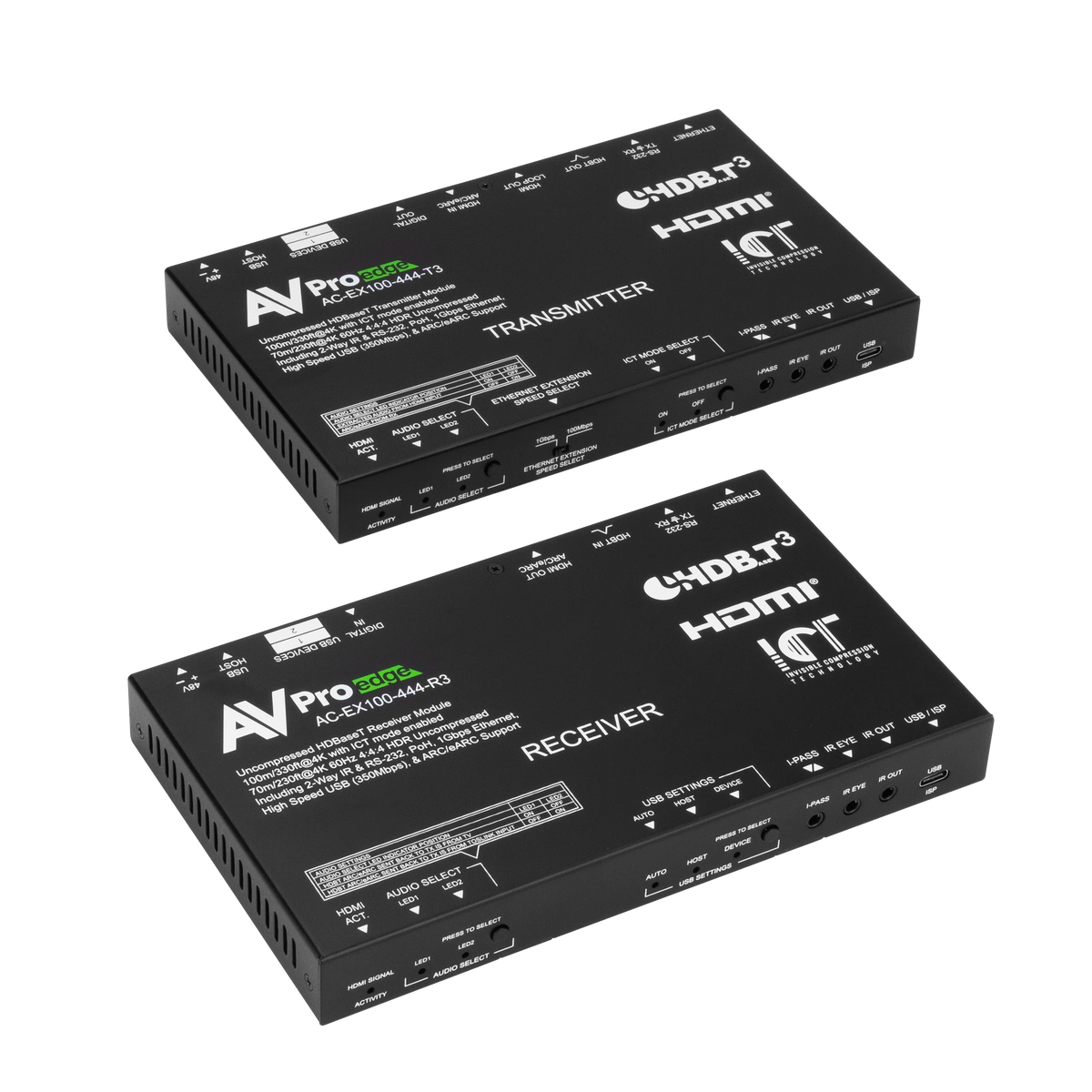

NAME        AC-EX100-444-KIT

VIDEO
VIDEO RESOLUTIONS        UP TO 4K/60HZ 4:4:4
VESA RESOLUTIONS        UP TO DCI 4K (4096X2160)
HDR FORMATS        HDR10, HDR10+, DOLBY VISION, HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0
COLOR BIT DEPTH        UP TO 16-BIT (1080P), UP TO 12-BIT (4K)
DOWN SCALING        4K TO 1080P

AUDIO
AUDIO FORMATS SUPPORTED HDMI        LPCM UP TO 7.1-CH @ 192KHZ 24-BIT, DOLBY DIGITAL, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DOLBY ATMOS, DOLBY AC-4, DTS-DIGITAL SURROUND, DTS-ES DISCRETE, DTS-HD HIGH RES AUDIO, DTS-HD MASTER AUDIO, DTS:X
AUDIO FORMATS SUPPORTED (EXTRACTED)        LPCM 2.0 CH, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS (TOSLINK, TX ONLY)

ARC / eARC
FORMATS SUPPORTED HDMI ARC/eARC OUT (TX)        LPCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
FORMATS SUPPORTED TOSLINK OUT (TX)        LPCM 2.0 CH, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS

DISTANCE
HDBASET DISTANCE (UNCOMPRESSED)        70 M / 230 FT (CAT 6A)
HDBASET DISTANCE (ICT COMPRESSION)        100 M / 330 FT (CAT 6A)
HDMI IN/OUT (4K/60HZ 4:4:4)        UP TO 50 FT (USING BULLET TRAIN HDMI)
HDMI IN/OUT (AOC CABLE)        UP TO 130 FT (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS (ICT MODE OFF) | 10.2 GBPS (ICT MODE ON)
HDCP        HDCP 2.3 AND EARLIER

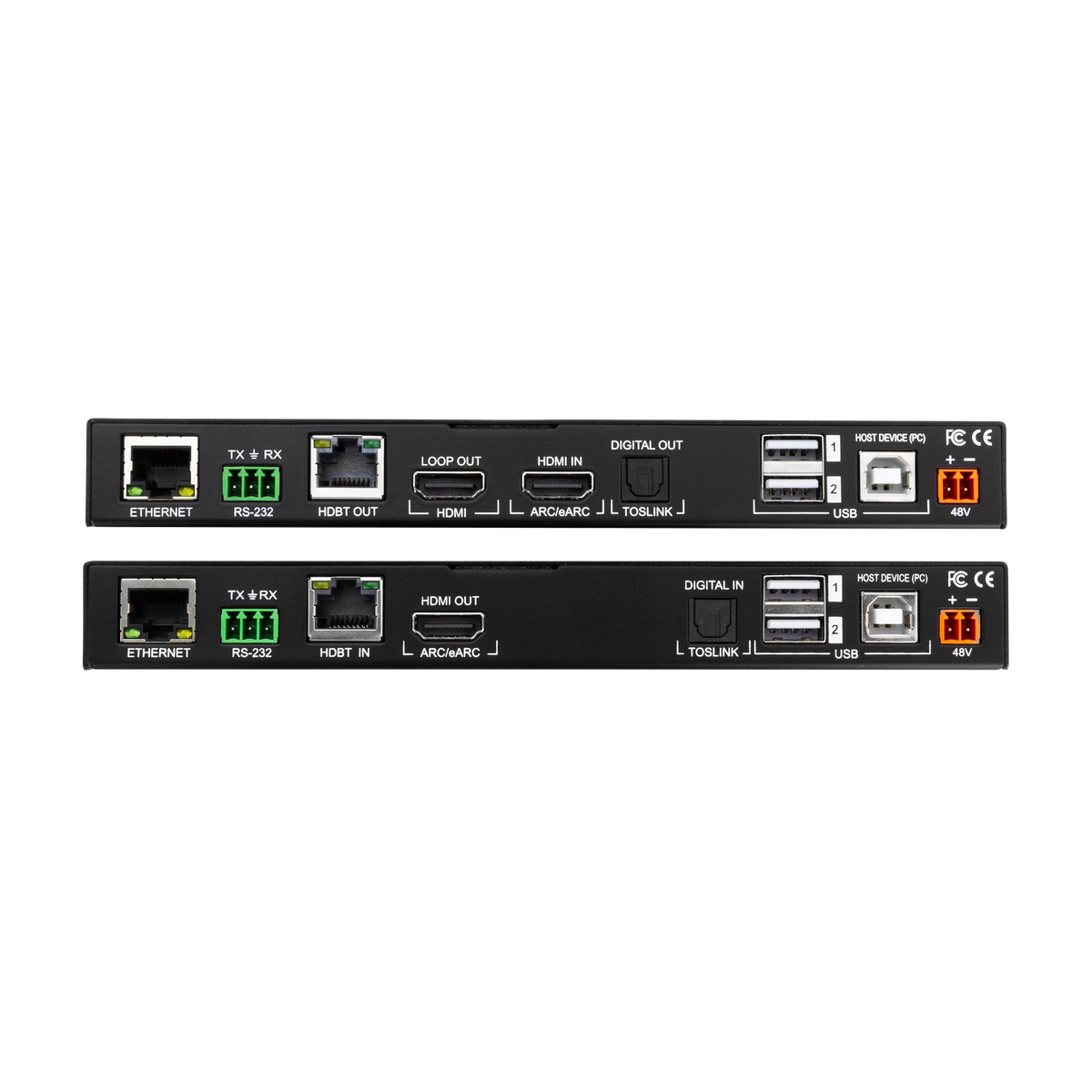

PORTS
HDMI (TX & RX)        TYPE A 19-PIN, FEMALE
HDBASET        RJ45 W/ POH
EXTRACTED AUDIO (TX ONLY)        TOSLINK
IR TX (TX & RX)        3.5MM MONO (2 CONDUCTOR)
IR RX (TX & RX)        3.5MM STEREO (3 CONDUCTOR)
RS-232 (TX & RX)        3-PIN TERMINAL BLOCK
POWER (TX & RX)        2-PIN TERMINAL BLOCK
ETHERNET (TX & RX)        RJ45 (100BASE-T / 1000BASE-T)
USB MODE        HOST/DEVICE SELECTABLE (TX & RX)
USB VERSION        USB 2.0
TX USB PORTS        HOST: USB TYPE-B (×1) | DEVICE: USB TYPE-A (×2)
RX USB PORTS        HOST: USB TYPE-B (×1) | DEVICE: USB TYPE-A (×2)

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        12W MAXIMUM

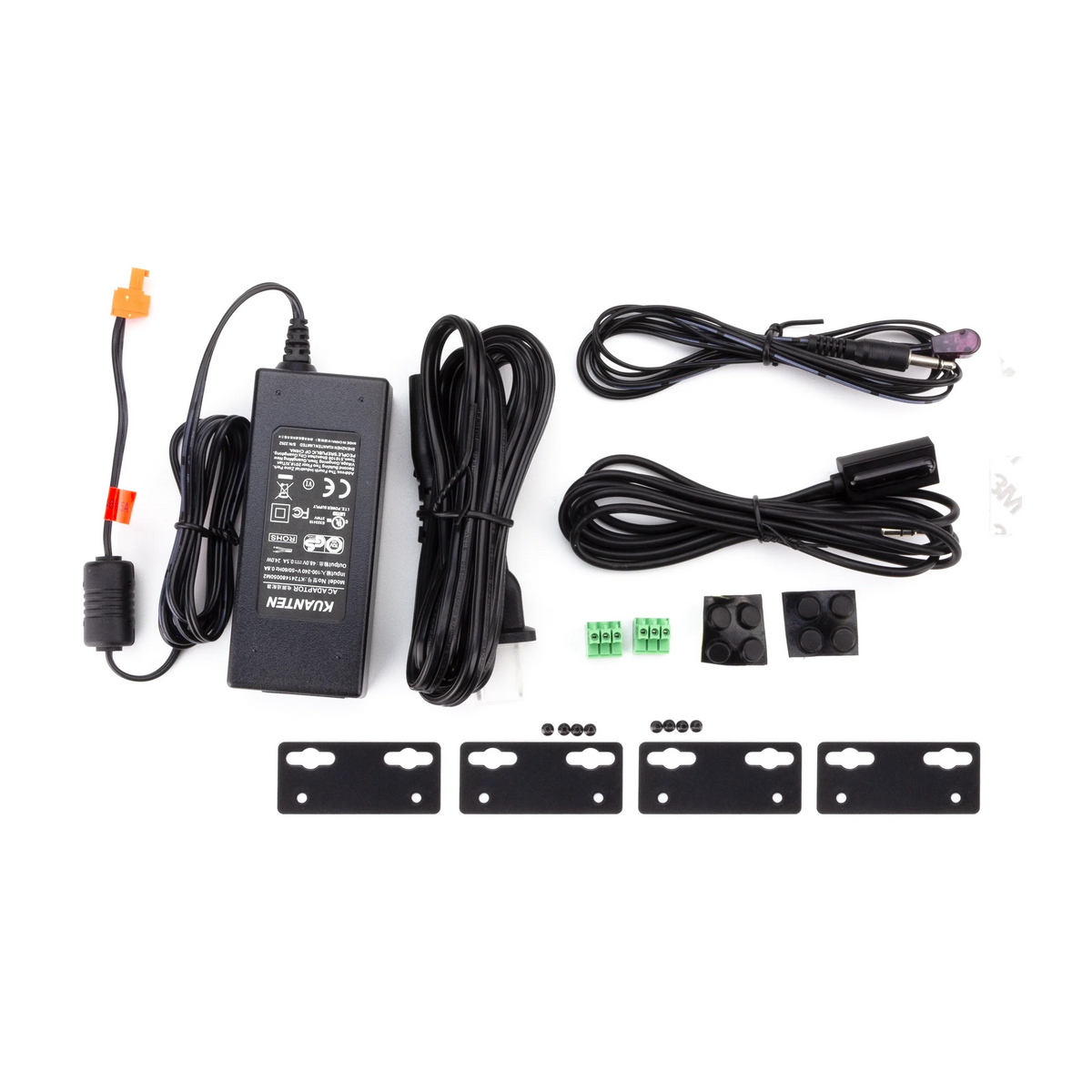

POWER SUPPLY        INPUT: 100-240VAC ~ 50/60HZ | OUTPUT: 48VDC, 0.5A

PHYSICAL / DIMENSIONS
DIMENSIONS (SINGLE UNIT W/D/H)        MM: 196.85 × 103.12 × 25.4 | INCHES: 7.75 × 4.06 × 1
DIMENSIONS (KIT PACKAGED W/D/H)        MM: 314.45 × 184.15 × 77.98 | INCHES: 12.38 × 7.25 × 3.07
WEIGHT (SINGLE UNIT)        1.4 LBS (0.64 KG)
WEIGHT (KIT PACKAGED)        3.8 LBS (1.7 KG)
