NAME        AC-EX40-444-KIT
Video:
Video Resolutions        Up to 4K 60Hz 4:4:4
VESA Resolutions        Up to DCI 4K (4096x2160)
HDR Formats        HDR10, HDR10+, HDG, Dolby Vision, Low Latency Dolby Vision
Color Space        YUV (Component), RGB  (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling        4:4:4, 4:2:2, 4:2:0 Supported
Color Bit Depth        Up to 16 bit (1080), Up to 12 bit (4K)
Down Scaling        4K (and HDR) down to 2K
Audio:
Audio Formats Supported HDMI        PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (2CH)        PCM 2 Ch (No Downmix)
Distance:
HDBaseT (CAT) Distance (4K)        40 Meters / 131 Feet (Cat 6a)
HDBaseT (CAT) Distance (Full HD)        70 Meters / 230 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)        Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)        Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth        18 Gbps (W/ ICT)
HDCP        HDCP 2.2 and Earlier (HDCP 2.3 support with this firmware)

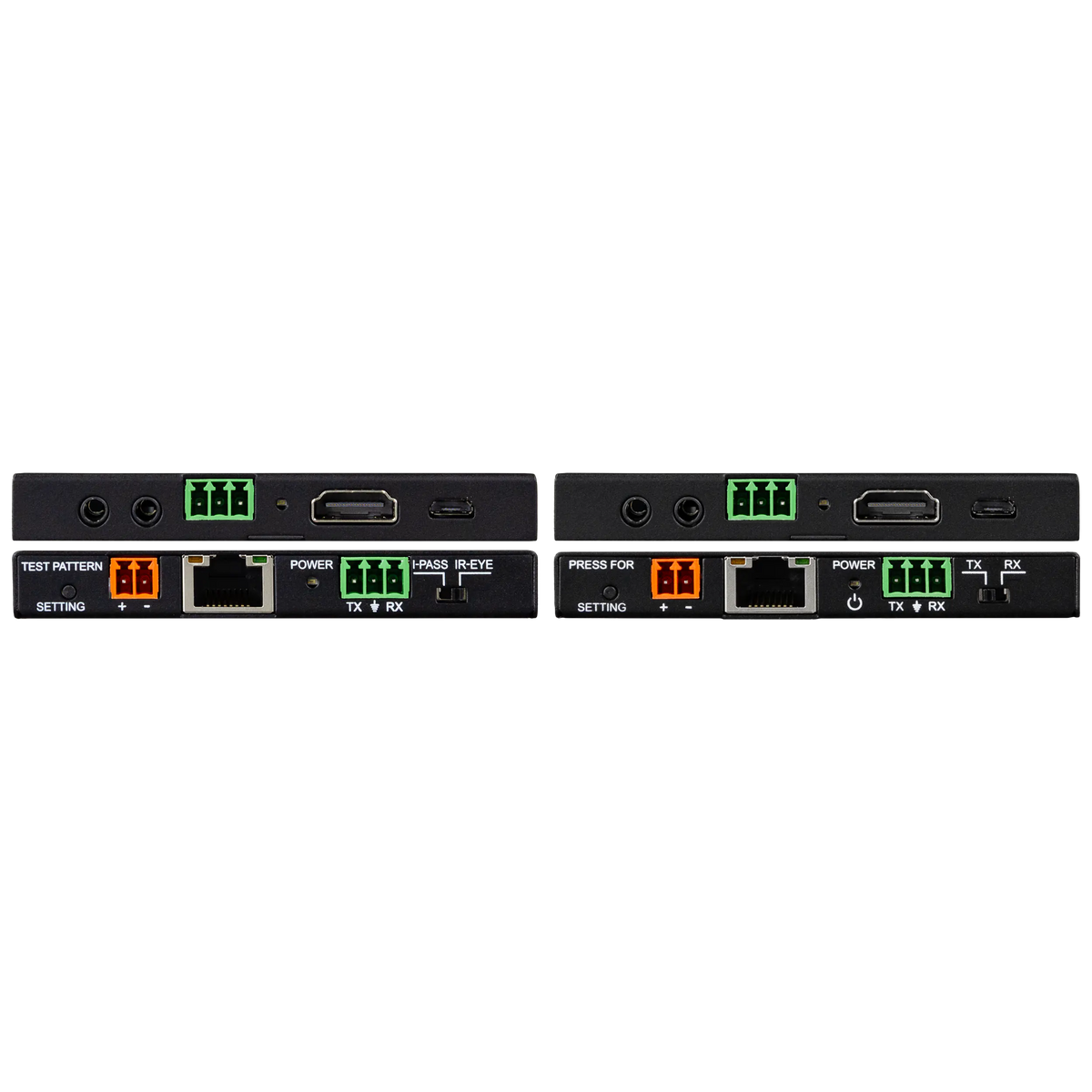

Ports:
HDMI  (TX & RX)        Type A
Audio (Extracted Analog)        3 pin terminal block (Unbalanced)
IR TX (TX & RX)        3.5mm Mono (2 Conductor)
IR RX (TX & RX)        3.5mm Stereo (3 Conductor)
RS232 (TX & RX)        3-pin terminal block
Power (TX & RX)        2-Pin Terminal Block
Environmental:
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Humidity Range        5-90% RH (No Condensation)
Power:
Power Consumption (Total)        12 Watts Max
Power Supply - Matrix        Input: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (Single Unit Only, TX/RX are Same) (Height/Depth/Width) (TX/RX Each Alone)        mm: 129 x 92 x 12
inch: 5.05 x 3.62 x 0.47
Dimensions (Packaged Height/Depth/Width) (Kit)        mm: 203 x 165 x 91
inch: 8 x 6.5 x 3.6
Weight (Unit) (TX or RX Each Only)        0.3 lbs (0.13 kg)
Weight (Packaged)        2 lbs (0.90 kg)
