NAME        AC-EX40-444-PLUS-KIT

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:4:4
VESA RESOLUTIONS        UP TO DCI 4K (4096X2160)
HDR FORMATS        HDR10, HDR10+, DOLBY VISION (24/30 FRAMES), HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
COLOR BIT DEPTH        UP TO 16 BIT (1080), UP TO 12 BIT (4K)
DOWN SCALING        4K (AND HDR) DOWN TO 1080P

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (TOSLINK)        PCM 2 CH, LPCM 6 CH, LPCM 7 CH, DOLBY DIGITAL, DOLBY DIGITAL PLUS

DISTANCE
HDBASET (CAT) DISTANCE (4K)        40 METERS / 131 FEET (CAT 6A)
HDBASET (CAT) DISTANCE (FULL HD)        70 METERS / 230 FEET (CAT 6A)
HDMI LEAD IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI LEAD IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS (WITH ICT)
HDCP        HDCP 2.3 AND EARLIER

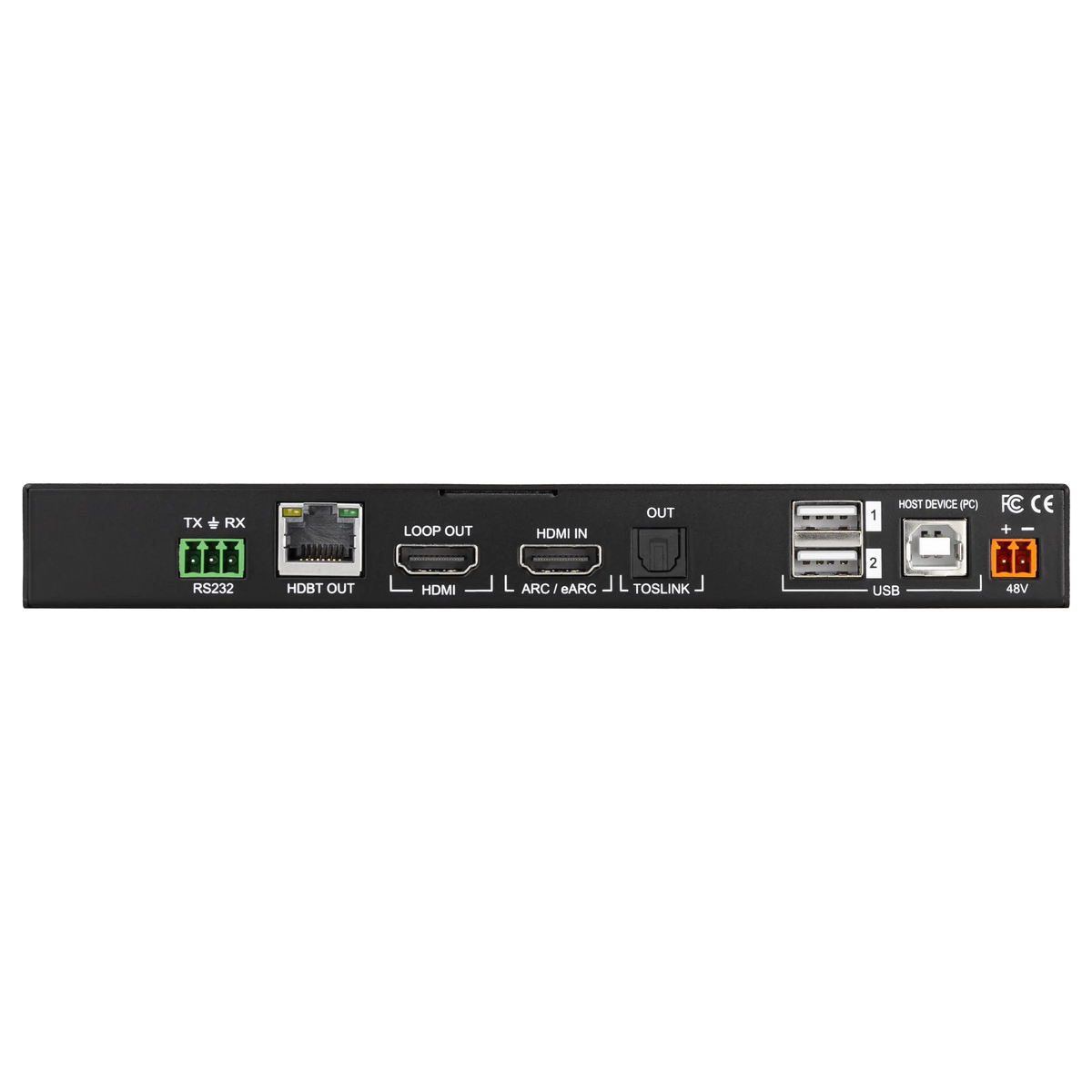

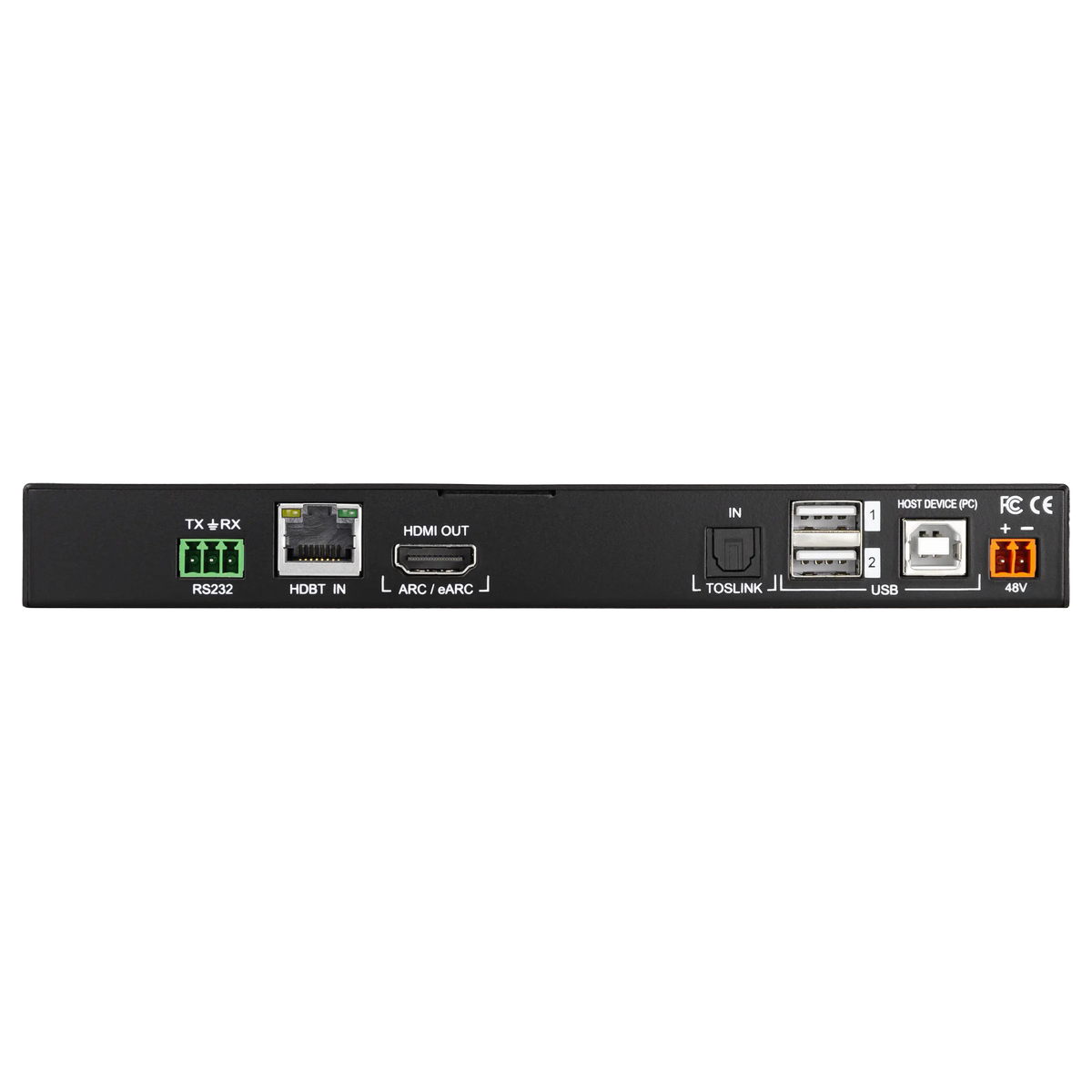

PORTS
HDMI (TX & RX)        TYPE A
HDBASET        RJ45 W/ POH FOR HDBASET RECEIVERS
EXTRACTED AUDIO (TX ONLY)        TOSLINK
IR TX (TX & RX)        3.5MM MONO (2 CONDUCTOR)
IR RX (TX & RX)        3.5MM STEREO (3 CONDUCTOR)
RS-232 (TX & RX)        3-PIN TERMINAL BLOCK
POWER (TX & RX)        2-PIN TERMINAL BLOCK

USB (SELECTABLE HOST)
VERSION        USB 2.0
TX PORT        USB HOST: USB TYPE-B (X2) | USB TYPE-A (X1)
RX PORT        USB HOST: USB TYPE-B (X2) | USB TYPE-A (X1)

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        12 WATTS MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 48V 0.5A

DIMENSIONS
DIMENSIONS (SINGLE UNIT H/D/W)        MM: 113.68 X 196.85 X 21.8 | INCH: 4.48 X 7.75 X 0.86
DIMENSIONS (KIT PACKAGED H/D/W)        MM: 184.15 X 317.5 X 79.38 | INCH: 7.25 X 12.5 X 3.125
WEIGHT (SINGLE UNIT)        1.2 LBS (0.54 KG)
WEIGHT (KIT PACKAGED)        3.6 LBS (1.63 KG)
