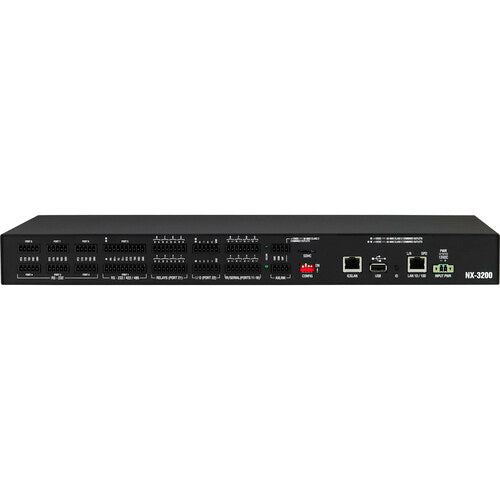

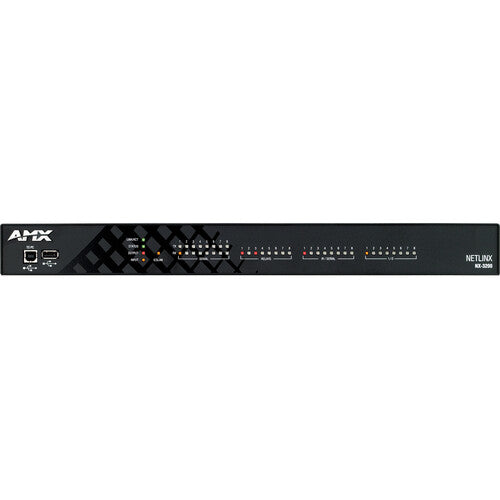

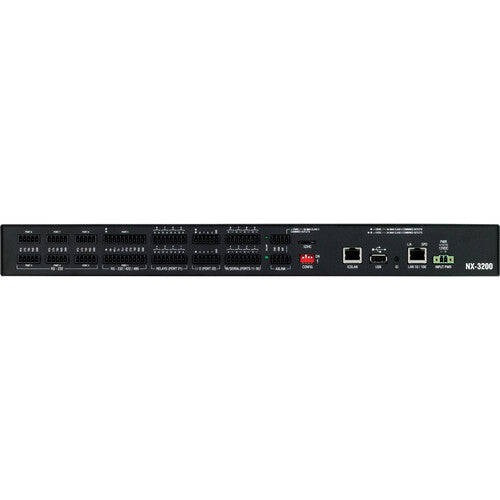

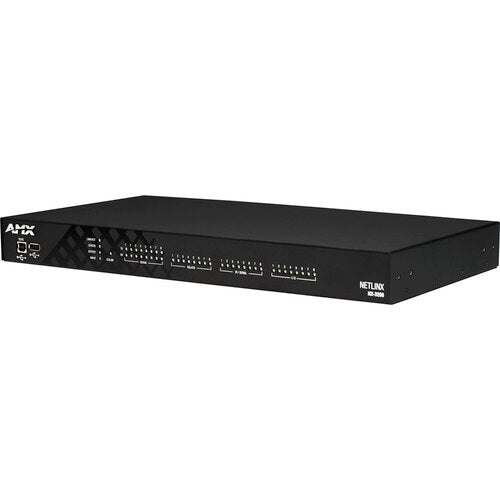

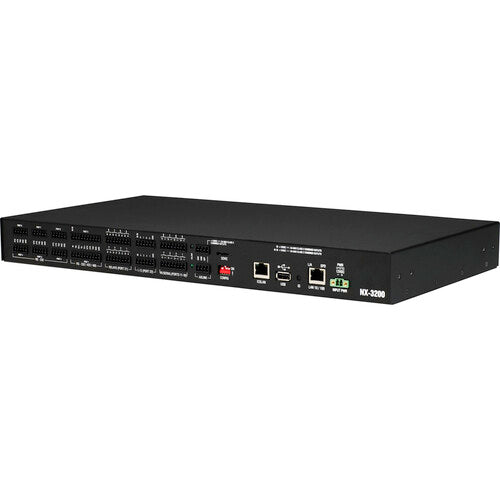

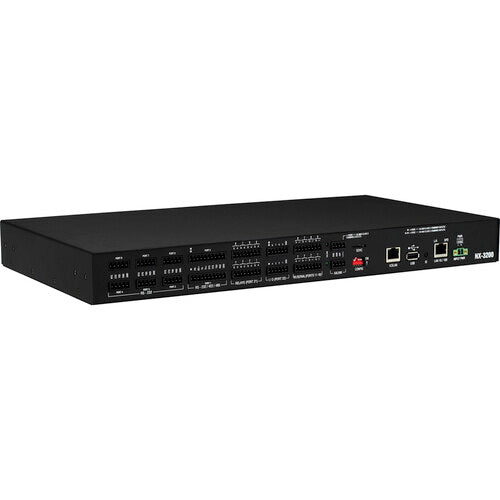

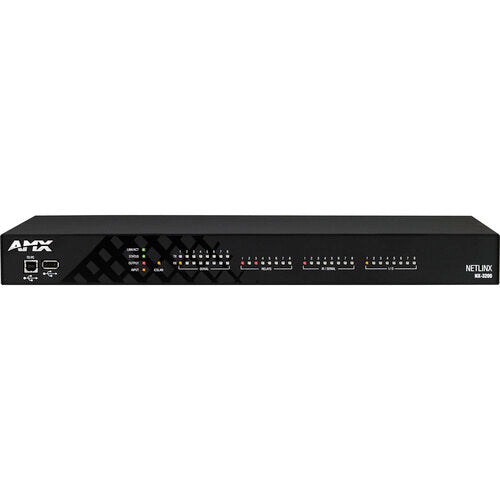

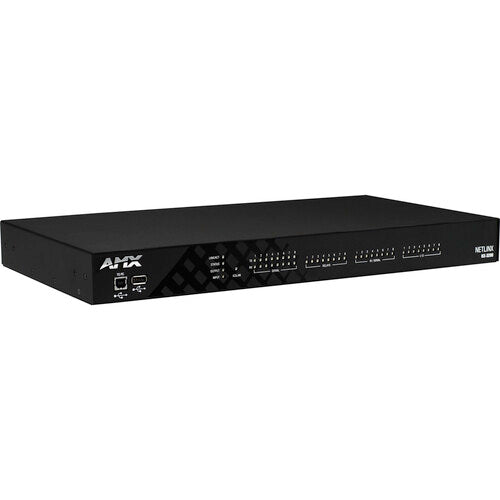

Name        AMX by Harman NX-3200 - FG2106-03
Dimensions (HWD)        1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight        6.08 lb. (2.758 Kg)

Memory        Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives

Power Consumption        Active Power Consumption: 6.6 W

AxLink Port        (2) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator        (2) AxLink LED (green) indicates the state of the AxLink port

RS-232/422/485 Ports        (2) 10-position 3.5mm Screw Terminal, NetLinx Port 1 and 5, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port        (6) 5-position 3.5mm Screw Terminal, NetLinx Ports 2-4 and 6-8, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud

Serial Indicator        (8) sets of LEDs (red/yellow) indicate when serial Ports 1 - 8 are transmitting and receiving data

IR/Serial        (8) 2-position 3.5mm Screw Terminal, 8 IR Transmit / 1-way Serial ports, NetLinx Ports 11-18, Support high-frequency carriers up to 1.142 MHz, 8 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators        (2) LEDs (red) indicate when each of the IR/Serial ports (11-18) are transmitting control data

I/O Channels        (8) One 10-position 3.5mm Screw Terminal, 8-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-8
I/O Indicator        (8) LEDs (yellow) indicate each of the I/O channels (1-8) are active

Relays        (8) Two 8-position 3.5 mm Screw Terminal, (8) single-pole, single-throw relays, NetLinx Port 21, Channels 1-8, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled
Relay Indicators        (8) LEDs (red) indicate when each of the relay channels (1-8) are active (closed)

FG Numbers        FG2106-03
JITC Status        Approved - 04/2023
