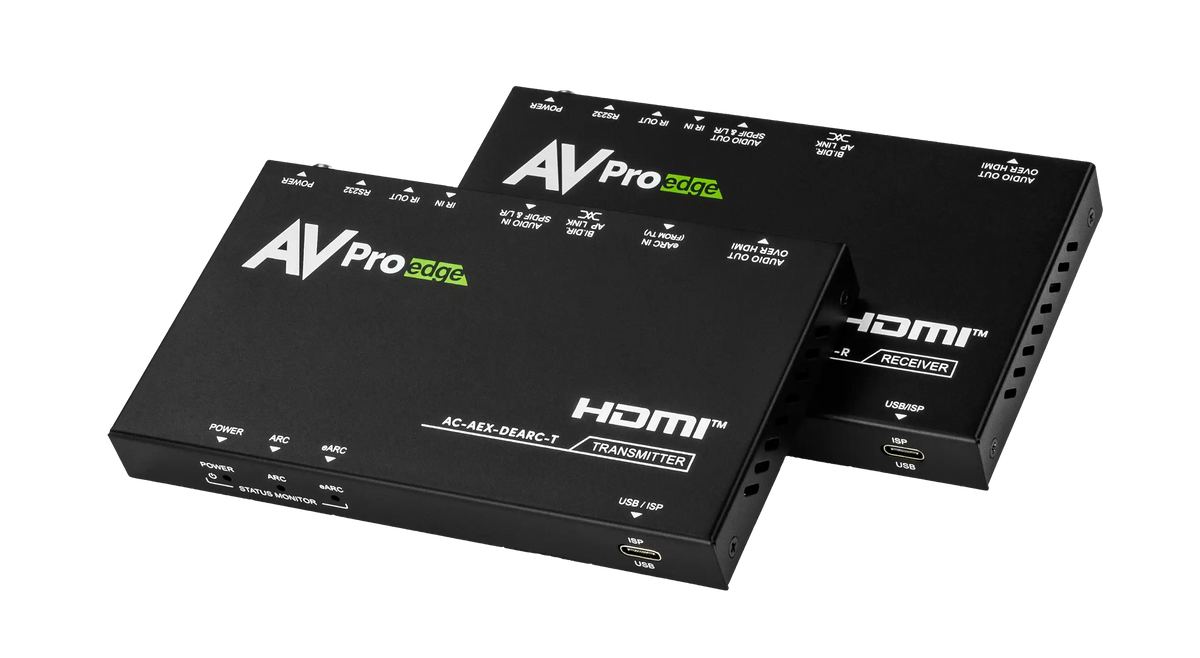

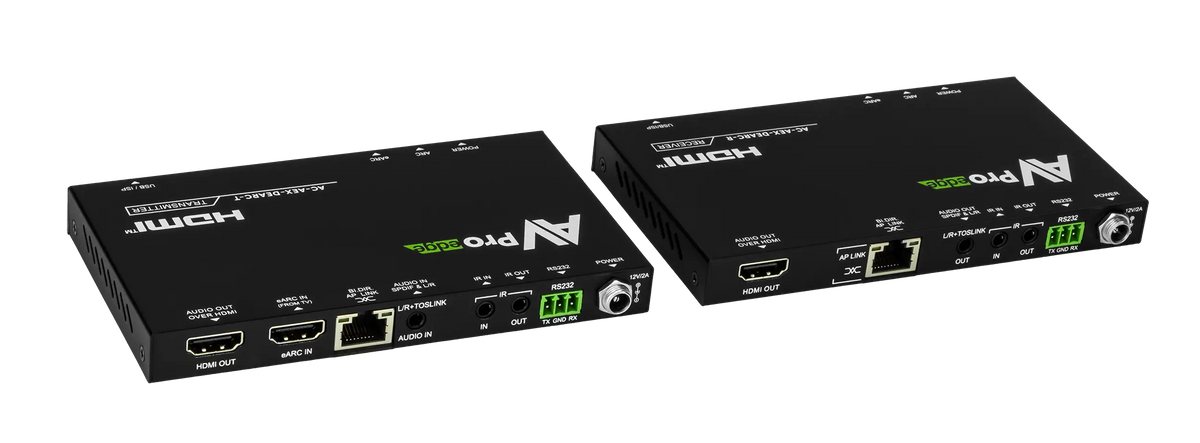

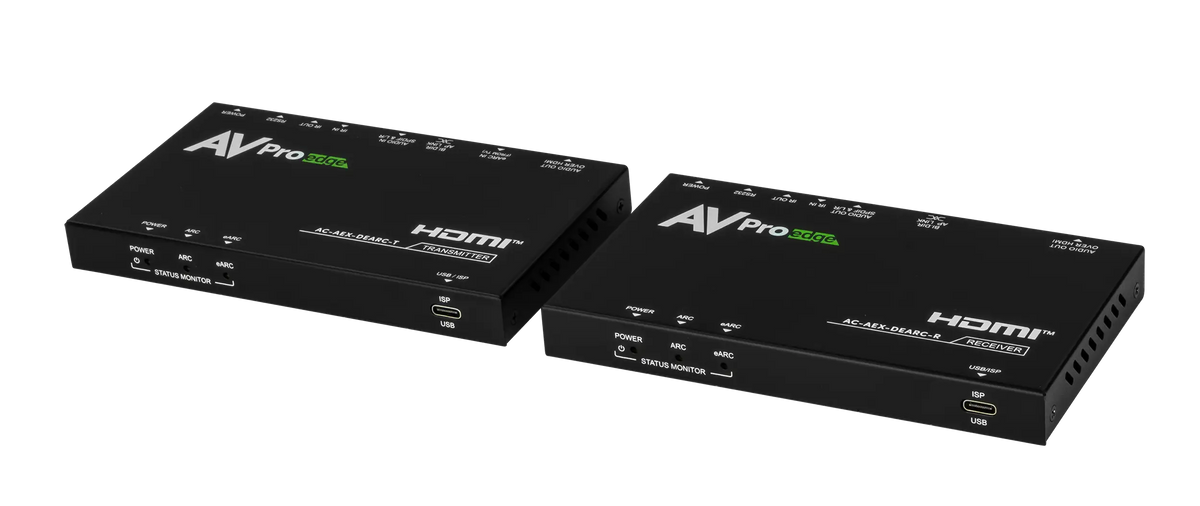

NAME        AC-AEX-DEARC-KIT

VIDEO
VIDEO TRANSPORT        NOT SUPPORTED

AUDIO
AUDIO FORMATS (HDMI eARC)        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DOLBY ATMOS, DTS DIGITAL, DTS HI-RES, DTS-HD MASTER AUDIO, DTS:X
AUDIO FORMATS (SPDIF/ARC)        PCM 2.0 CH, DOLBY DIGITAL, DTS 5.1
AUDIO FORMATS (ANALOG)        PCM 2.0 (3.4VPP)

DISTANCE
CATEGORY CABLING        100 METERS (328 FEET) CAT 6A

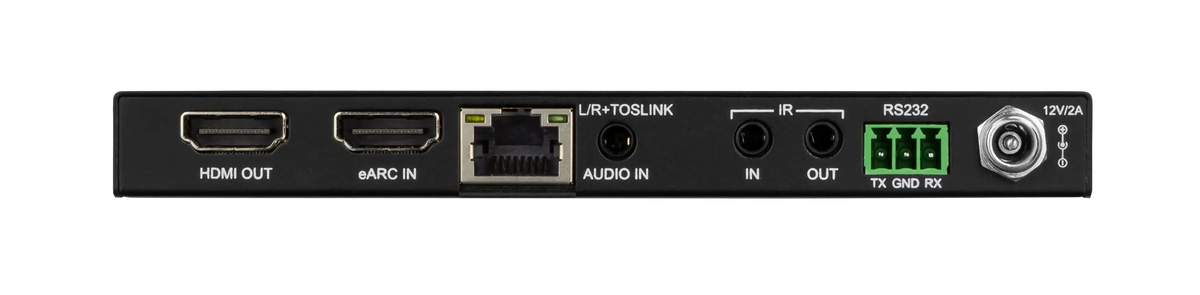

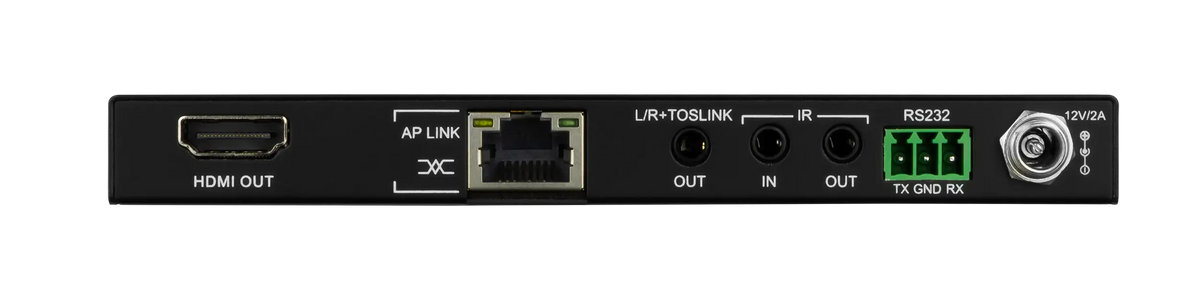

PORTS
HDMI (AUDIO-ONLY OUTPUT)        TYPE A
SPDIF        MINI-TOS
ANALOG        STEREO 3.5MM
AP-LINK        RJ45 W/ POC (POWERS BOTH DEVICES)
IR SEND        3.5MM MONO JACK
IR RECEIVE        3.5MM STEREO JACK
RS-232        3-PIN TERMINAL BLOCK CONNECTOR
POWER        2-PIN TERMINAL BLOCK CONNECTOR

ENVIRONMENTAL
OPERATING TEMPERATURE        23°F TO 125°F (-5°C TO 51°C)
STORAGE TEMPERATURE        -4°F TO 140°F (-20°C TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        24W MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 12V 2A

DIMENSIONS
DIMENSIONS (UNIT H/W/D)        MM: 15 X 140 X 80 | INCH: 0.6 X 5.5 X 3.1
DIMENSIONS (PACKAGED H/W/D)        MM: 86.4 X 196.8 X 140 | INCH: 3.4 X 7.75 X 5.5
WEIGHT (UNIT)        0.5 LBS (0.23 KG)
WEIGHT (PACKAGED)        2 LBS
