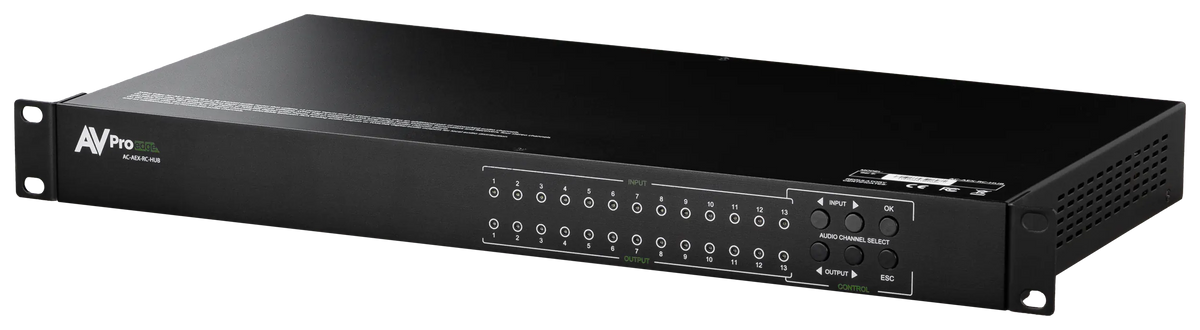

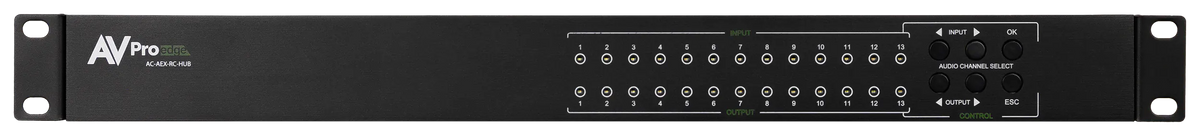

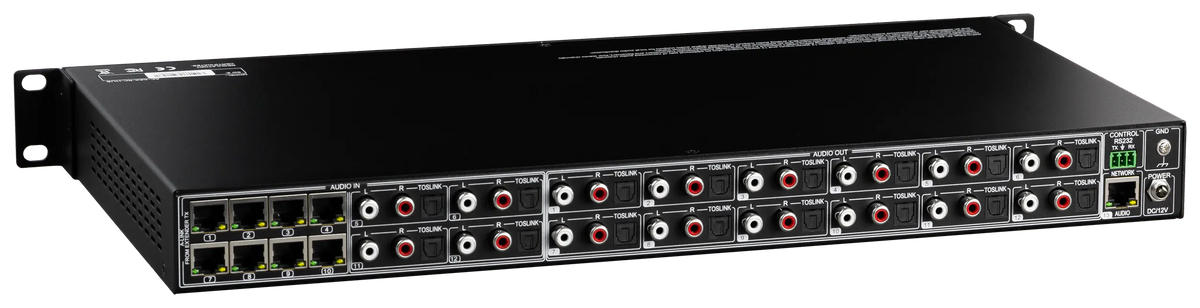

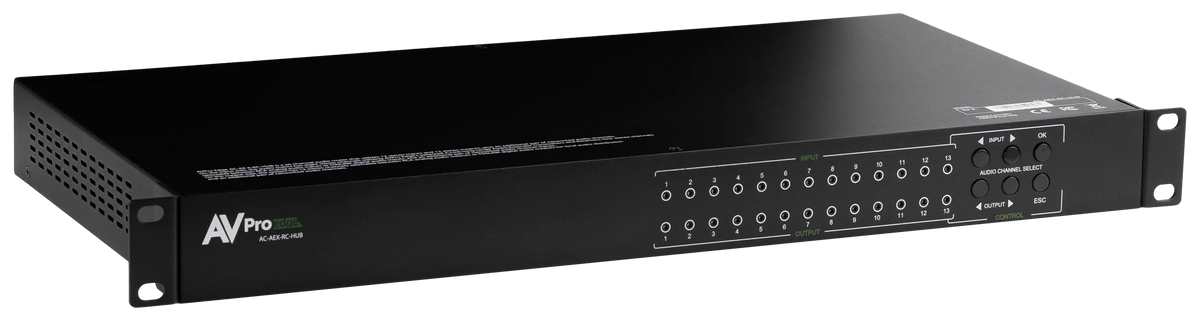

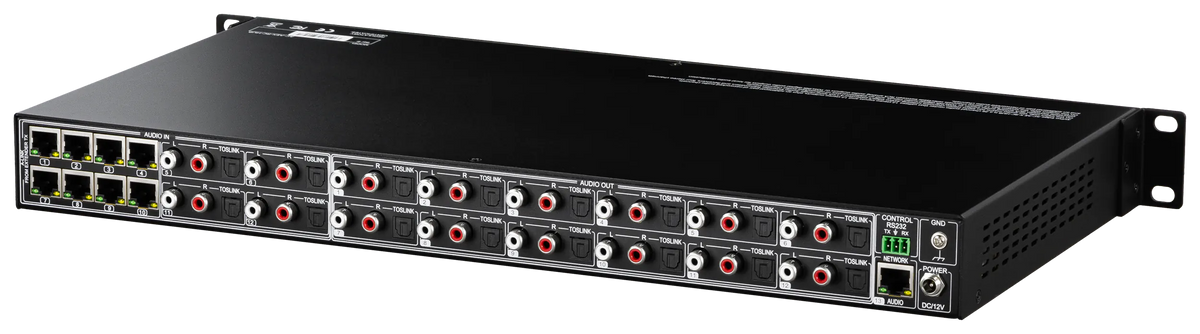

NAME        AC-AEX-RC-HUB

AUDIO
MUTE        AVAILABLE ON ALL OUTPUTS
ANALOG INPUT VOLTAGE        1 VRMS, 2.3 VP-P
ANALOG OUTPUT VOLTAGE        1 VRMS, 2.828 VP-P
DIGITAL        2 CHANNEL PCM (32, 44.1, 48, 88.2, 96, 176, 192 KHZ)
LATENCY        30MS

CONTROL
INTERFACES        RS-232, IP/LAN

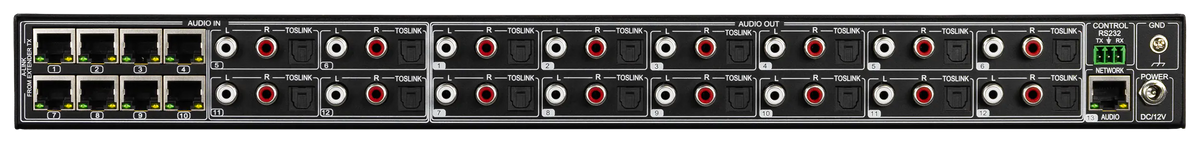

AUDIO INPUTS
AEX AUDIO        8
RCA        4
DIGITAL (TOSLINK)        4

AUDIO OUTPUTS
AEX AUDIO        0
RCA        12
DIGITAL (TOSLINK)        12

POWER
POWER CONSUMPTION (TOTAL)        3W MAX

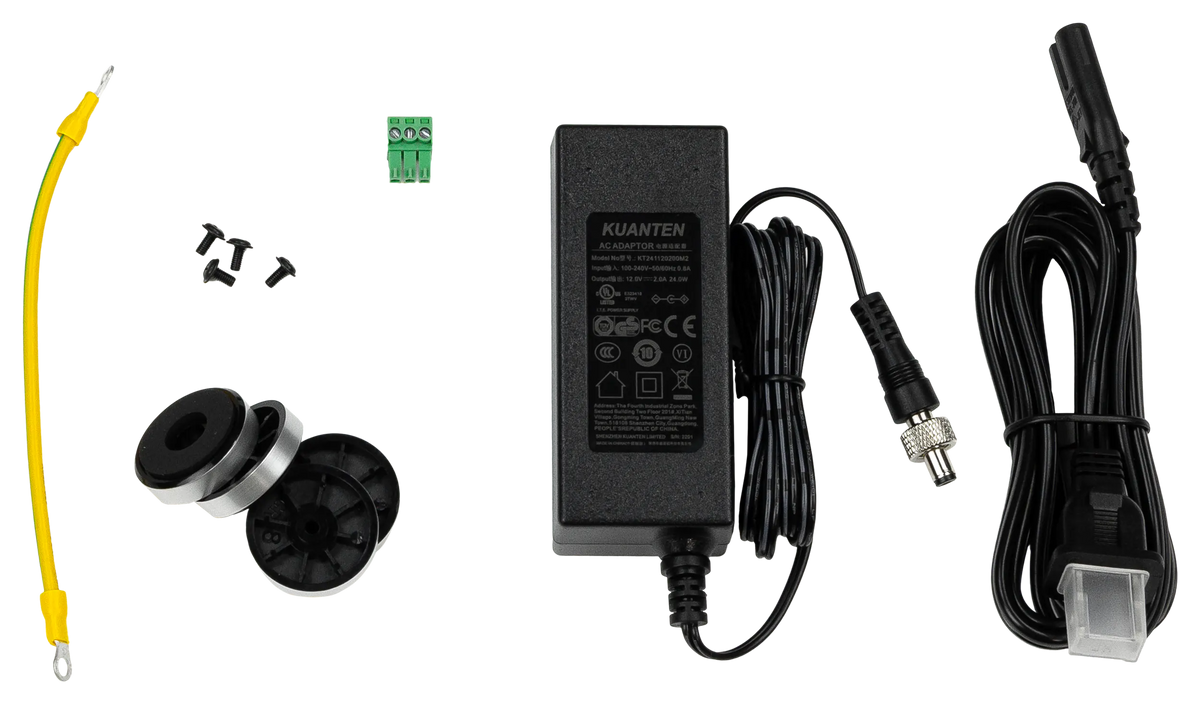

DC POWER        DC 12V 2A

DIMENSIONS
DIMENSIONS (UNIT H/W/D)        MM: 44.45 X 444.5 X 234.95 | INCH: 1.75 X 17.5 X 9.25
DIMENSIONS (PACKAGED H/W/D)        MM: 127 X 571.5 X 381 | INCH: 5 X 22.5 X 15
WEIGHT (UNIT)        6.6 LBS (2.99 KG)
WEIGHT (PACKAGED)        9 LBS (4.08 KG)
