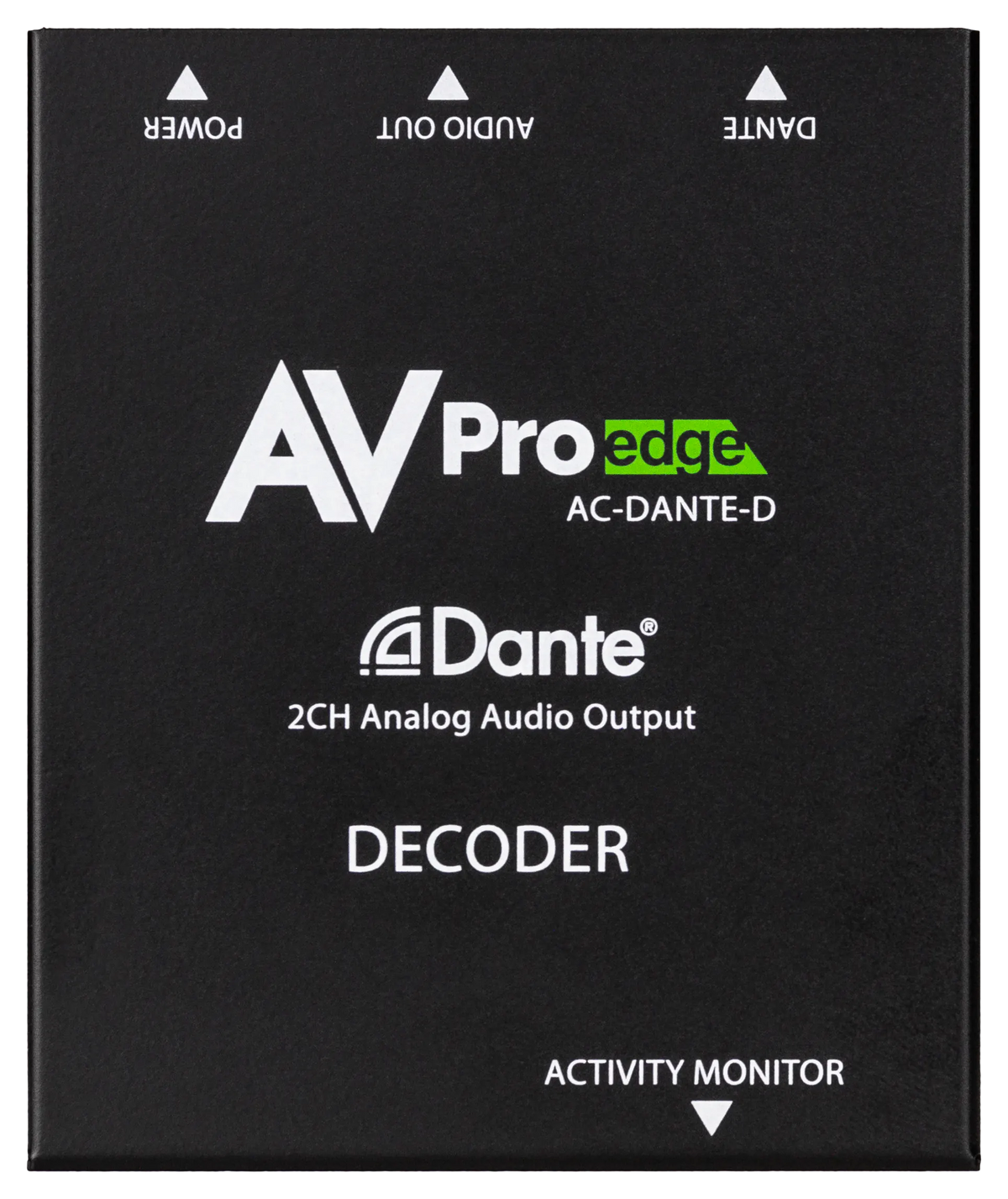

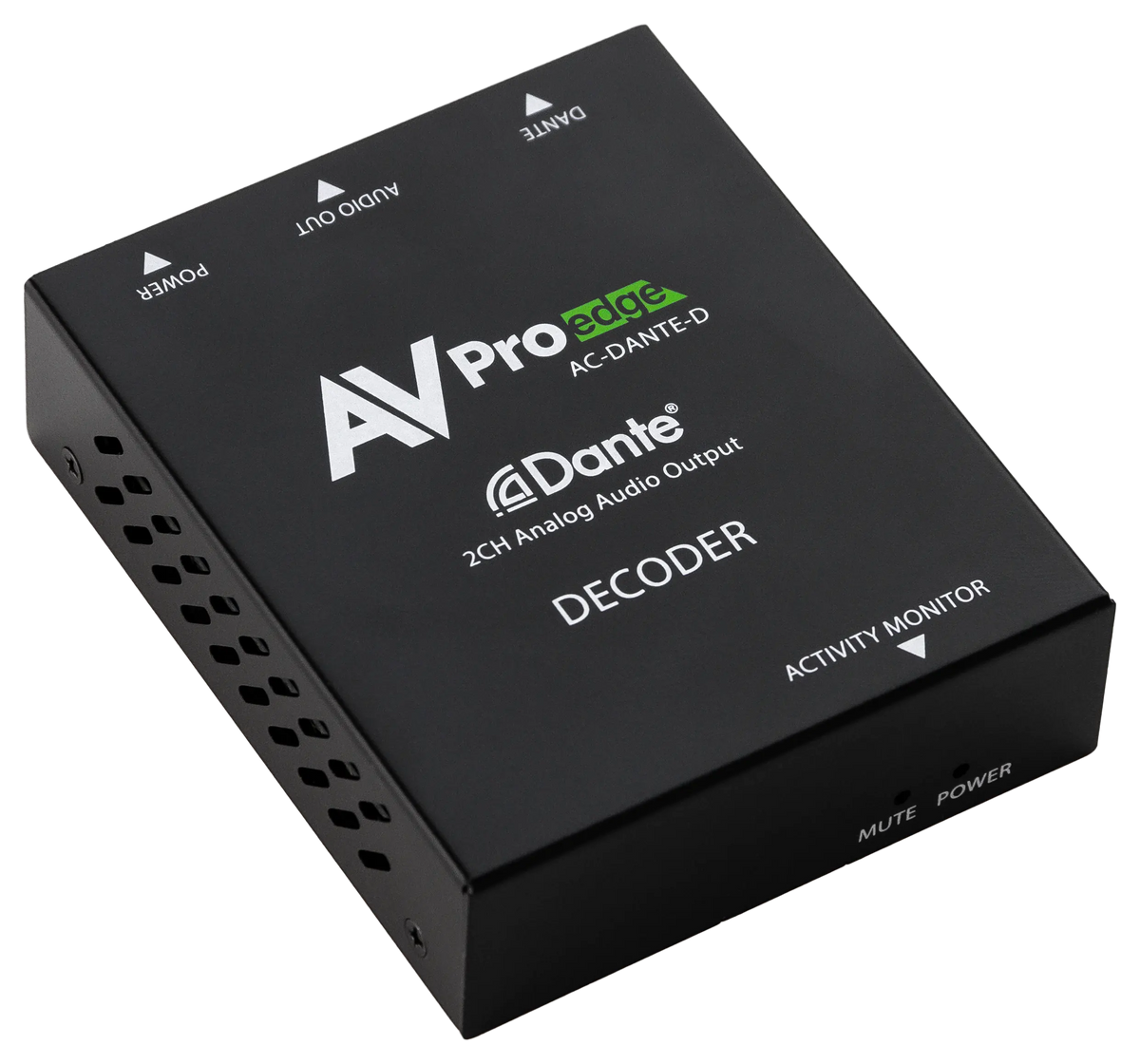

NAME        AC-DANTE-D

AUDIO
FREQUENCY RESPONSE        20HZ TO 20KHZ
ANALOG OUTPUT VOLTAGE        BALANCED OR UNBALANCED 1 VRMS (2.828 VP-P) @ 0 DBFS
FORMAT        LPCM
SUPPORTED SAMPLE RATES        44.1, 48, 88.2, 96 KHZ
SUPPORTED BIT DEPTHS        16, 24, 32
LATENCY        CONFIGURABLE 1, 2, 5 MS

AUDIO CONNECTIONS

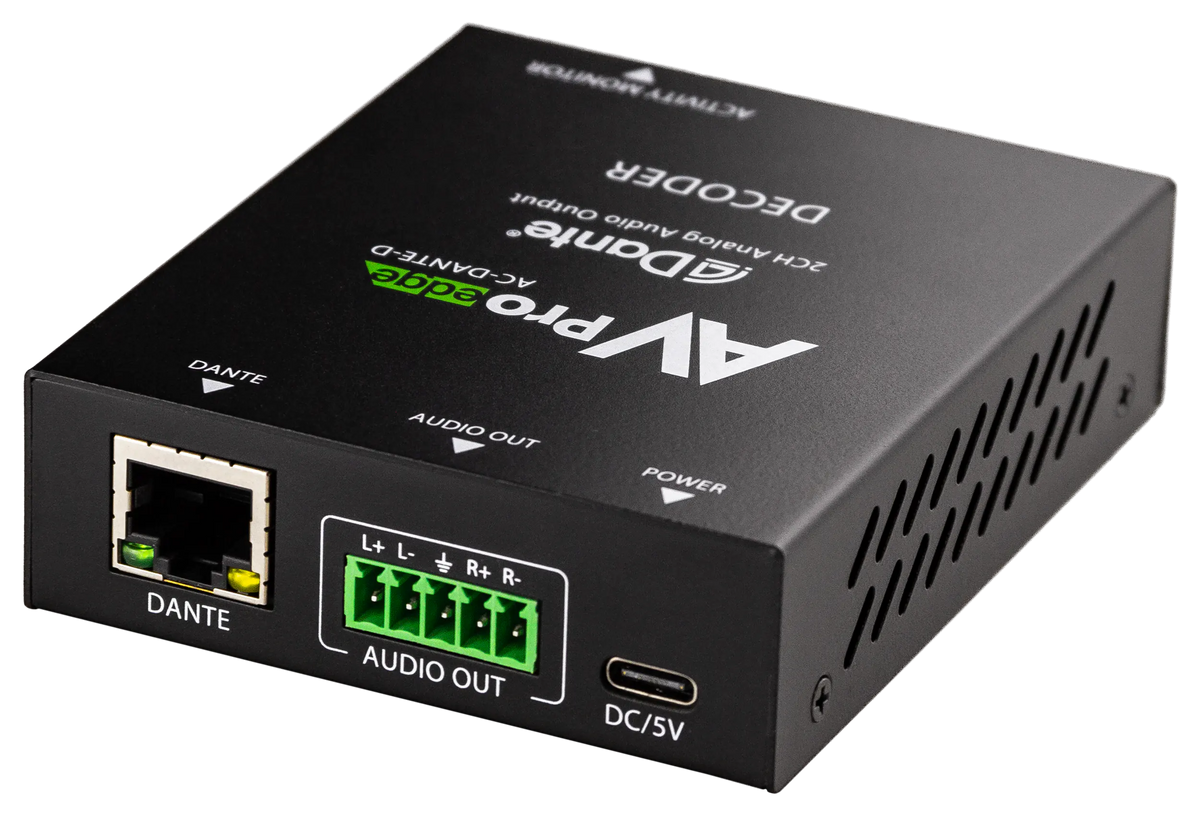

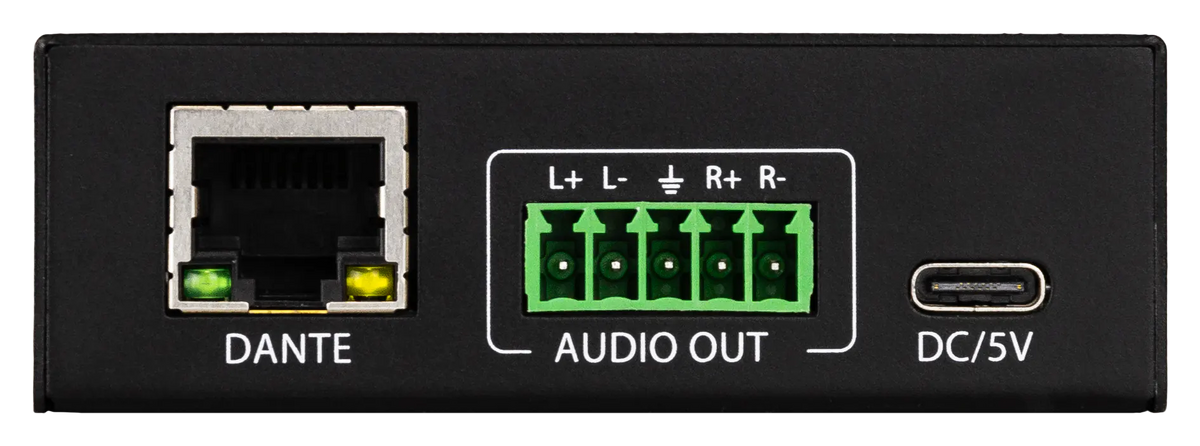

AUDIO OUTPUT        (1) 5-PIN TERMINAL BLOCK
DANTE NETWORK AUDIO        (1) RJ-45

POWER

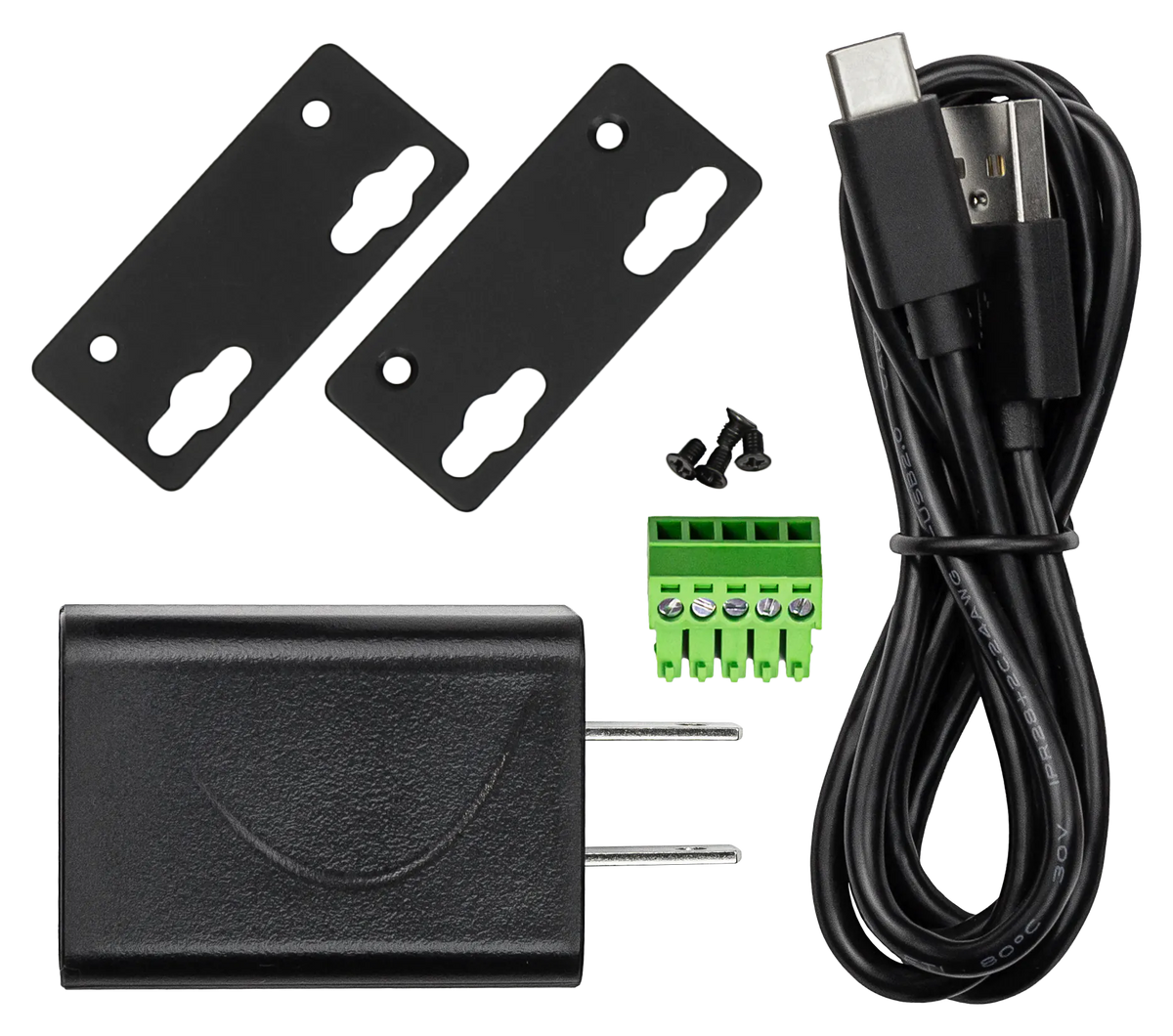

USB TYPE-C POWER ADAPTER        INPUT: 100-240VAC, 50/60HZ, 0.5A | OUTPUT: 5VDC, 1A

DIMENSIONS
MOUNTING        FURNITURE MOUNT SUPPORT
DIMENSIONS (UNIT W/D/H)        MM: 75 X 90 X 25 | INCH: 2.95 X 3.55 X 1
DIMENSIONS (PACKAGED W/D/H)        MM: 193 X 136 X 41 | INCH: 7.6 X 5.35 X 1.62
WEIGHT (UNIT)        0.36 LBS (0.164 KG)
WEIGHT (PACKAGED)        0.7 LBS (0.32 KG)
PRODUCT WARRANTY        10 YEARS
