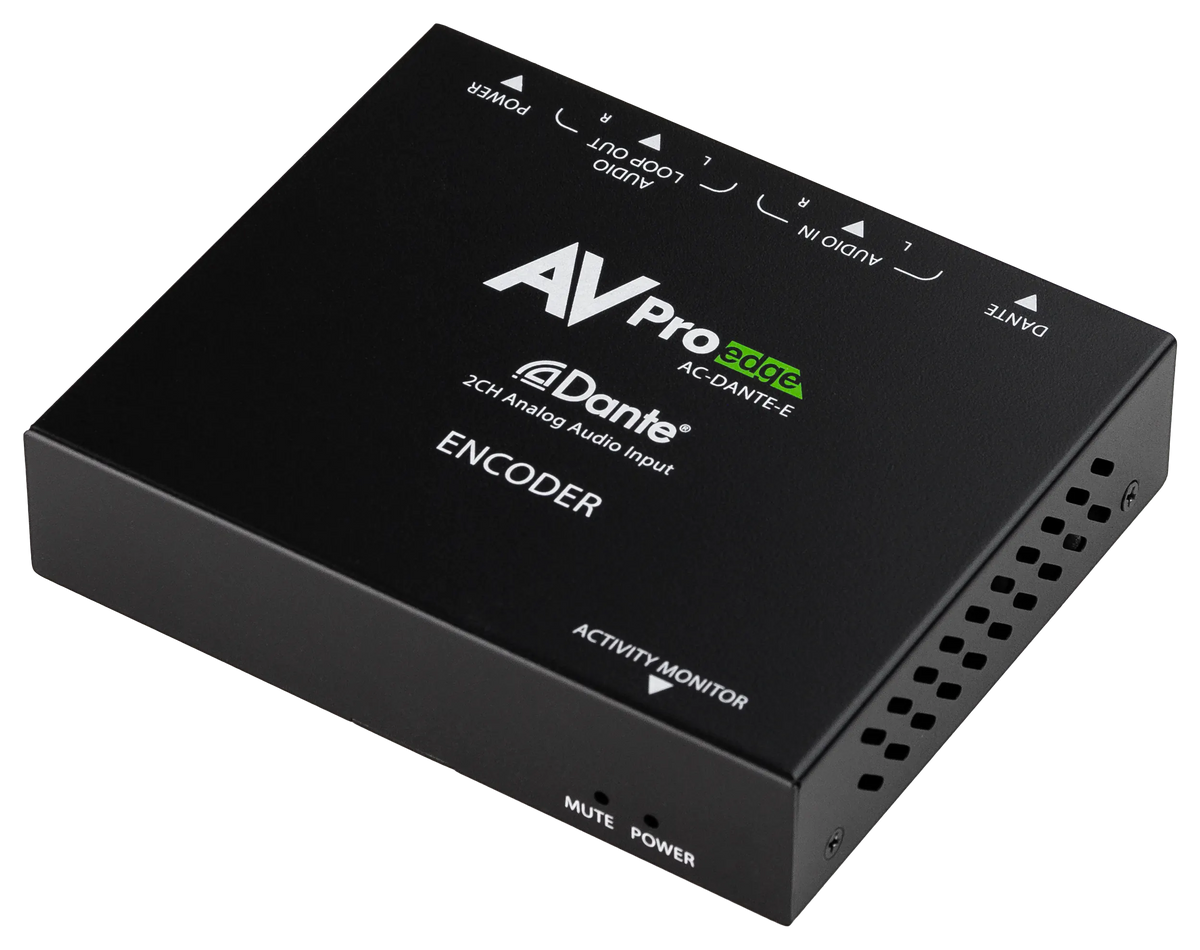

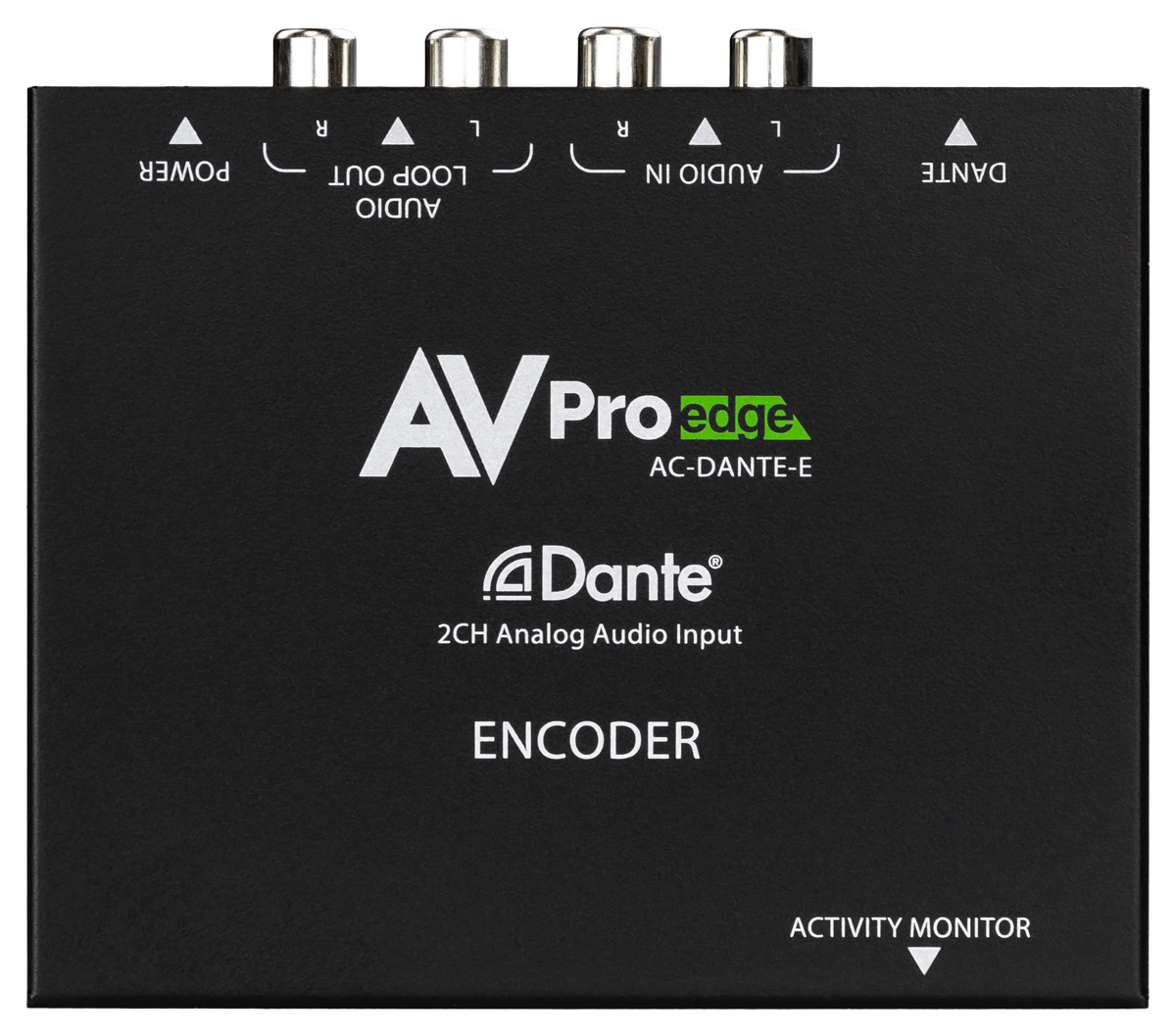

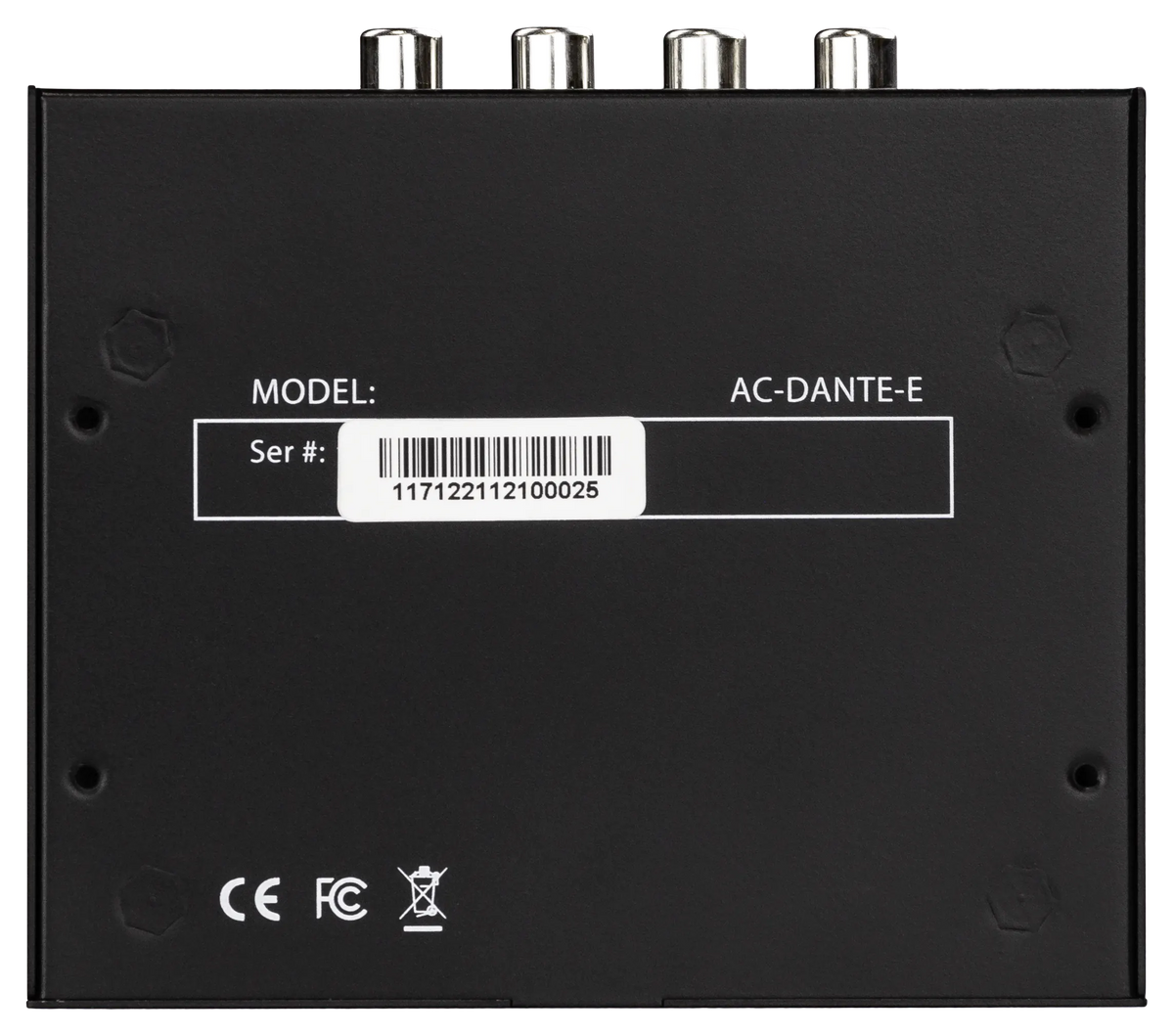

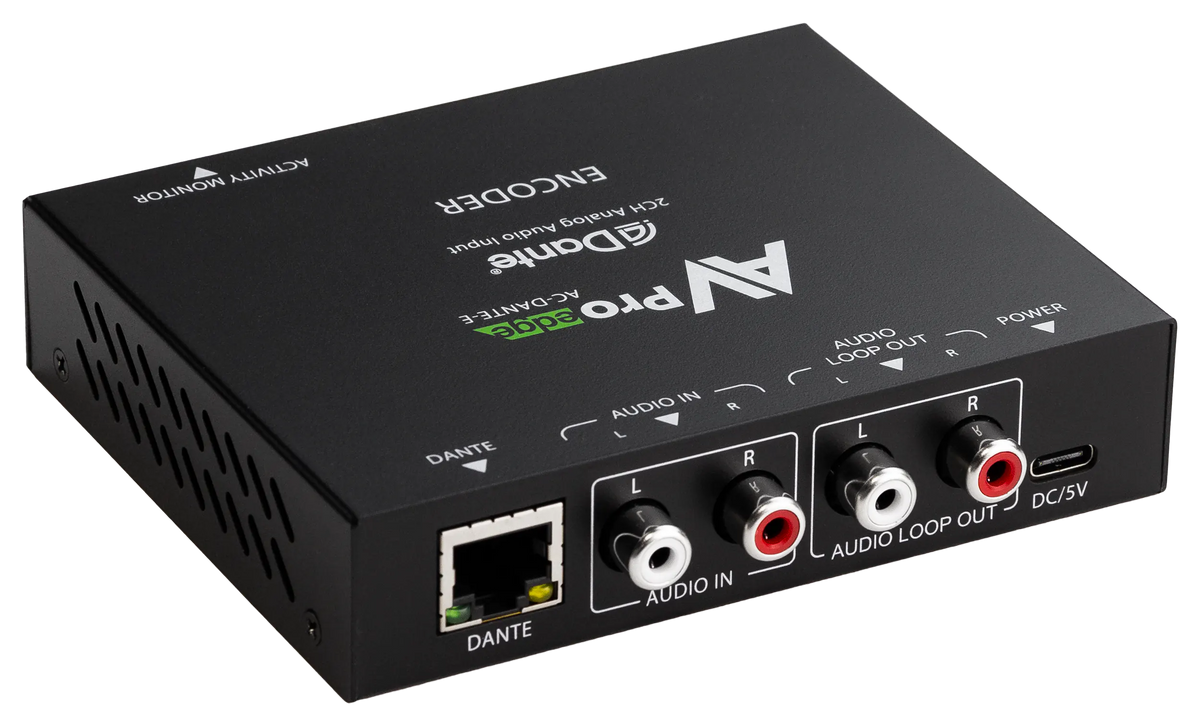

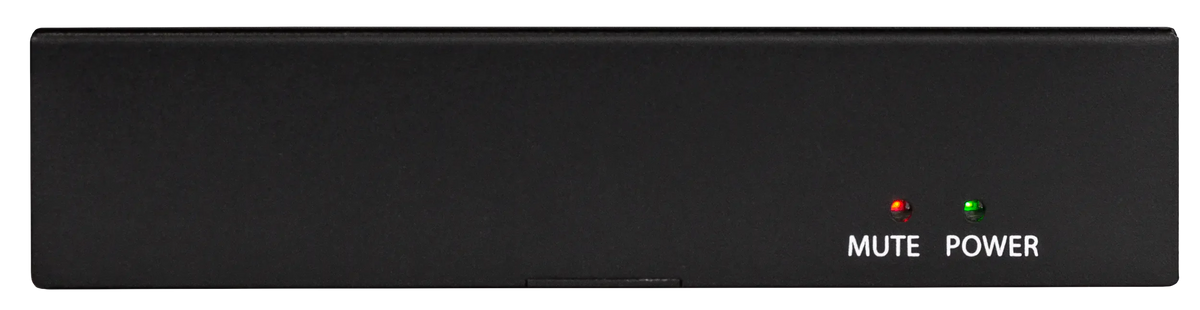

NAME        AC-DANTE-E

AUDIO
FREQUENCY RESPONSE        20HZ TO 20KHZ
ANALOG INPUT VOLTAGE        UNBALANCED 1 VRMS (2.828 VP-P)
LOOPBACK OUTPUT VOLTAGE        UNBALANCED 1 VRMS (2.828 VP-P)
FORMAT        LPCM
SUPPORTED SAMPLE RATES        44.1, 48, 88.2, 96 KHZ
SUPPORTED BIT DEPTHS        16, 24, 32
LATENCY        CONFIGURABLE 1, 2, 5 MS

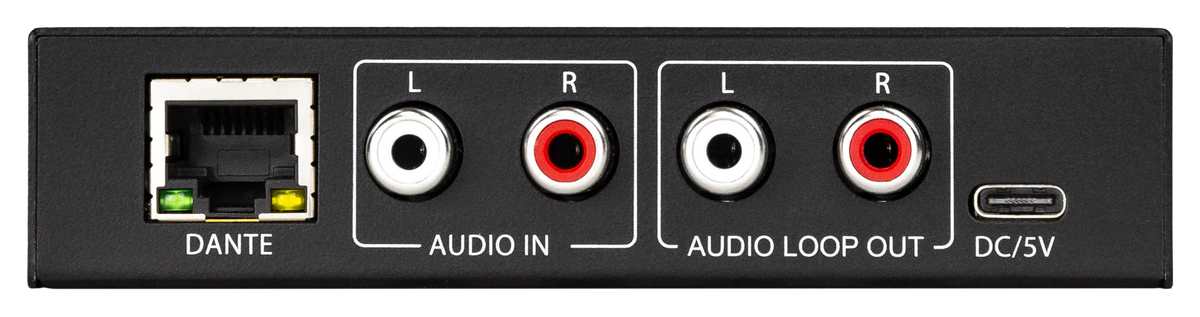

ANALOG AUDIO CONNECTIONS
ANALOG INPUT        (1) STEREO RCA
ANALOG OUTPUT        (1) STEREO RCA
DANTE NETWORK AUDIO        (1) RJ-45

POWER

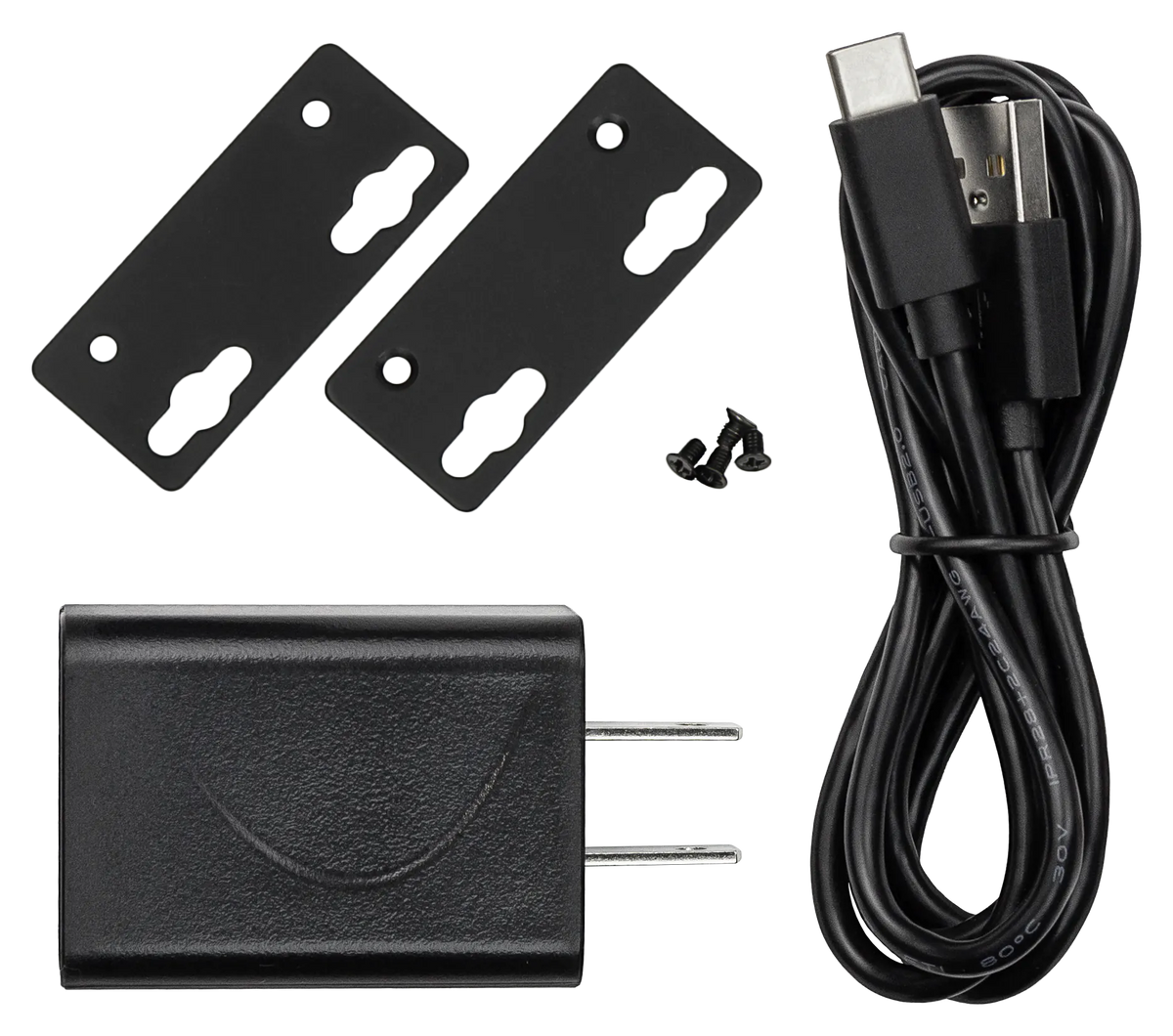

USB TYPE-C POWER ADAPTER        INPUT: 100-240VAC, 50/60HZ, 0.5A | OUTPUT: 5VDC, 1A

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
OPERATING HUMIDITY        5–90% RH (NO CONDENSATION)

DIMENSIONS
MOUNTING        FURNITURE MOUNT SUPPORT
DIMENSIONS (UNIT W/D/H)        MM: 110 X 96 X 25 | INCH: 4.33 X 3.78 X 1
DIMENSIONS (PACKAGED W/D/H)        MM: 193 X 136 X 41 | INCH: 7.6 X 5.35 X 1.62
WEIGHT (UNIT)        0.5 LBS (0.23 KG)
WEIGHT (PACKAGED)        0.85 LBS (0.38 KG)
PRODUCT WARRANTY        10 YEARS
