Name        AC-MV-41

Video
Video Resolutions        Up to 4K60
HDR Formats/Resolutions        420, 422, 444 (10 AND 12 DEEP COLOR)
                               HDR10, HDR10+, DOLBY VISION, HLG
Color Space        YUV (Component), RGB
                   (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling        4:4:4, 4:2:2, 4:2:0 Supported
Deep Color        Up to 16 bit

Audio
Audio Formats Supported HDMI        PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1
                                   Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
                                   DTS-X, Dolby Atmos
Analog Input Voltage        0.8 VRMS; 2.3 Vp-p
Audio Formats Supported Extracted (2CH Port)        PCM 2 CH
Analog Output Peak Voltage        1.39 VRMS; 3.94 Vp-p

Distance
HDMI In/Out (4k60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)        UP TO 130 FEET (USING BULLET TRAIN AOC)

Other
Bandwidth        18 Gbps (TMDS)
HDCP        HDCP 2.3 and Earlier

Control
Control        Lan, RS232
Drivers        C4, RTI, ELAN (for more - see Drivers Page)
AVPro WebUI        YES

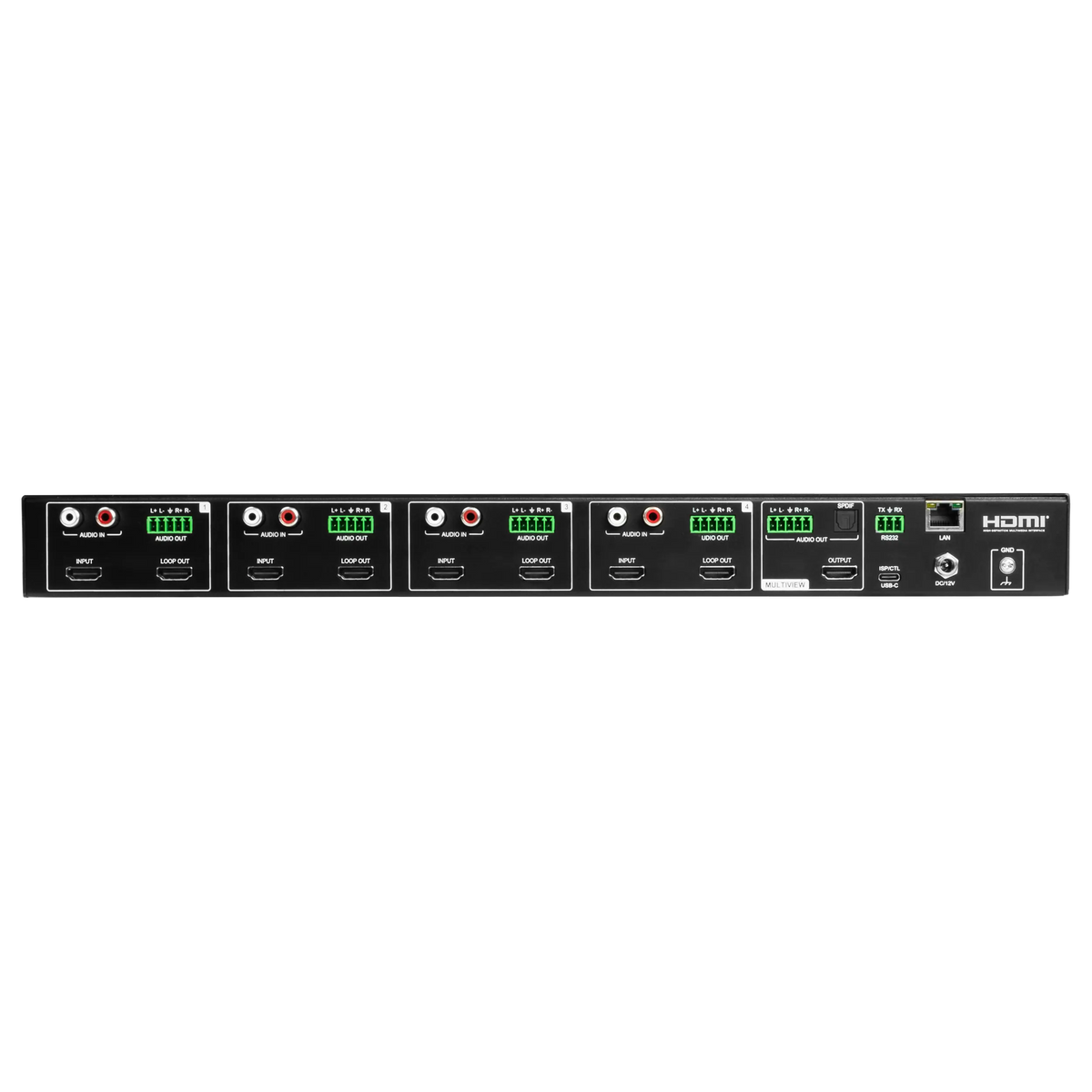

Ports
HDMI        Type A
LAN        RJ45 w/ Web Interface/ Control
Audio (Analog Input)        RCA
Audio (Extracted Analog)        5 PIN Terminal Block (Balanced)
RS232        3 Pin Terminal Block

Environmental
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Humidity Range        5-90% RH (No Condensation)

Power
Power Consumption (Total)        23.04W (12V 1.92A)
Power Supply        Input: AC 100-240V~ 50/60HZ
                    Output: DC 12V 5A

Dimensions
Dimensions (Unit Only Length/Width/Height)        mm: 225.55 X 439.67 X 44.45
                                                 in: 8.88 X 17.31 X 1.75
Dimensions (Packaged Length/Width/Height)        mm: 374.65 X 569.98 X 123.95
                                                in: 14.75 X 22.44 X 4.88

Weight (Unit)        7 Lbs (3.18 Kg)
Weight (Packaged)        9.6 Lbs (4.35Kg)
