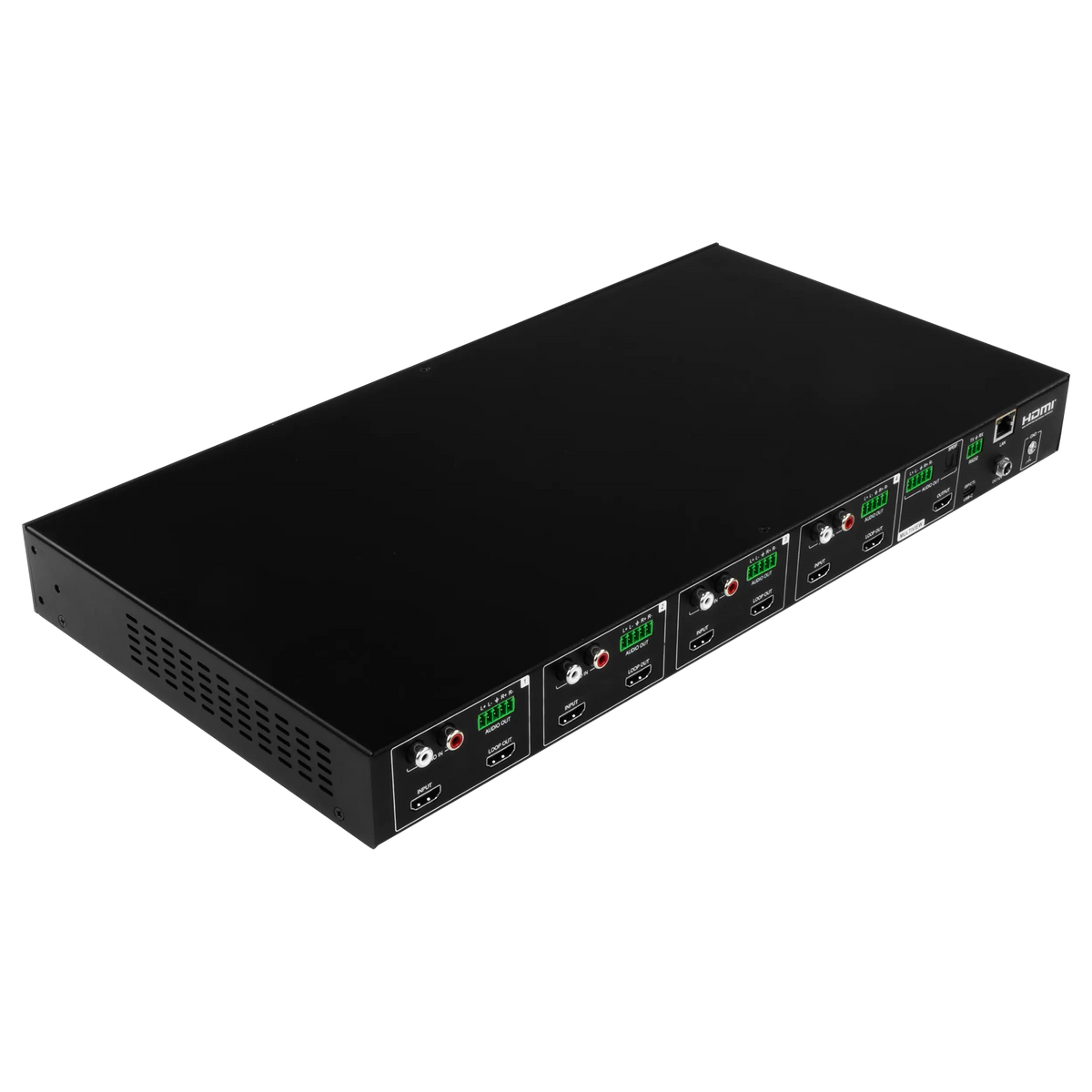

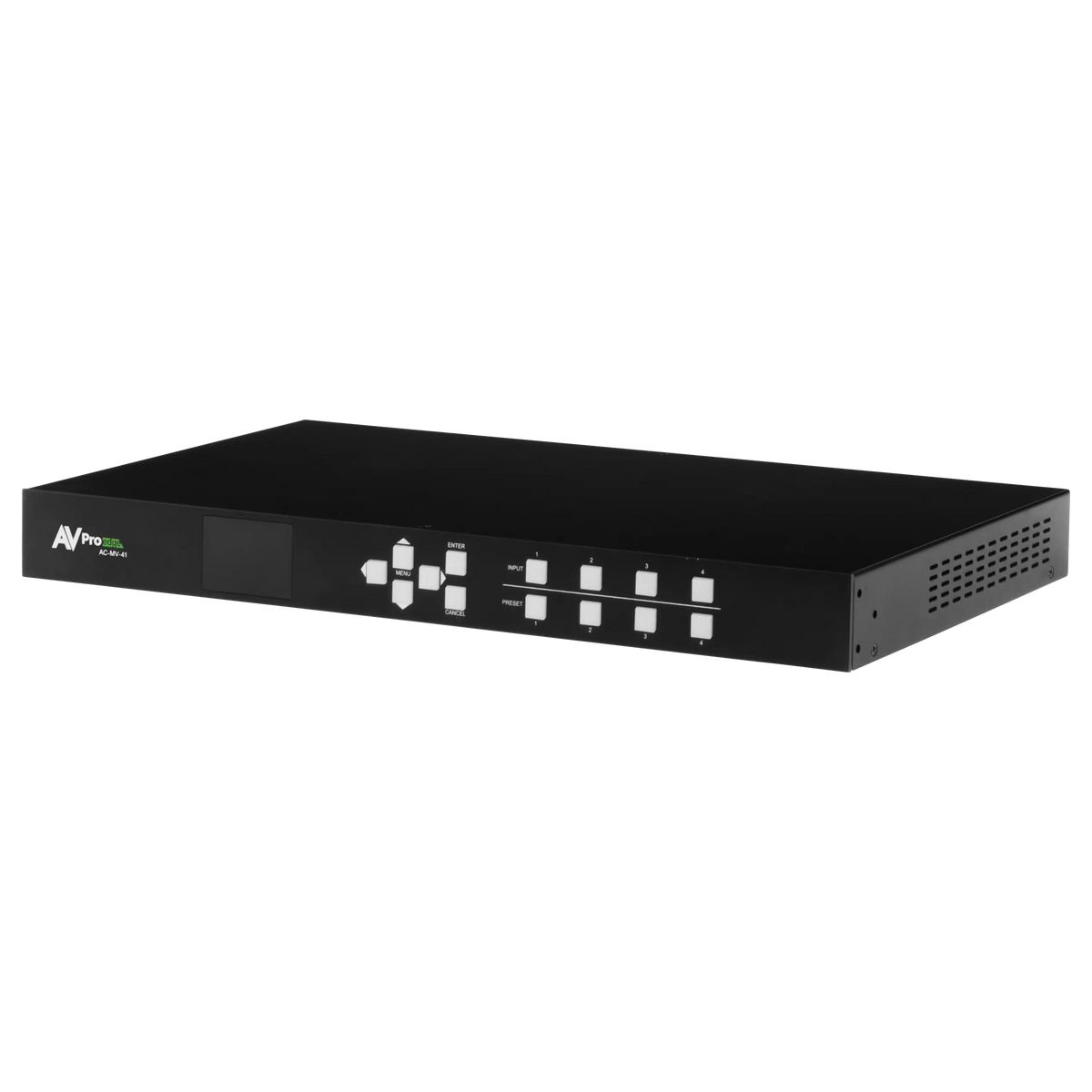

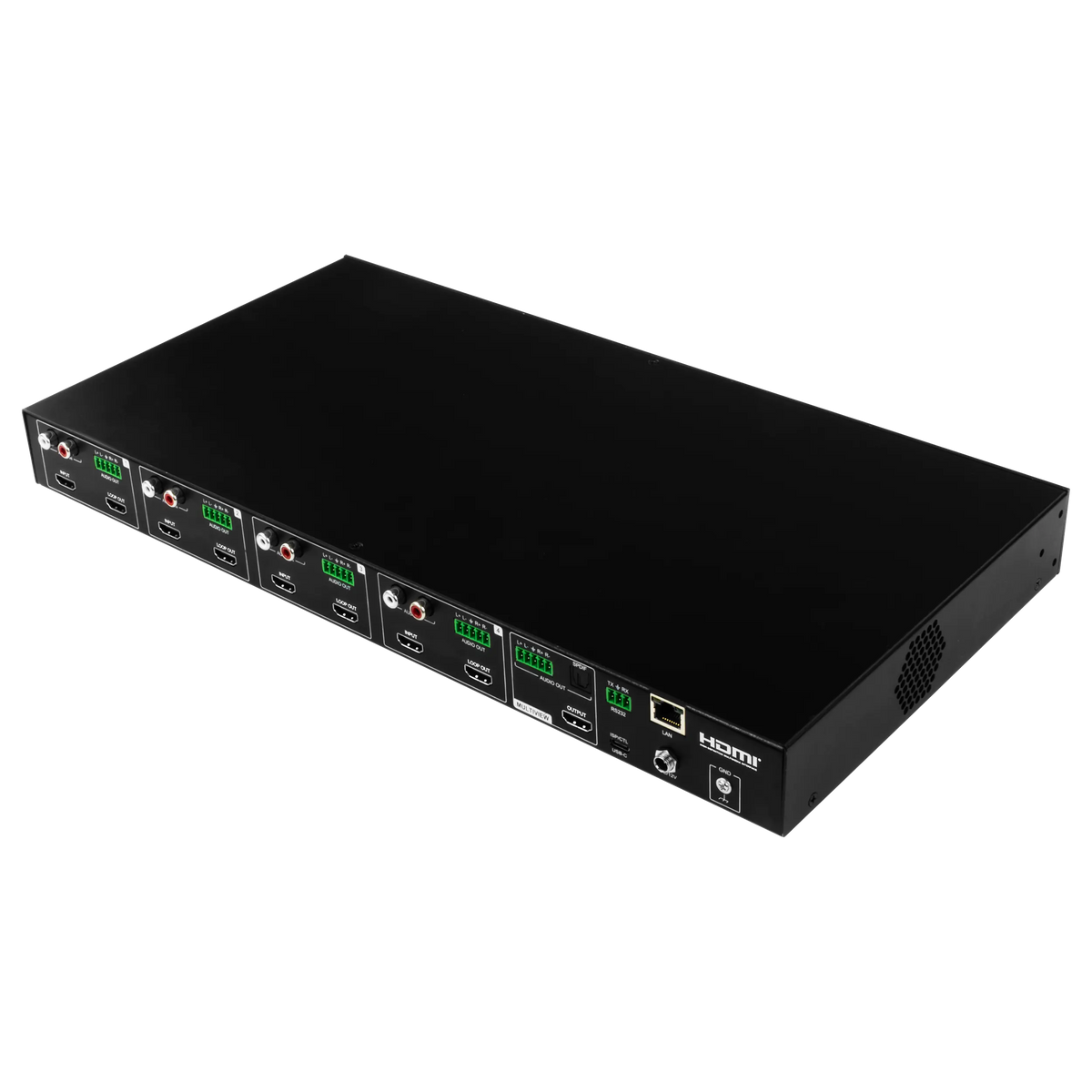

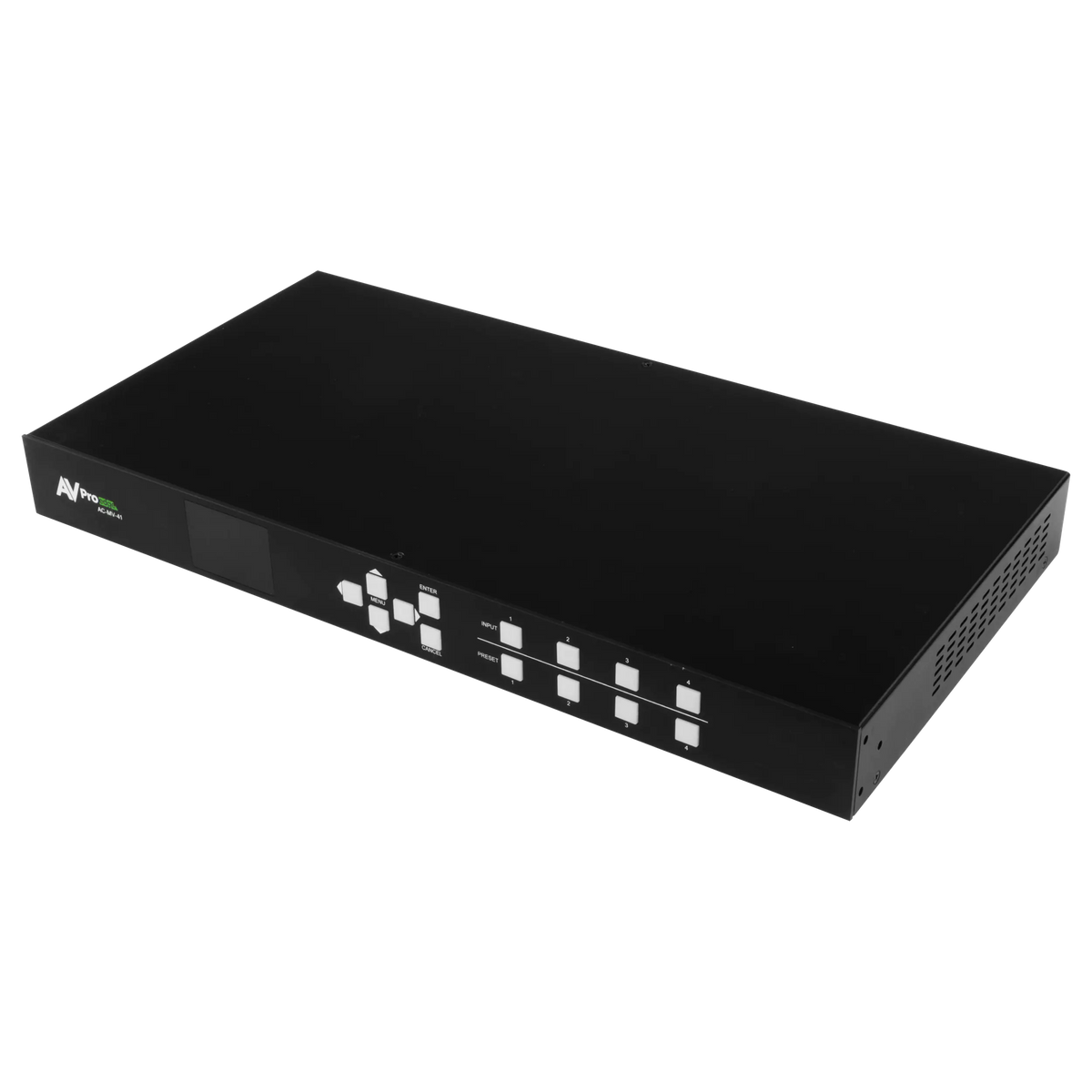

NAME        AC-MV-41

VIDEO
VIDEO RESOLUTIONS        UP TO 4K60
HDR FORMATS / RESOLUTIONS        4:2:0, 4:2:2, 4:4:4 (10 & 12 BIT), HDR10, HDR10+, DOLBY VISION, HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC.601, REC.709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
DEEP COLOR        UP TO 16 BIT

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
ANALOG INPUT VOLTAGE        0.8 VRMS (2.3 VP-P)
AUDIO FORMATS EXTRACTED (2CH)        PCM 2 CH
ANALOG OUTPUT PEAK VOLTAGE        1.39 VRMS (3.94 VP-P)

DISTANCE
HDMI IN/OUT (4K60 4:4:4)        UP TO 50 FEET (BULLET TRAIN HDMI)
HDMI IN/OUT (AOC)        UP TO 130 FEET (BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS (TMDS)
HDCP        HDCP 2.3 AND EARLIER

CONTROL
CONTROL        LAN, RS232
DRIVERS        C4, RTI, ELAN
AVPRO WEBUI        YES

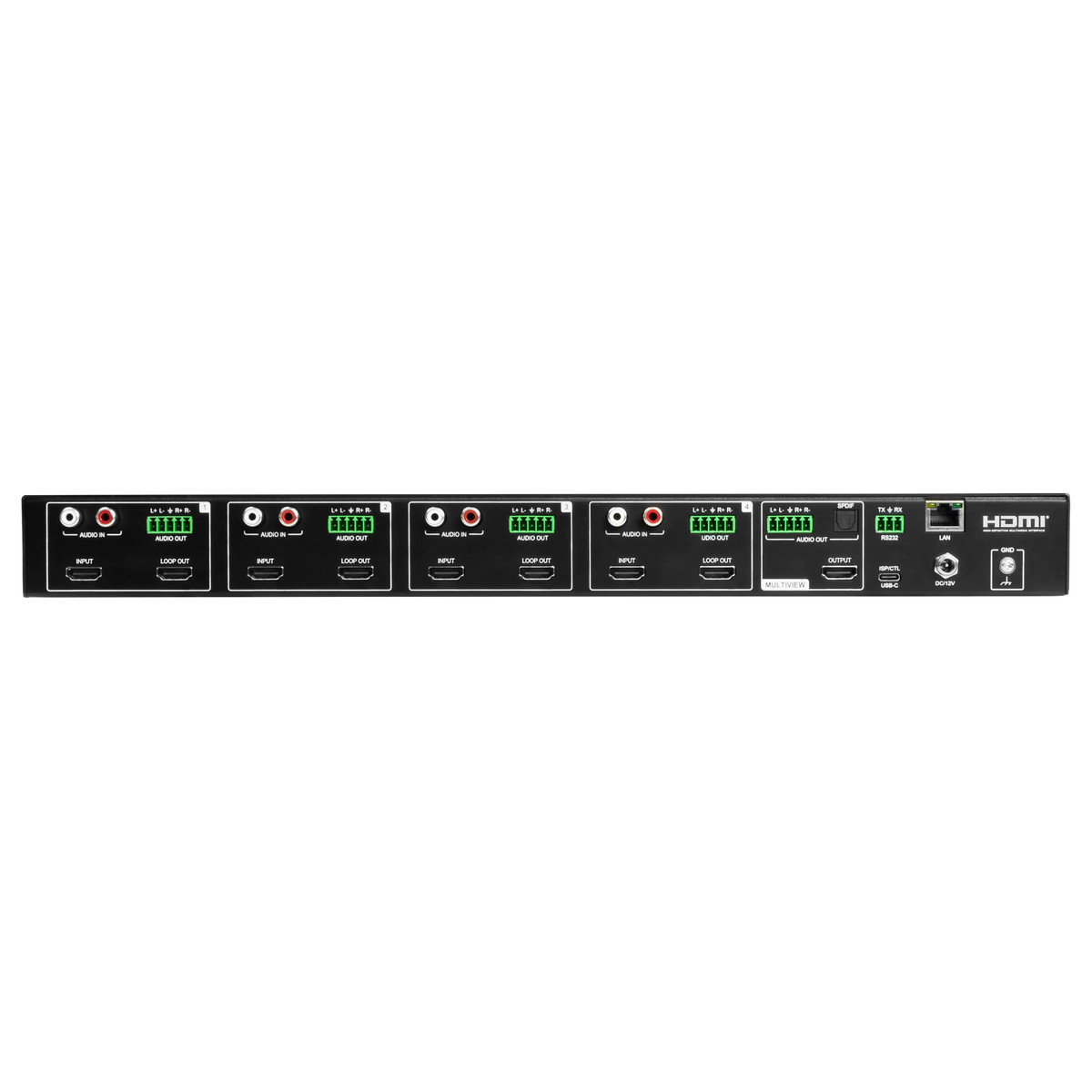

PORTS
HDMI        TYPE A
LAN        RJ45 (WEB INTERFACE / CONTROL)
AUDIO INPUT (ANALOG)        RCA
AUDIO OUTPUT (ANALOG)        5-PIN TERMINAL BLOCK (BALANCED)
RS232        3-PIN TERMINAL BLOCK

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION        23.04W (12V 1.92A)
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 12V 5A

DIMENSIONS
DIMENSIONS (UNIT L/W/H)        MM: 225.55 X 439.67 X 44.45 | IN: 8.88 X 17.31 X 1.75
DIMENSIONS (PACKAGED L/W/H)        MM: 374.65 X 569.98 X 123.95 | IN: 14.75 X 22.44 X 4.88
WEIGHT (UNIT)        7 LBS (3.18 KG)
WEIGHT (PACKAGED)        9.6 LBS (4.35 KG)
