NAME        AC-MX-42

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:4:4
VESA RESOLUTIONS        UP TO DCI 4K (4096X2160), 5K (UP TO 5120X3200)
HDR FORMATS/RESOLUTIONS        420, 422, 444 (10 & 12 DEEP COLOR), HDR10, HDR10+, DOLBY VISION, HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
DEEP COLOR        UP TO 16 BIT (1080), UP TO 12 BIT (4K)

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (TOSLINK)        PCM 2.0 CH, LPCM 6 CH, LPCM 7 CH, DOLBY DIGITAL, DOLBY DIGITAL PLUS
AUDIO FORMATS SUPPORTED (2CH PORT)        PCM 2 CH
AUDIO EXTRACTION LOCATION        FOLLOWS OUTPUT (SELECTABLE)

DISTANCE
HDMI IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS
HDCP        HDCP 2.3 AND EARLIER

CONTROL
PORTS        LAN, RS232, IR WINDOW
DRIVERS        C4, RTI, ELAN, CRESTRON, URC (SEE AVPROEDGE.COM/DRIVERS)
LAN WEB OS        YES

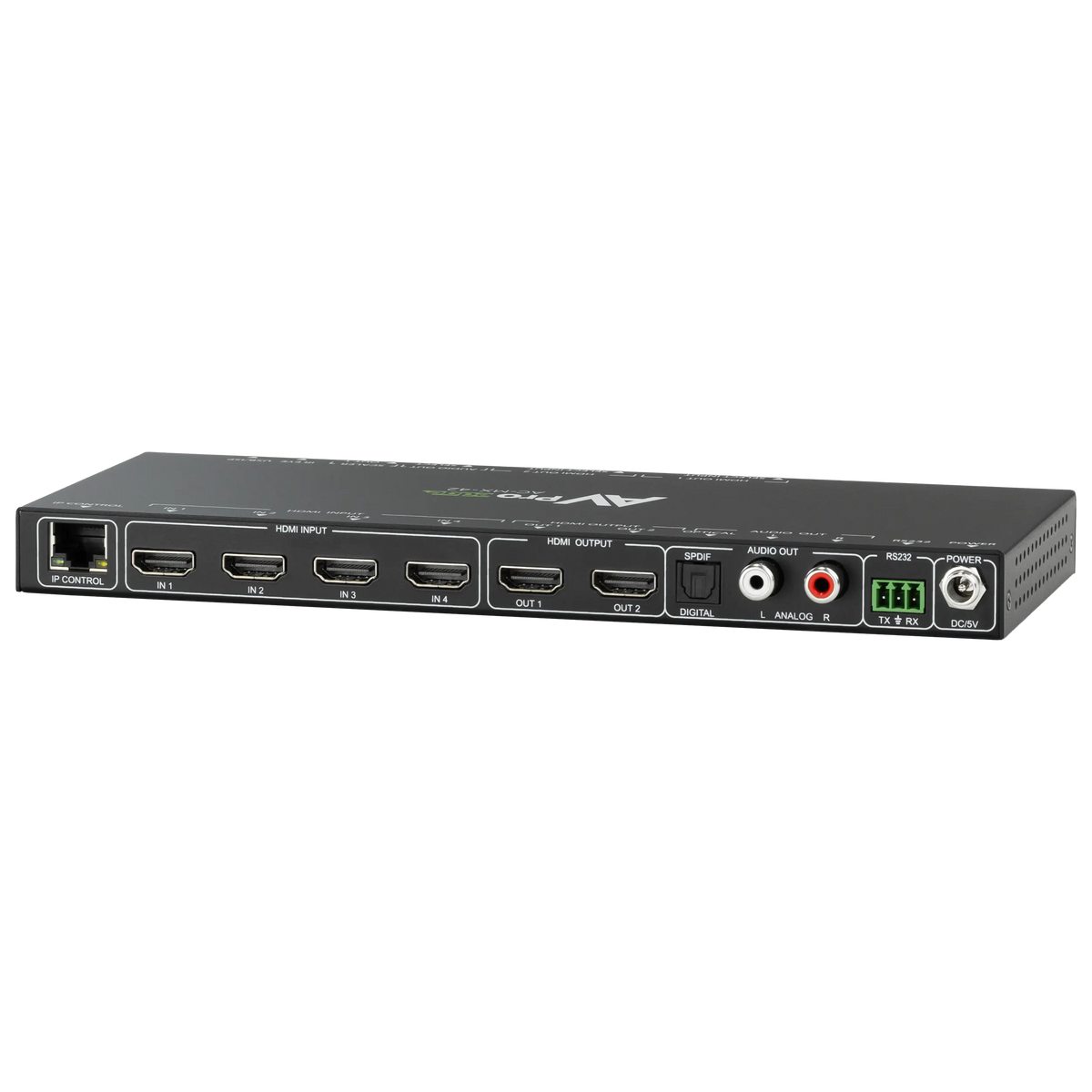

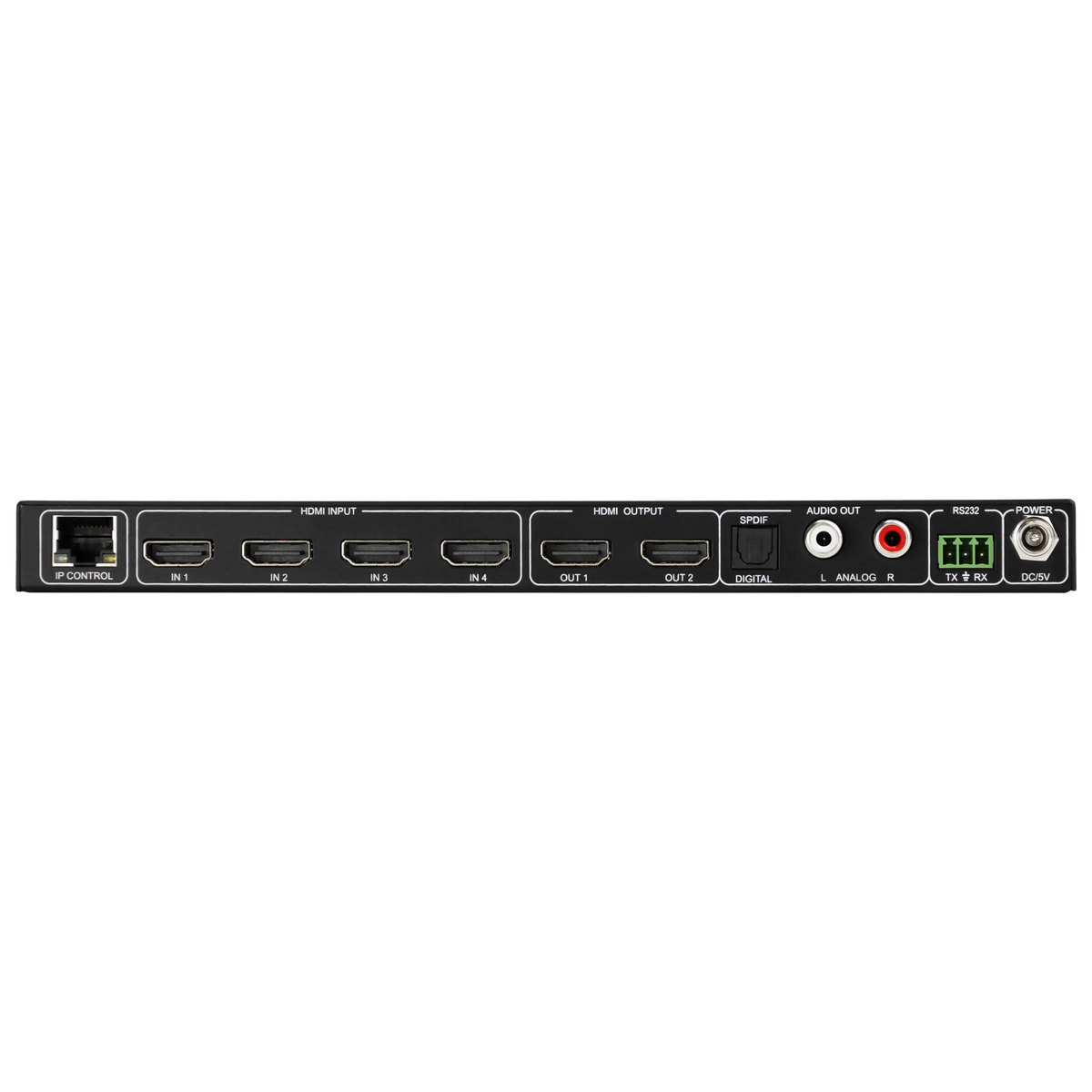

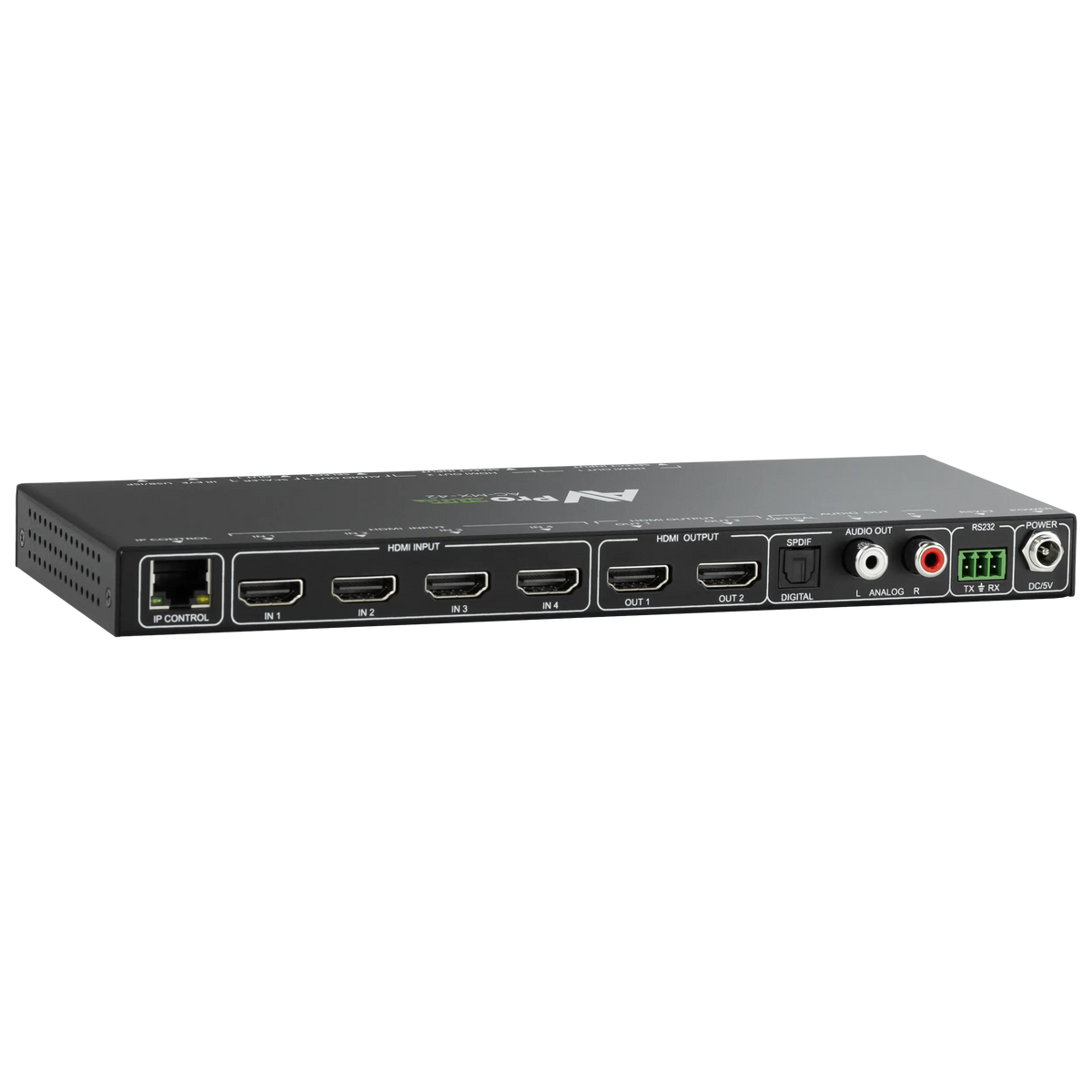

PORTS
HDMI        TYPE A
LAN        RJ45 W/ WEB INTERFACE / CONTROL
AUDIO (EXTRACTED DIGITAL)        TOSLINK
AUDIO (EXTRACTED ANALOG)        L/R AUDIO
IR RX        WINDOW ONLY (REMOTE INCLUDED)
RS232        3-PIN TERMINAL BLOCK

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        7W MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 5V 2A

DIMENSIONS
DIMENSIONS (UNIT H/D/W)        MM: 20.5 X 94 X 232.98 | INCH: 0.9 X 3.7 X 9.17
DIMENSIONS (PACKAGED H/D/W)        MM: 76.2 X 184.1 X 317.5 | INCH: 3 X 7.25 X 12.5
WEIGHT (UNIT)        2 LBS (0.9 KG)
WEIGHT (PACKAGED)        5 LBS (2.26 KG)
