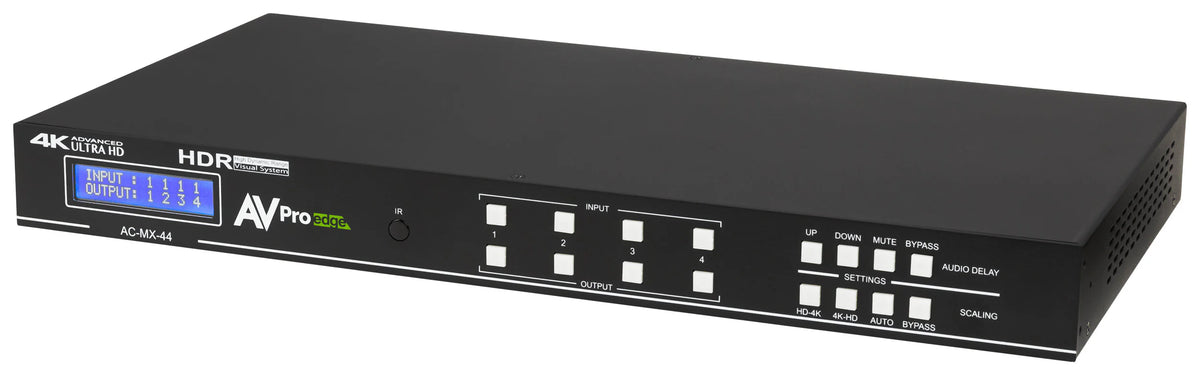

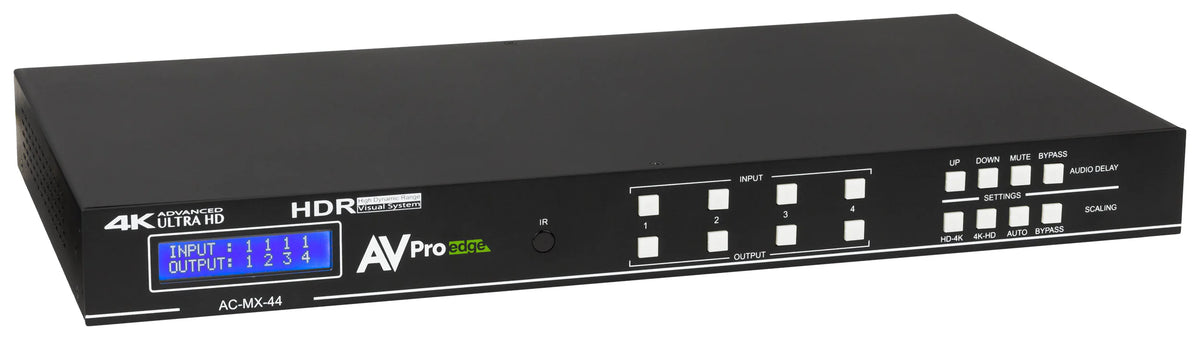

NAME        AC-MX-44

VIDEO
VIDEO RESOLUTIONS        UP TO 4K 60HZ 4:4:4
VESA RESOLUTIONS        UP TO DCI 4K (4096X2160)
HDR FORMATS/RESOLUTIONS        420, 422, 444 (10 & 12 DEEP COLOR), HDR10, HDR10+, DOLBY VISION, HLG
COLOR SPACE        YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
CHROMA SUBSAMPLING        4:4:4, 4:2:2, 4:2:0 SUPPORTED
DEEP COLOR        UP TO 16 BIT (1080), UP TO 12 BIT (4K)
SCALERS (HDMI) PER OUTPUT        4K TO 1080P DOWN-SCALING (RESOLUTION ONLY), 4:4:4 TO 4:2:0 (SEE MANUAL)

AUDIO
AUDIO FORMATS SUPPORTED HDMI        PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL PLUS, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DTS-X, DOLBY ATMOS
AUDIO FORMATS SUPPORTED (TOSLINK)        PCM 2.0 CH, LPCM 6 CH, LPCM 7 CH, DOLBY DIGITAL, DOLBY DIGITAL PLUS
AUDIO FORMATS SUPPORTED (2CH PORT)        PCM 2 CH
AUDIO EXTRACTION LOCATION        BIND TO INPUT, BIND TO OUTPUT, OR MATRIX (INDEPENDENT)
AUDIO DELAY (PER OUTPUT)        UP TO 630MS

DISTANCE
HDMI IN/OUT (4K60 4:4:4)        UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI IN/OUT (AOC CABLE)        UP TO 130 FEET (USING BULLET TRAIN AOC)

OTHER
BANDWIDTH        18 GBPS
HDCP        HDCP 2.3 AND EARLIER

CONTROL
PORTS        LAN, RS232, IR
DRIVERS        C4, RTI, ELAN, CRESTRON, URC (SEE DRIVERS PAGE)
LAN WEB OS        YES

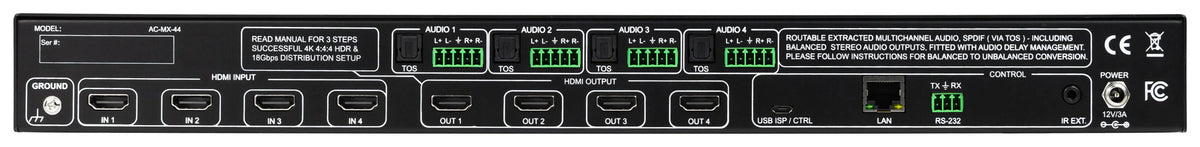

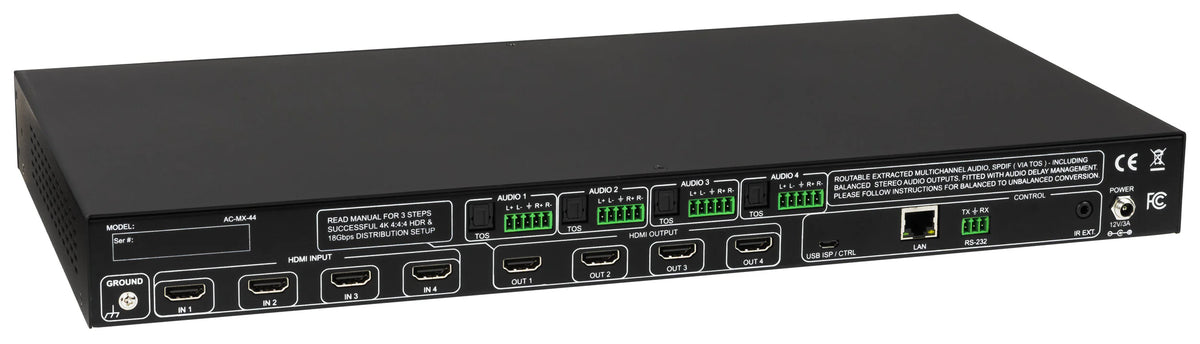

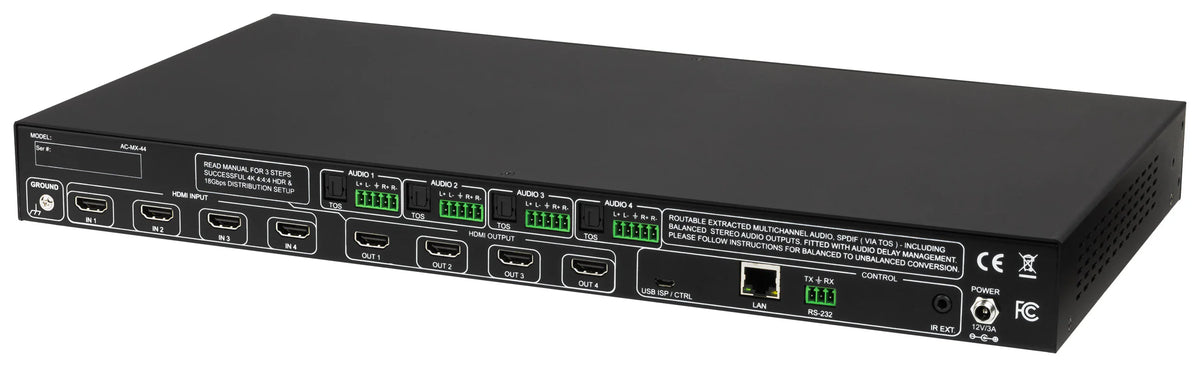

PORTS
HDMI        TYPE A
LAN        RJ45 W/ WEB INTERFACE / CONTROL
AUDIO (EXTRACTED DIGITAL)        TOSLINK
AUDIO (EXTRACTED ANALOG)        5 PIN TERMINAL BLOCK (BALANCED)
IR EXTENSION RX        3.5MM STEREO (3 CONDUCTOR)
RS232        3 PIN TERMINAL BLOCK

ENVIRONMENTAL
OPERATING TEMPERATURE        23 TO 125°F (-5 TO 51°C)
STORAGE TEMPERATURE        -4 TO 140°F (-20 TO 60°C)
HUMIDITY RANGE        5–90% RH (NO CONDENSATION)

POWER
POWER CONSUMPTION (TOTAL)        38W MAX
POWER SUPPLY        INPUT: AC 100-240V ~ 50/60HZ | OUTPUT: DC 12V 4A

DIMENSIONS
DIMENSIONS (UNIT H/D/W)        MM: 44.45 X 225.43 X 438.15 | INCH: 1.75 X 8.875 X 17.25
DIMENSIONS (PACKAGED H/D/W)        MM: 88.9 X 336.55 X 495.3 | INCH: 3.5 X 13.25 X 19.5
RACK UNITS        1U
WEIGHT (UNIT)        6.2 LBS (2.81 KG)
WEIGHT (PACKAGED)        8.32 LBS (3.78 KG)
