Name        AC-MXNET-10G-TCVR

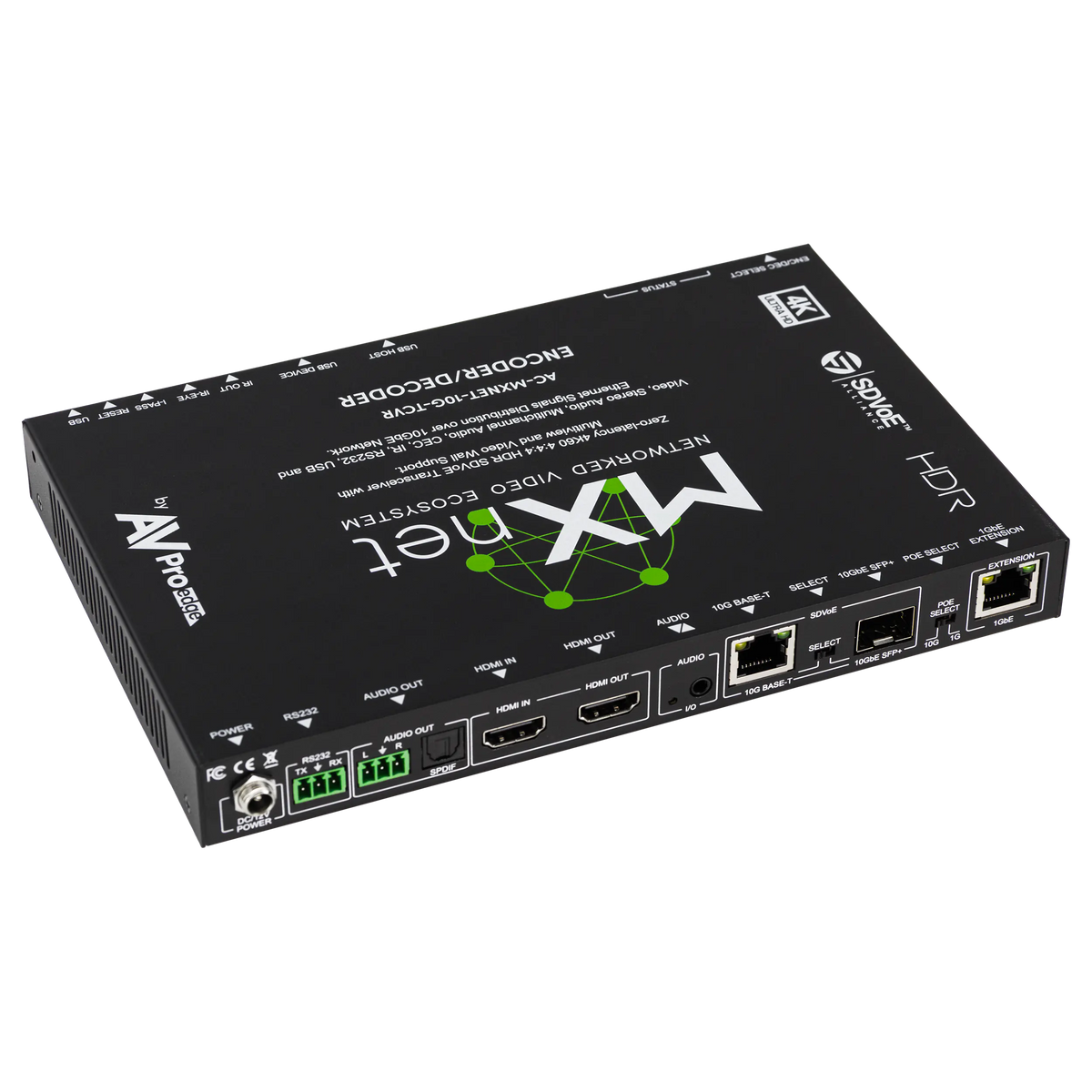

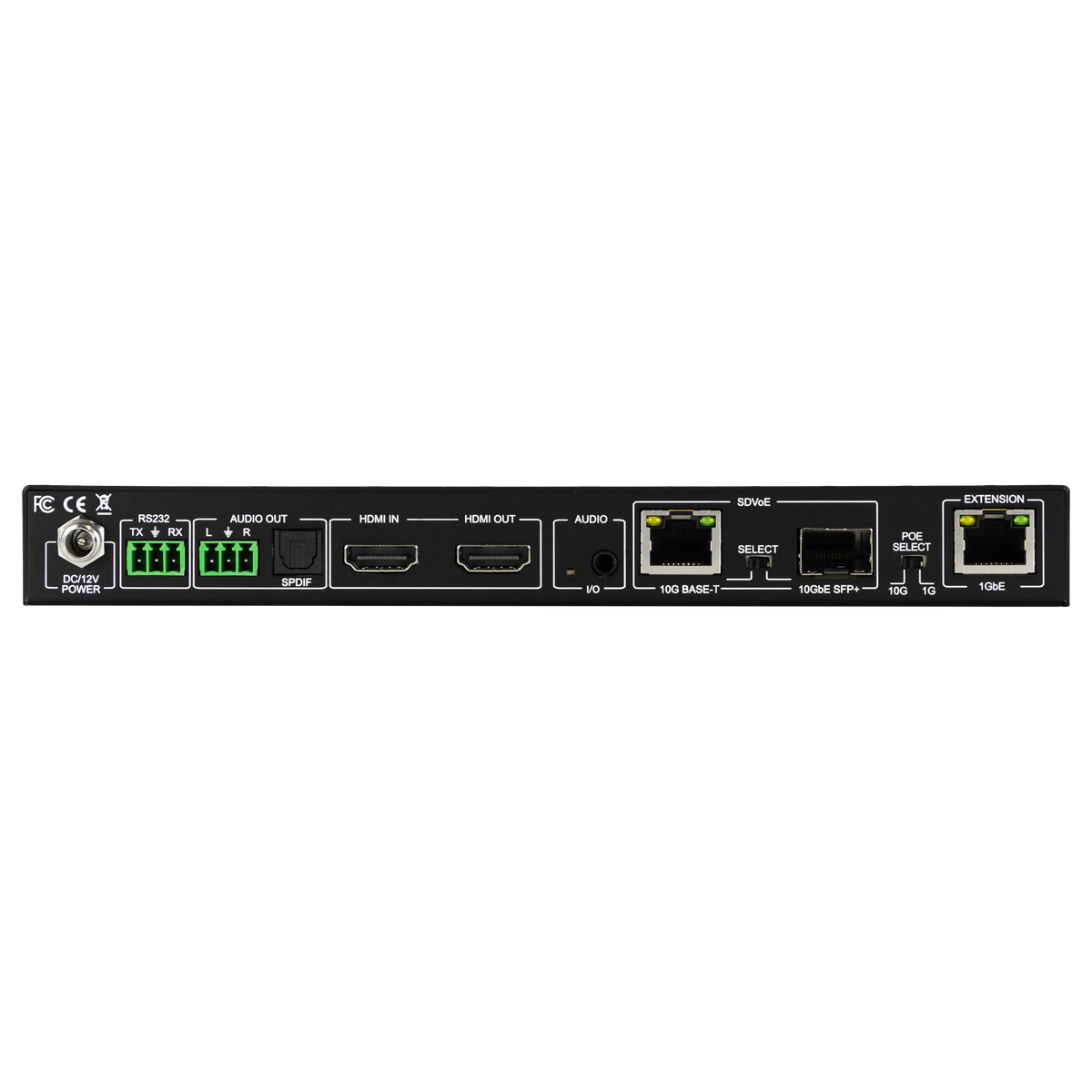

Ethernet        (1) 10G female RJ45 port for SDVoE transmissions (1) 1G female RJ45 port for Ethernet extension or CBOX control. Both are PoE compatible.
SFP+        (1) 10G SFP+ Port used for SDVoE transmissions
HDMI        (1) HDMI input (1) HDMI output
Audio        (1) TOSLINK (1) x 3 Pin Terminal Block (1) 3.5mm female stereo jack. It can be audio input or audio output, depending on if TCVR is in Encoder or Decoder mode respectively.

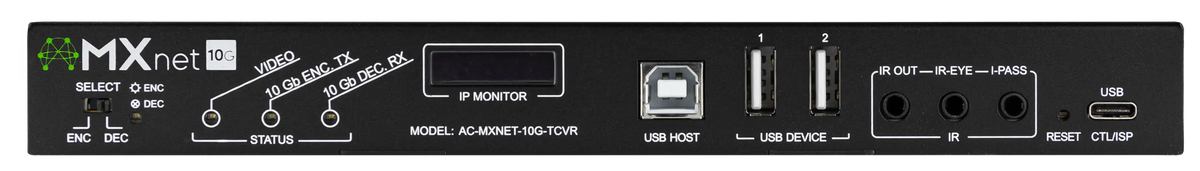

IR        (1) 3.5mm IR OUT Port (1) 3.5mm IR-EYE Port (1) 3.5mm I-PASS Port
RS232        (1) x 3 Pin Terminal Block for MXNet System Control

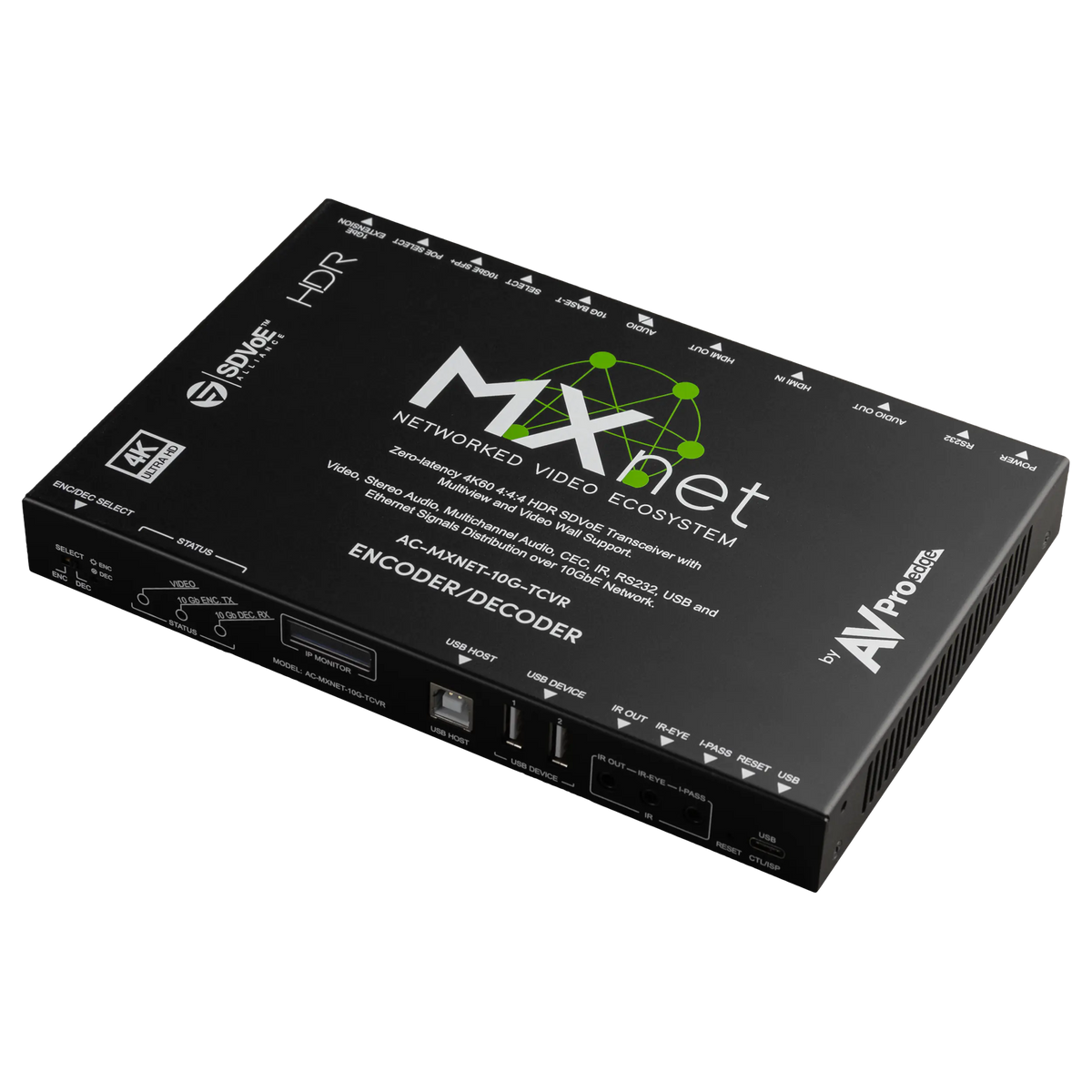

USB        (1) USB Type-C for MXNet Service (1) USB Type-B (2) USB Type-A
Distance - Ethernet        100 Meters/330 Feet over CAT 6a
Distance - SFP+ and Fiber        10G SFP+ AOC cable up to 3 meters 10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters 10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers
Distance - SFP+ and Copper        10G SFP+ Copper up to 100 meters/330 Feet over CAT 6a
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Operating Humidity        5-90% RH (No Condensation)
Power Consumption        Encoder ≈ 9.1W, Decoder ≈ 9.2W
PoE (Power over Ethernet)        IEEE 802.3af (15.4W)
Power Supply Unit        Input: AC 120-240V, 50/60Hz, 0.8A Output: DC 12V, 2A
Thermal Dissipation        Encoder 39.32 BTU/hr, Decoder 33.56 BTU/hr
Mounting        Rack and Furniture mount support
Dimensions (Unit)        mm: 215 × 140 × 25 inch: 8.46 × 5.51 × 0.98
Dimensions (Packaged)        mm: 310 × 180 × 54 inch: 12.2 × 7.09 × 2.13
Weight (Unit)        1.76 lbs./0.8 kg
Weight (Packaged)        2.25 lbs./1.02 kg
Regulatory        CE/FCC
Product Warranty        10 Years
