Name        AC-MXNET-1G-E

Encoding
Video Codec        Proprietary Codec based on M-JPEG
Audio Codec        Proprietary Codec
Latency        16ms@60Hz
Streaming Protocols        TCP, UDP, IP, IGMP-V2
Copy Protection        HDCP 2.x and earlier

Video Input/Ingestion
Signal Type        DVI 1.0 (ingested, outputs as HDMI), HDMI 2.0b
Video Resolution        720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@30Hz
Chroma Subsampling        4:4:4, 4:2:2, 4:2:0 (Compresses to RGB output)
RGB        -
Bit Depth per Color        1080p (8-, 10-bit), 4K (8-, 10-bit) (Compresses to 8-bit output)
Visually Lossless        1080p@60Hz SDR RGB (8-bit), 4K@30Hz SDR RGB (8-bit)

Audio
Audio Format (end to end)        PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1
                                Dolby Digital Plus, DTS 5.1, DTS–ES, DTS–HD Master Audio
Audio Format (HDMI Loopout)        Same as End to End, with Dolby MAT 8-CH
Embedded Audio        Stereo Analog Audio (3.5 mm jack)
De-Embedded Audio        Balanced Stereo Analog Audio (5-pin Phoenix connector)

Communication/Control of External Devices
USB        HID-Compliant
Serial/RS-232        Bi-directional Device Control / Monitoring
IR        Bi-directional Device Control / Extension
HDMI        HDCP 2.x, EDID Management (Encoder), CEC (Decoder)

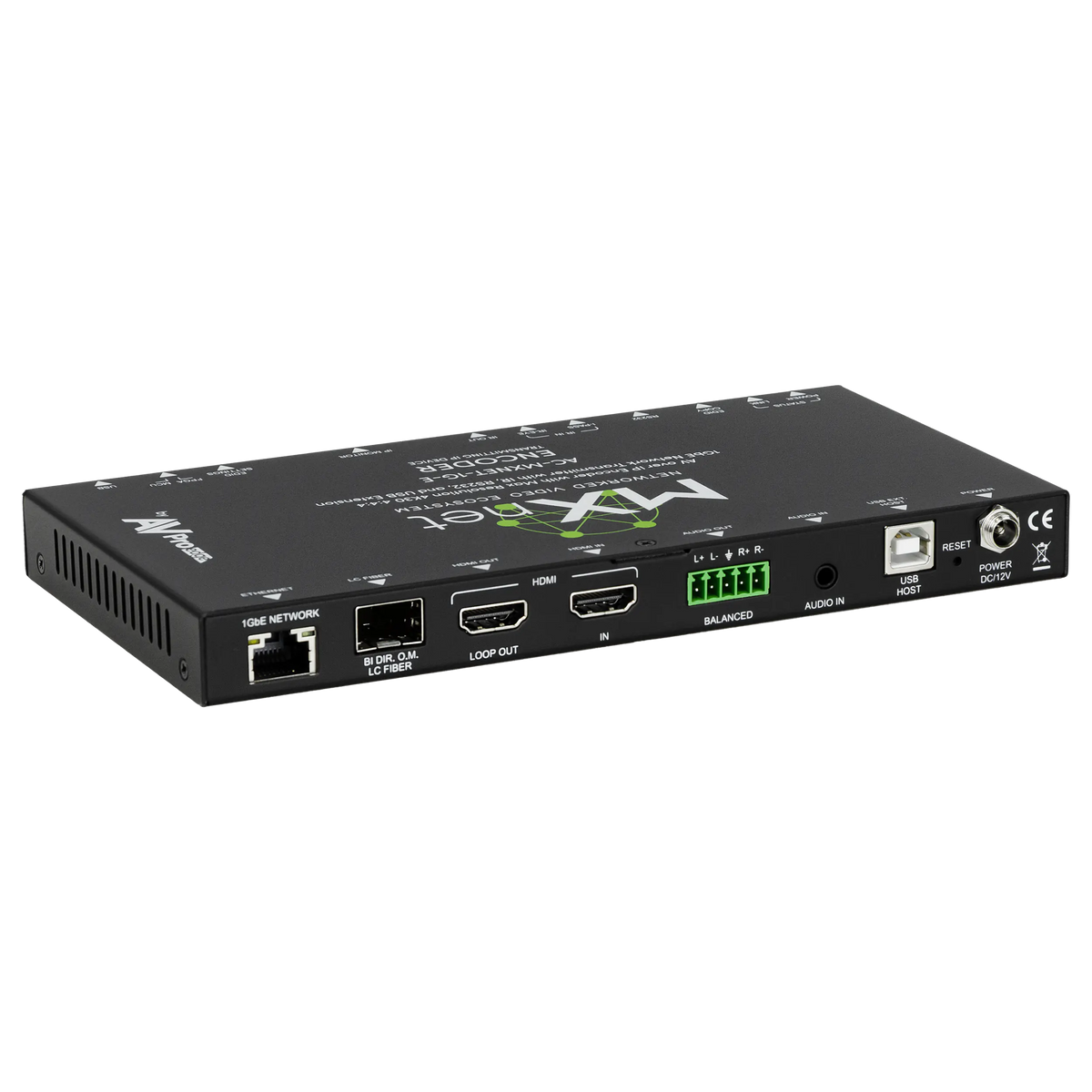

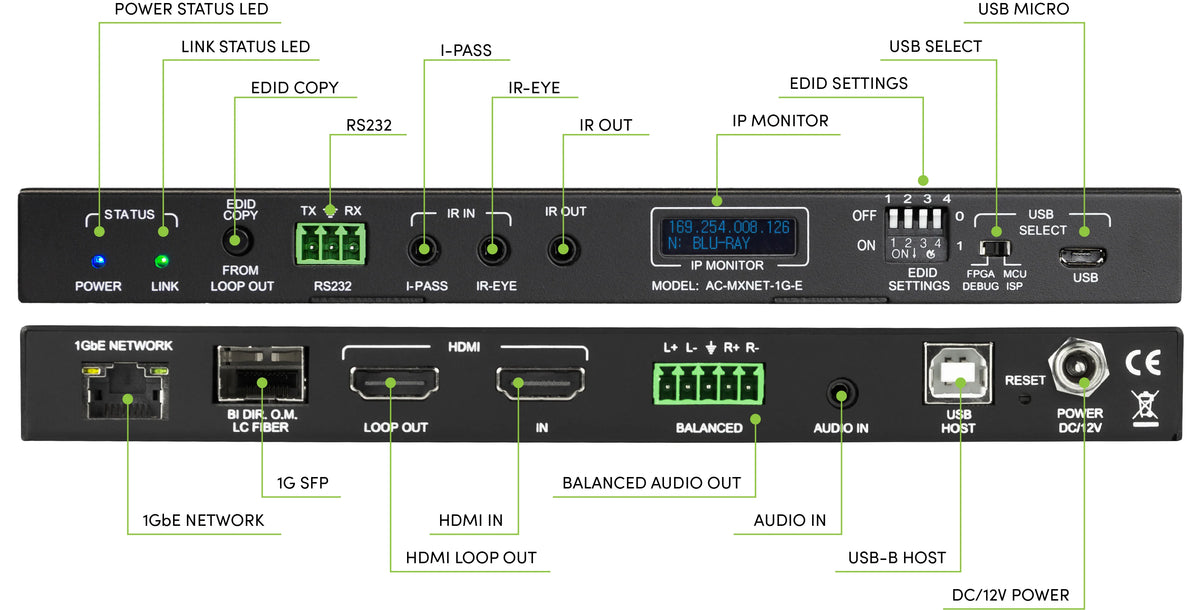

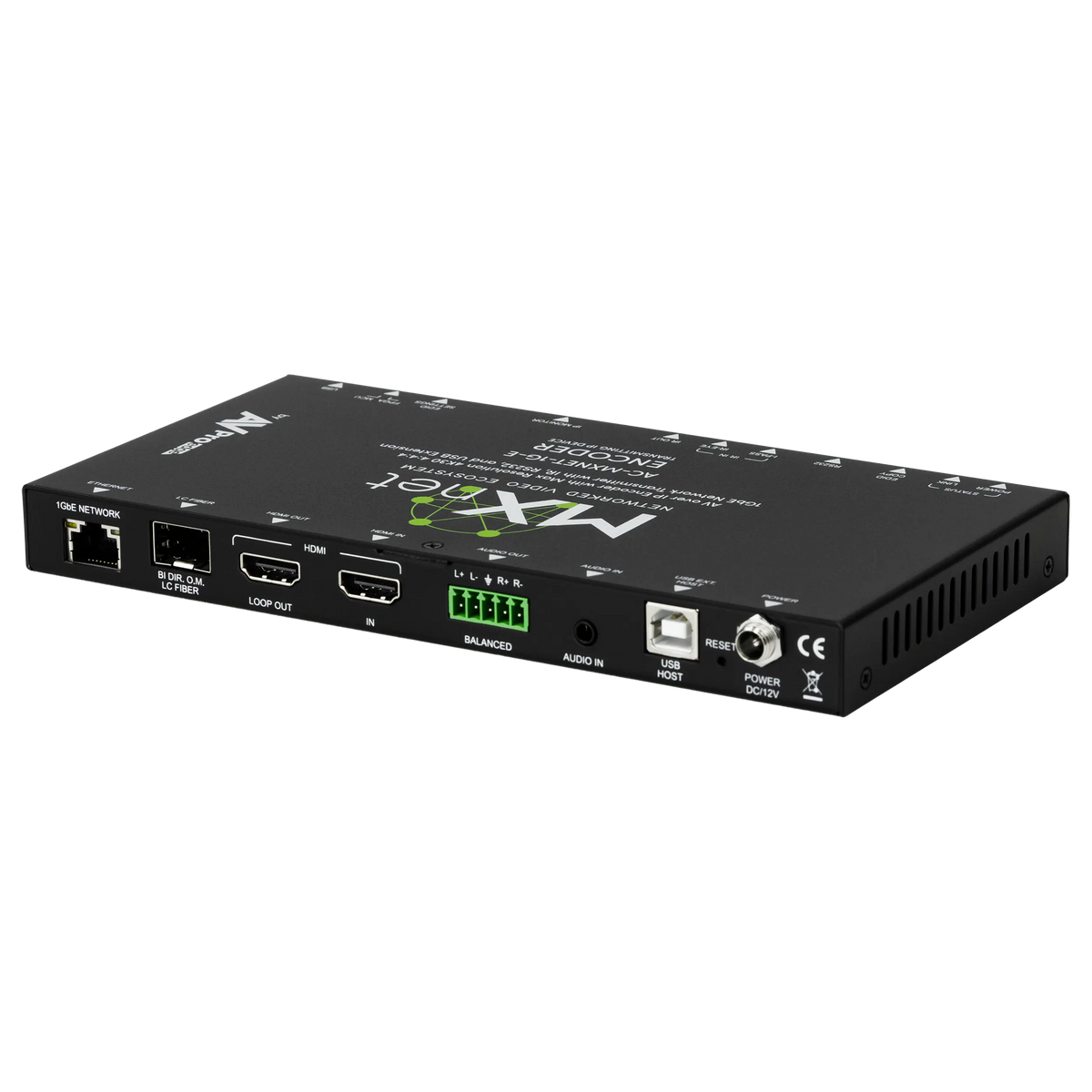

Ports
Ethernet        (1) × female RJ45, PoE
SFP        (1) × SFP Slot
HDMI        (2) × HDMI Type A 19-pin, female (1 input, 1 loop out)
Audio        (1) × 5-pin Terminal Block, Balanced L/R Audio out
             (1) × 3.5 mm mini-stereo jack, Audio in
IR        (1) × 3.5 mm mini-stereo jack (IR-PASS)
           (1) × 3.5 mm mini-stereo jack (IR-EYE)
           (1) × 3.5 mm mini-stereo jack (IR-OUT)
RS232        (1) × 3-pin Terminal Block
USB        (1) × USB 2.0 Type-B (keyboard/mouse extension)
           (1) × USB Micro (MXnet service)

Distance
Ethernet        100 meters / 330 feet over CAT5e or better
SFP and Fiber        1000BASE-SX (MMF, 850nm, 550m, LC, DOM)
                     1000BASE-LX/LH (1310nm, 10km)

Environmental
Operating Temperature        23° to 125°F (-5° to 51°C)
Storage Temperature        -4° to 140°F (-20° to 60°C)
Operating Humidity        5%–90% RH (No Condensation)

Power
Max Power Consumption        6.5W
PoE (Power over Ethernet)        IEEE 802.3af (15.4W)
Power Supply Unit        Input: AC 120–240V, 50/60Hz, 0.8A
                         Output: DC 12V, 2A

Dimensions
Mounting        Rack and furniture mount support
Dimensions (Unit Only)        199.14 × 103.1 × 13.47 mm
                             7.84 × 4.06 × 0.53 inch
Dimensions (Packaged)        309.88 × 180.09 × 54.10 mm
                            12.2 × 7.09 × 2.13 inch

Weight (Unit)        1.25 lbs / 0.57 kg
Weight (Packaged)        1.65 lbs / 0.74 kg

Regulatory        CE / FCC / UL
Product Warranty        10 Years
