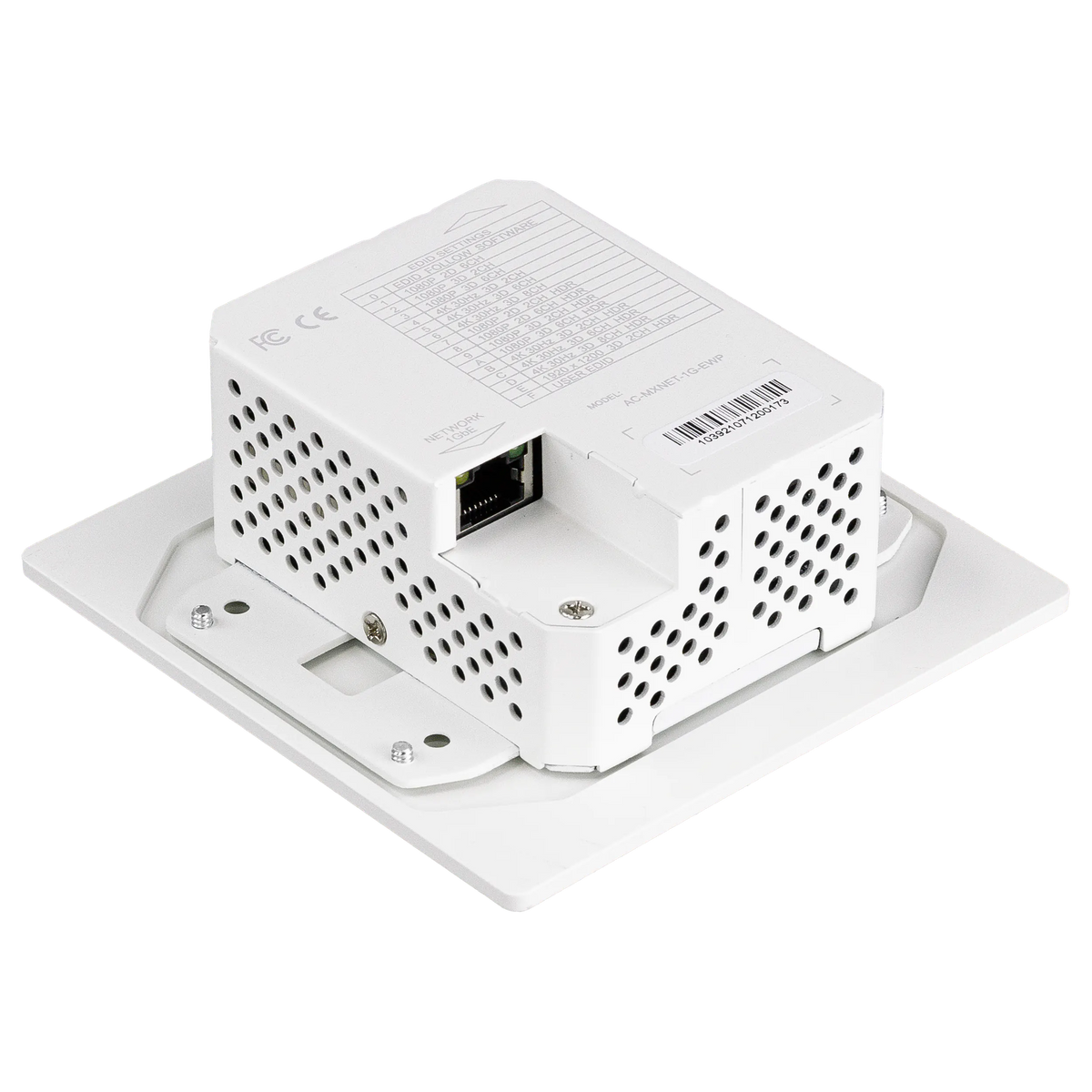

Name        AC-MXNET-1G-EWP

Encoding
Video Codec        Proprietary Codec based on M-JPEG
Audio Codec        Proprietary Codec
Latency        16ms@60Hz
Streaming Protocols        TCP, UDP, IP, IGMP-V2
Copy Protection        HDCP 2.2 and earlier

Video Input/Ingestion
Signal Type        DVI 1.0 (ingested, outputs as HDMI), HDMI 2.0b
Video Resolution        720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@30Hz
Chroma Subsampling        4:4:4, 4:2:2 (Compresses to RGB output)
RGB        -
Bit Depth per Color        1080p (8-, 10-bit), 4K (8-, 10-bit) (Compresses to 8-bit output)
Visually Lossless        1080p@60Hz SDR RGB (8-bit), 4K@30Hz SDR RGB (8-bit)

Audio
Audio Format (end to end)        PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel
                                Dolby Digital Plus, DTS 5.1 Channel, DTS–ES
                                DTS–HD High Resolution
Embedded Audio        Stereo Analog Audio (3.5 mm jack, VGA Audio Input)

Communication/Control of External Devices
USB        HID-Compliant
Serial/RS-232        Bi-directional Device Control / Monitoring
HDMI        HDCP 2.2, EDID Management (Encoder), CEC (Decoder)

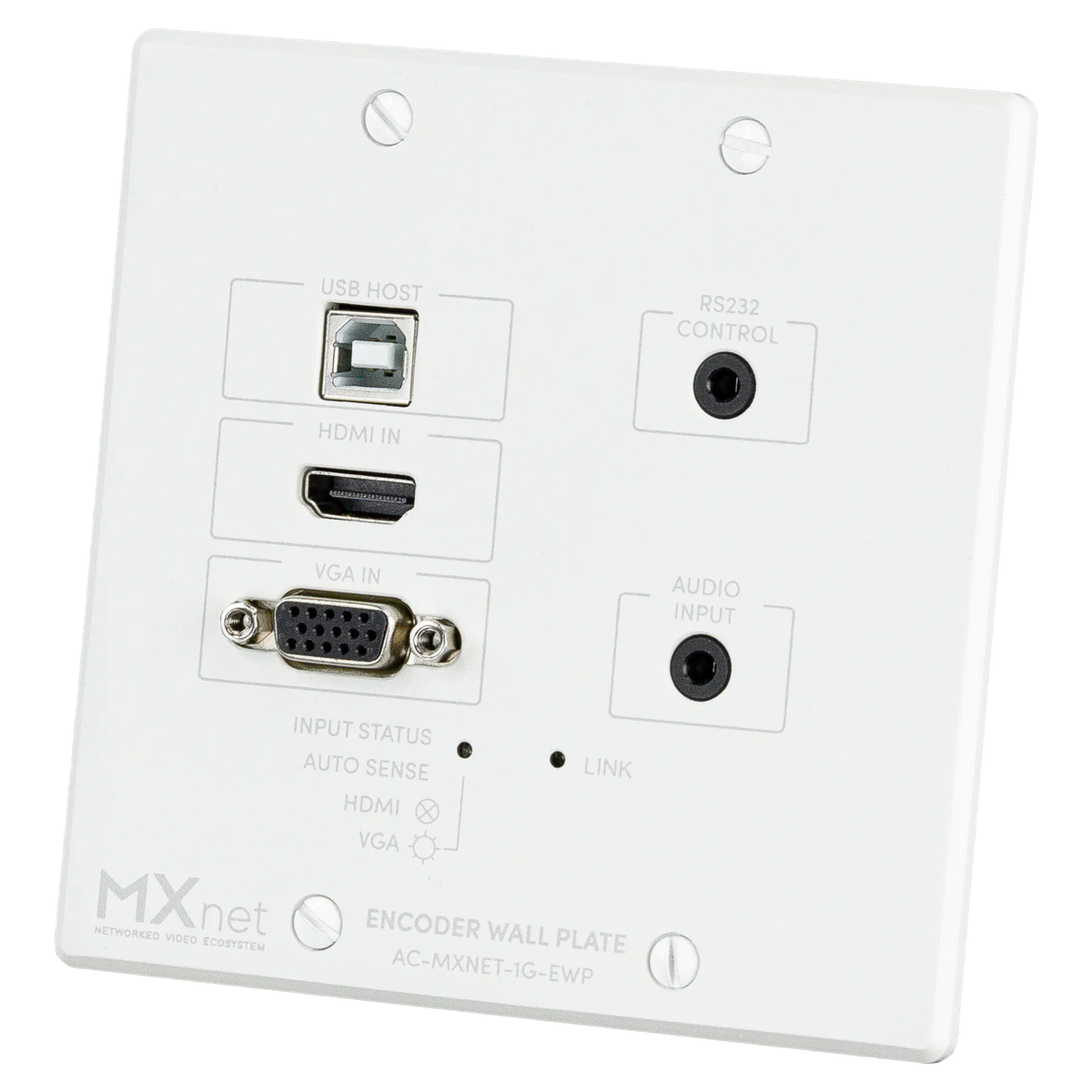

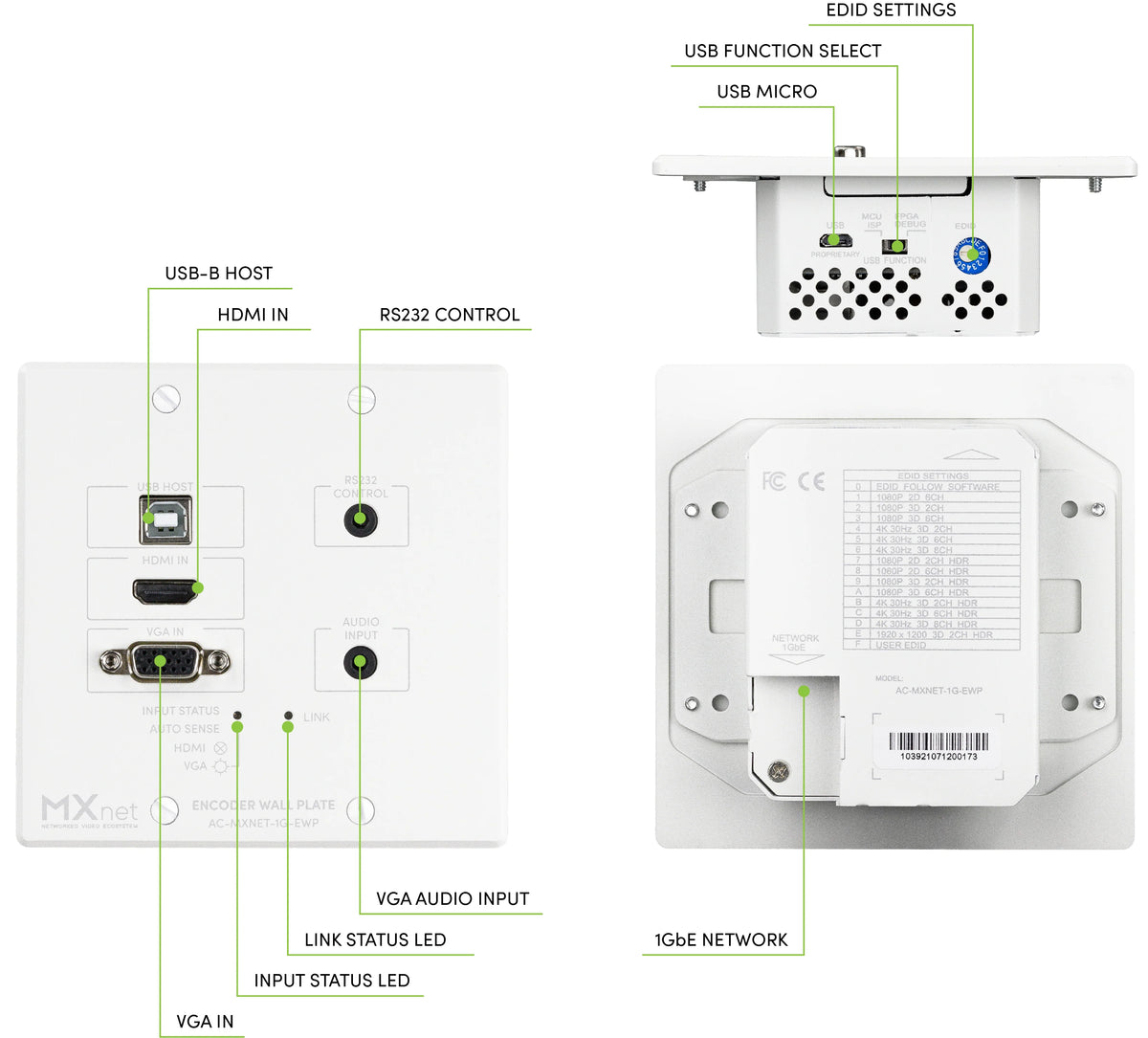

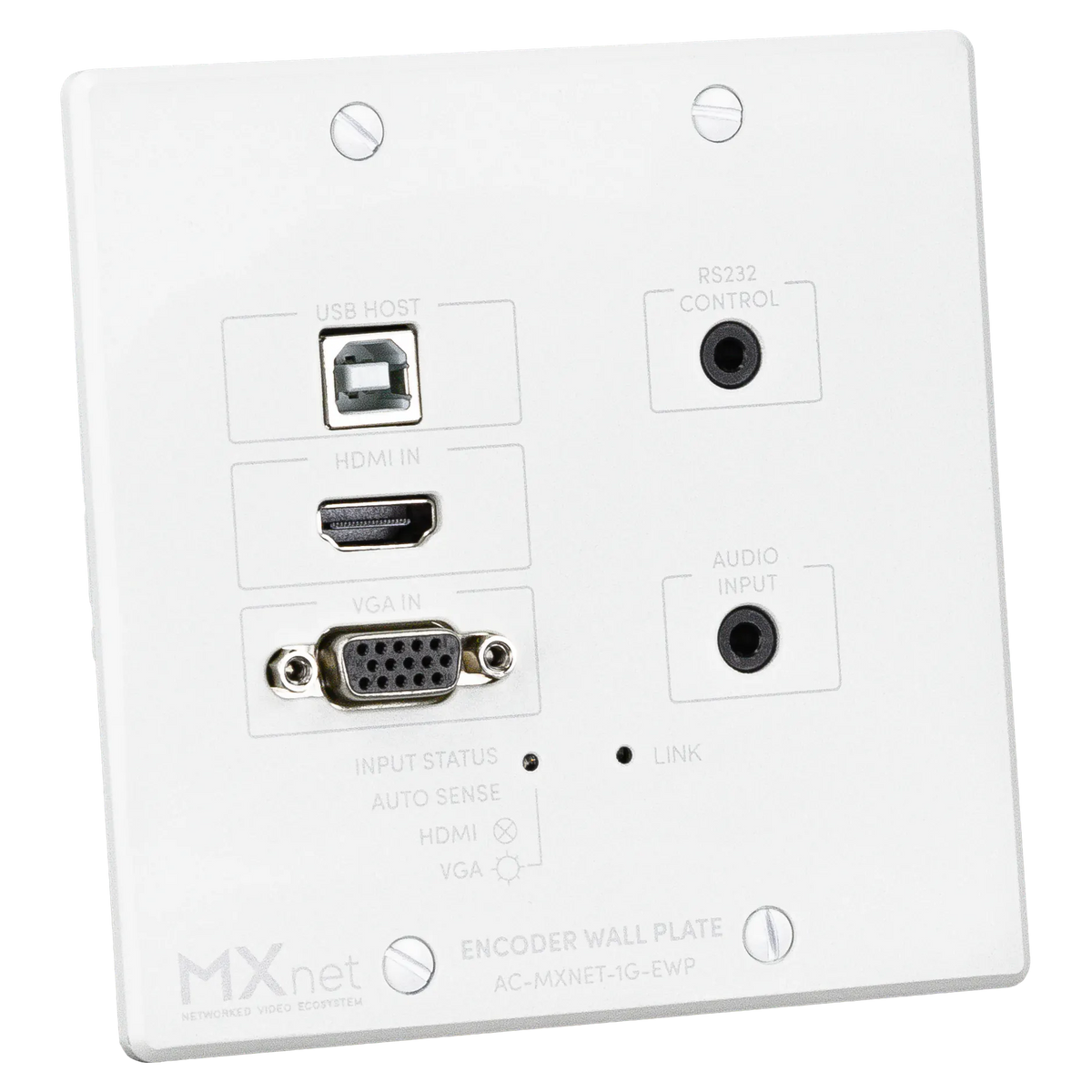

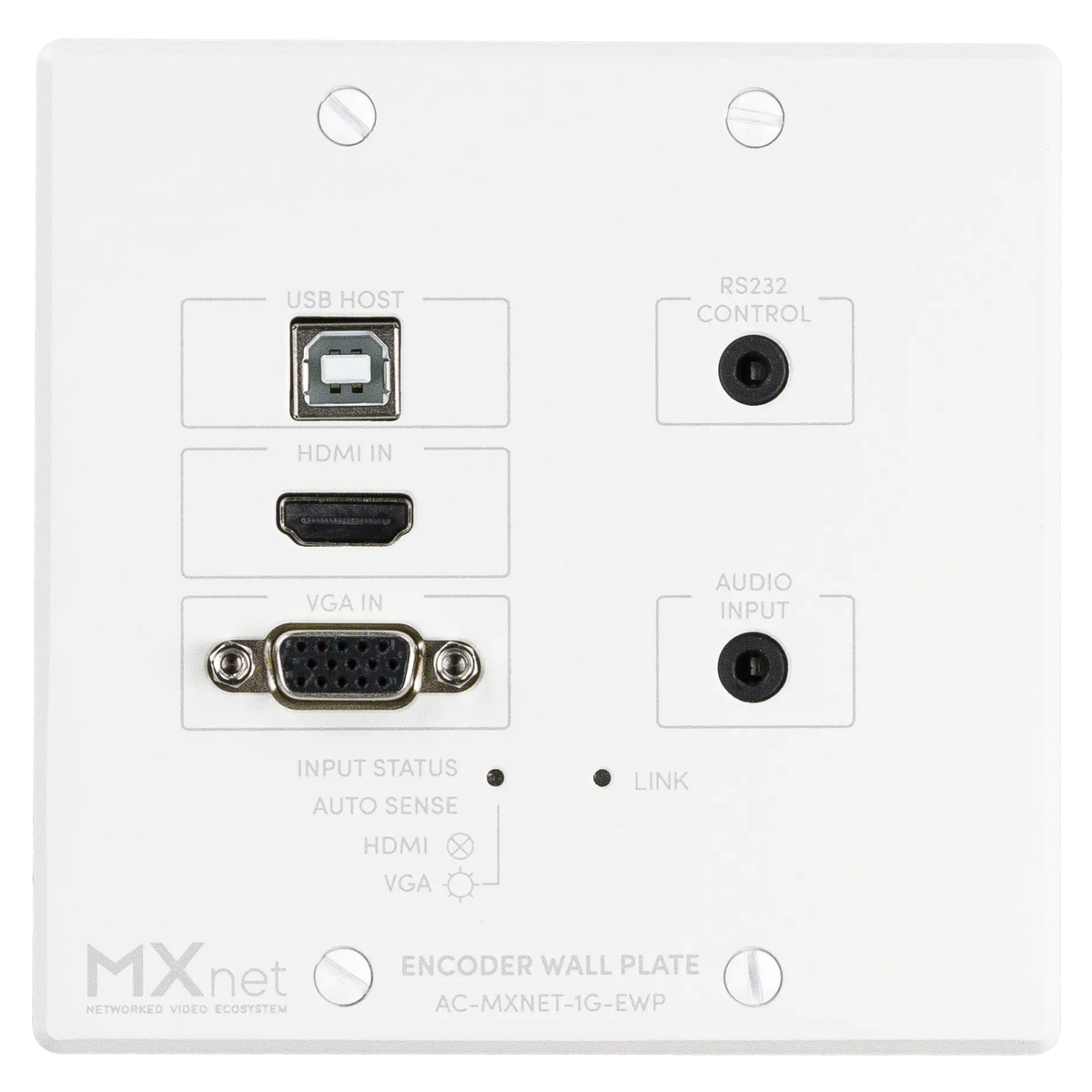

Ports
Ethernet        (1) × female RJ45, PoE
HDMI        (1) × HDMI Type A 19-pin, female (HDMI input)
Audio        (1) × 3.5 mm mini stereo jack (VGA Audio Input)
RS232        (1) × 3.5 mm female jack
USB        (1) × USB 2.0 Type-B (Keyboard/Mouse extension)
           (1) × USB Micro (MXnet service)

Distance
Ethernet        100 meters / 330 feet over CAT5e and above

Environmental
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Operating Humidity        5–90% RH (No Condensation)
Cooling        Fanless Cooling
Acoustic Noise Level        0 dB

Power
Max Power Consumption        5.5W
PoE (Power over Ethernet)        IEEE 802.3af (15.4W)

Dimensions
Mounting        Rack and furniture mount support
Dimensions (Unit Only)        82.55 × 38.1 × 104.902 mm
                             3.25 × 1.5 × 4.13 inch
Dimensions (Unit + Faceplate)        115.824 × 41.402 × 115.824 mm
                                   4.56 × 1.63 × 4.56 inch
Dimensions (Packaged)        155.70 × 133.35 × 85.85 mm
                            6.13 × 5.25 × 3.38 inch

Weight (Unit + Faceplate)        0.94 lbs / 0.43 kg
Weight (Packaged)        1.18 lbs / 0.54 kg

Regulatory        CE / FCC / UL
Product Warranty        10 Years
