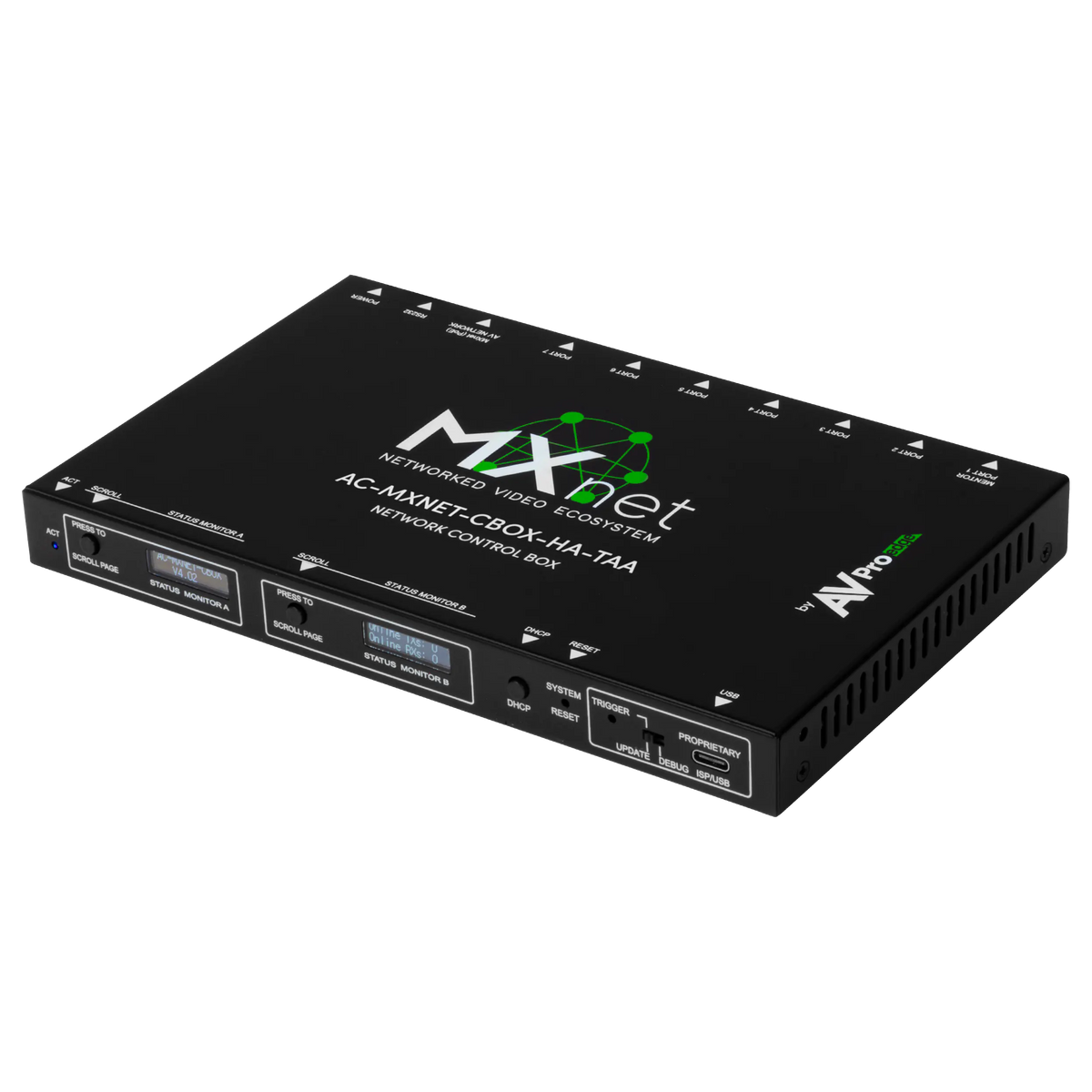

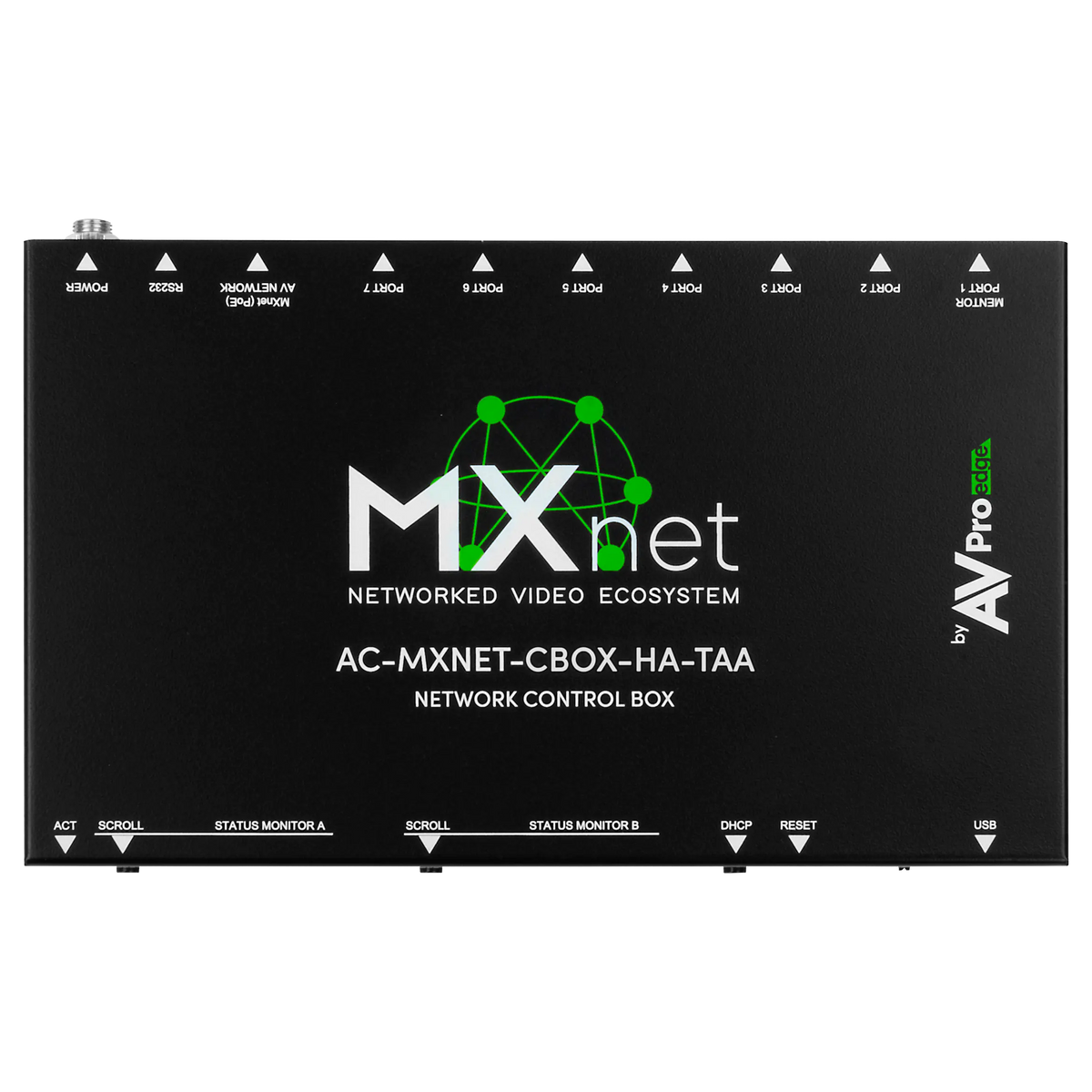

Name        AC-MXNET-CBOX-HA-TAA

Ports
Ethernet        (8) × female RJ-45 (one with PoE)
SFP        0
HDMI        N/A
Audio        N/A
IR        N/A
RS232        (1) × 5-pin Terminal Block (MXnet System Control)
USB        (1) × USB Micro Type-B (MXnet service)

Distance
Ethernet        100 meters / 330 feet over CAT5e and above
SFP and Fiber        N/A

Environmental
Operating Temperature        23 to 125°F (-5 to 51°C)
Storage Temperature        -4 to 140°F (-20 to 60°C)
Operating Humidity        5–90% RH (No Condensation)

Power
Max Power Consumption        4.5W
PoE (Power over Ethernet)        IEEE 802.3af (15.4W)
Power Supply Unit        Input: AC 120–240V, 50/60Hz, 0.8A
                         Output: DC 12V, 2A

Dimensions
Mounting        Rack and furniture mount support

Dimensions (Unit Only)        200 × 104 × 20 mm
                             7.87 × 4.09 × 0.79 inch

Dimensions (Packaged)        310 × 180 × 54 mm
                            12.2 × 7.09 × 2.13 inch

Weight (Unit)        1.26 lbs / 0.57 kg
Weight (Packaged)        1.74 lbs / 0.79 kg

Regulatory        CE / FCC / UL
Product Warranty        10 Years
