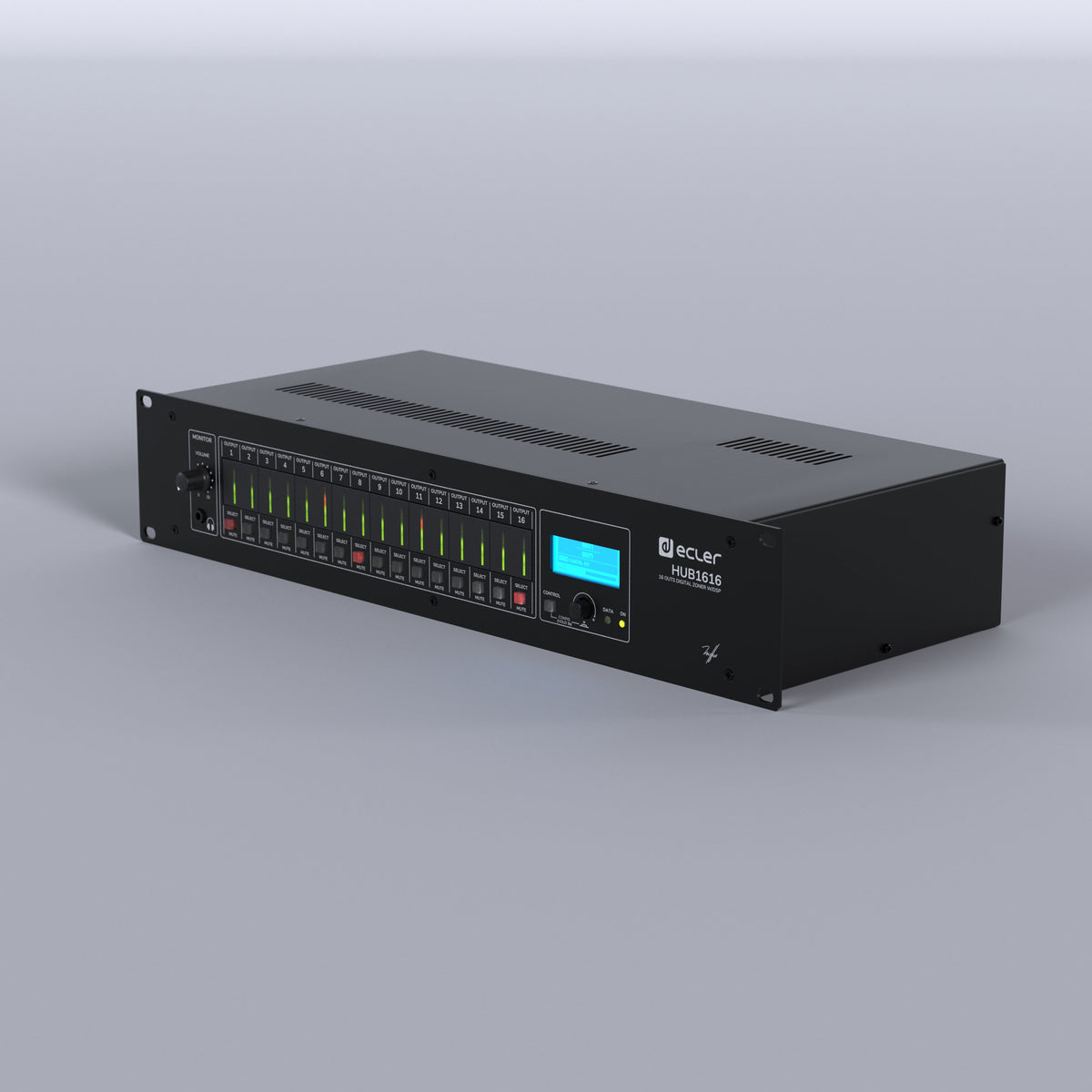

The Ecler HUB1616 is a high-performance 16-input, 16-output digital zoner with integrated DSP, designed for flexible multi-zone audio distribution in professional environments. Its advanced DSP capabilities include frequency shifting, stereo linking, delay, crossover filters, 8-band graphic EQ, and compressor/limiter functions, allowing precise audio tuning for each output zone. Predefined setups enable quick plug-and-play installation, while four priority levels with ducker and paging functions ensure smooth handling of announcements and priority audio.

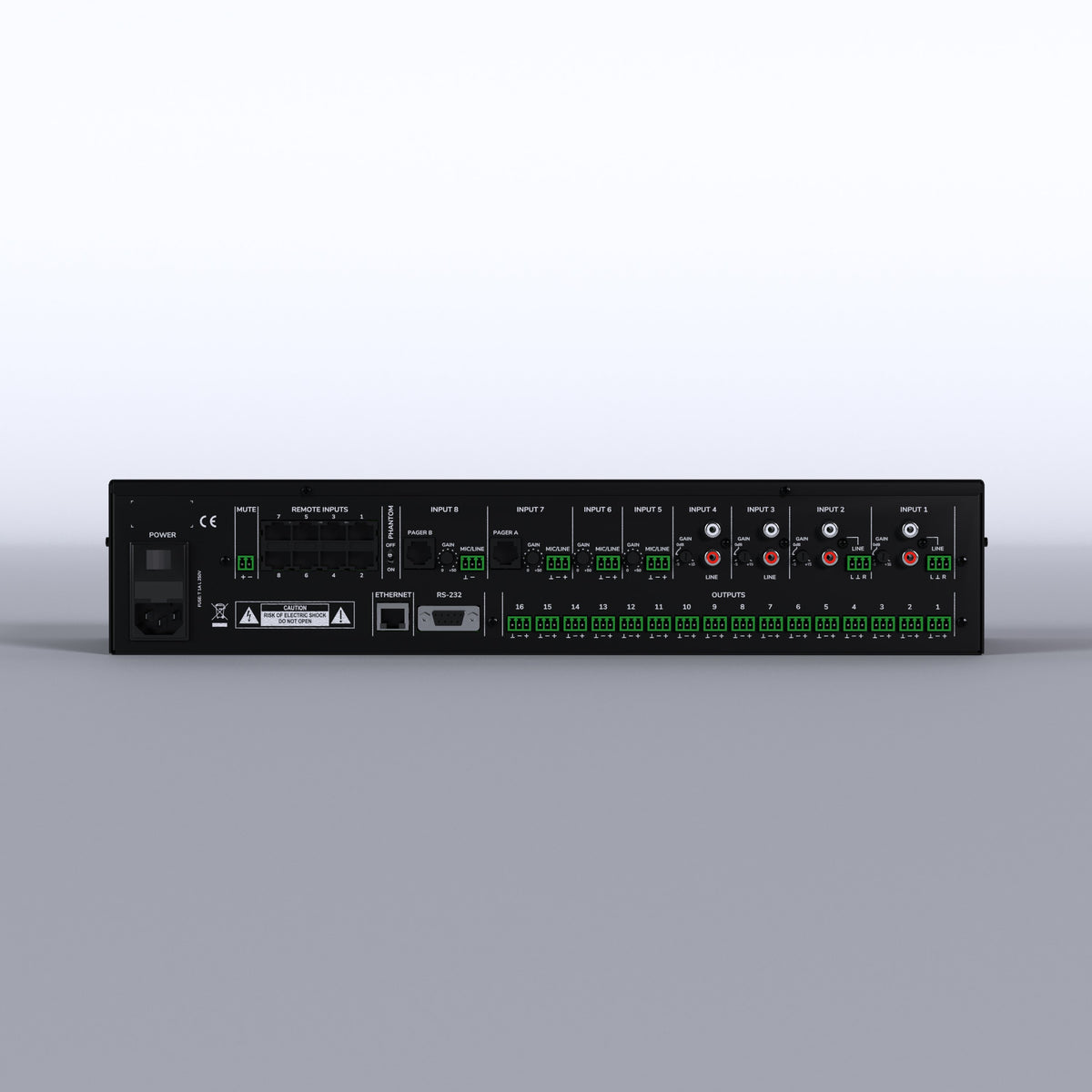

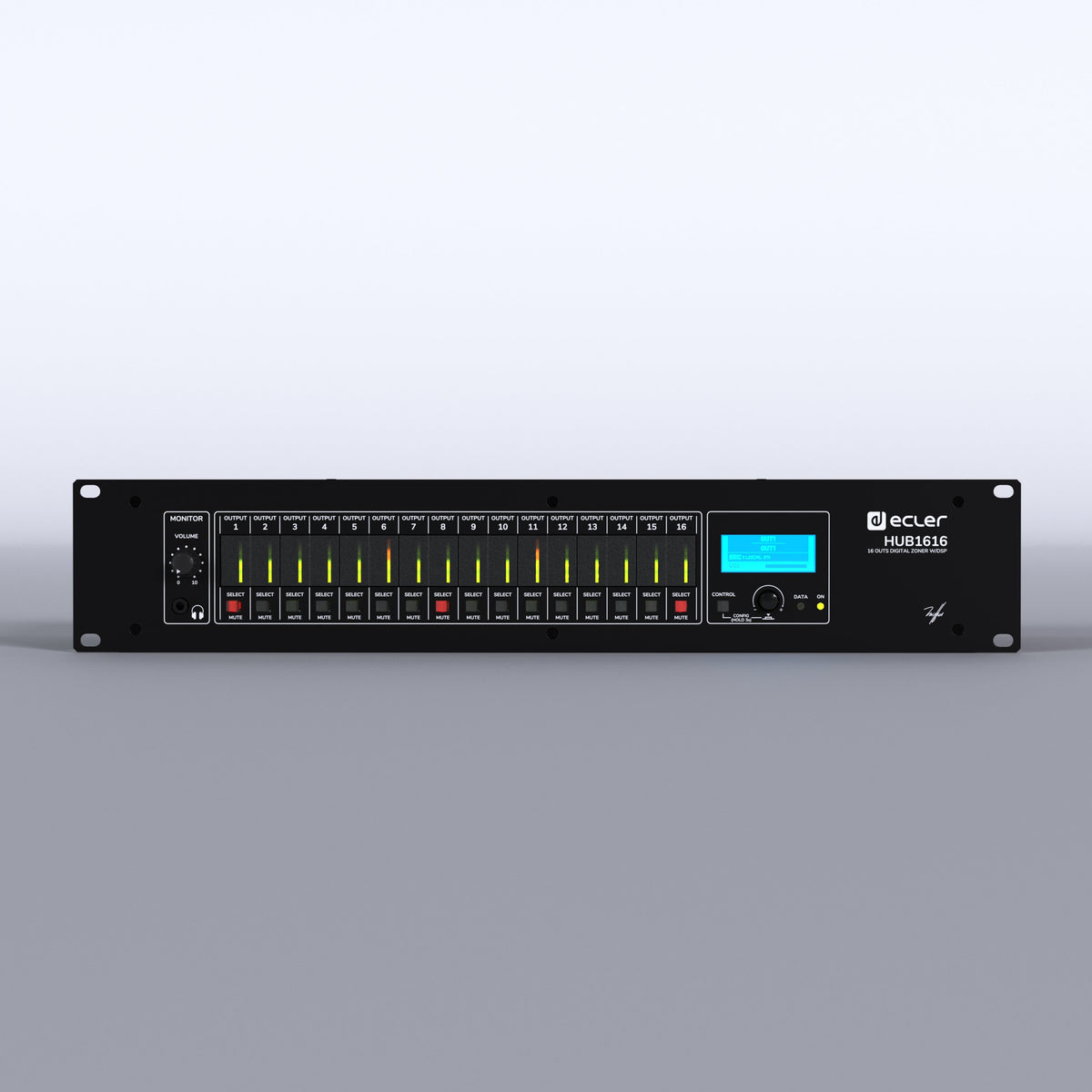

Programming and control are simple via the embedded web application HANGAR, accessible through any standard web browser. Additional control options include the front panel, eMCONTROL1 wall panels (up to 8), eMPAGE paging consoles (up to 2), the Ecler Pilot app (Android and iOS), and TP-NET protocol via RS-232 for integration with third-party systems. Each zone allows audio source selection, volume adjustment, mute control, and 3-band tone adjustment. A dedicated MUTE port can be activated by an external dry contact to mute programmed outputs as needed.

Ideal for retail spaces, corporate offices, educational institutions, sports and wellness centers, and hospitality environments, the HUB1616 delivers reliable, professional-grade multi-zone audio with flexible control and precise DSP management.
