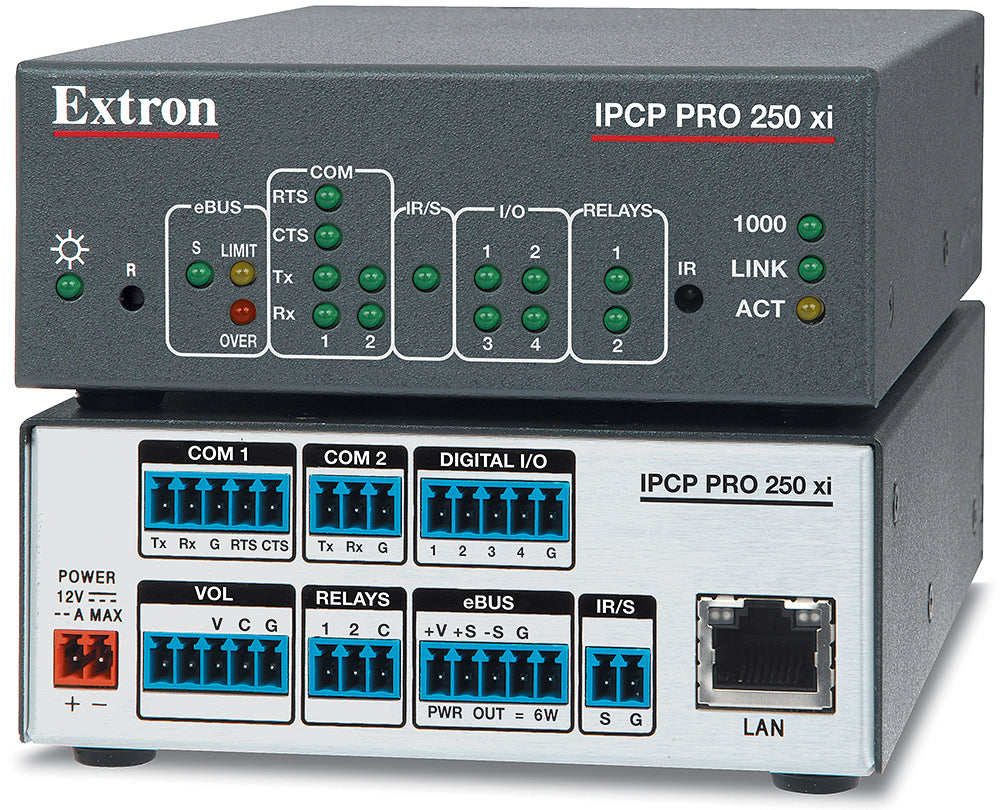

Name       IPCP Pro 250 xi

Memory
SDRAM       1 GB
Flash       8 GB

Software
Configuration software       Global Configurator® Plus and Professional
Programming software       Global Scripter®
Control apps       Extron Control
Resource management software       GlobalViewer® Enterprise
Utilities       Toolbelt, embedded web page

Hardware user interface
Hardware       TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

Ethernet
Network interface controllers (NICs)       1: 1 LAN
Connector       1 female RJ-45 connector
Data rate       10/100/1000Base-T, half/full duplex with autodetect
Protocols       ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings       IP: 192.168.254.250 | Subnet: 255.255.255.0 | Gateway: 0.0.0.0 | DHCP: off | DNS: 127.0.0.1

Serial
Quantity/type       1 RS-232/422/485 (port 1), 1 RS-232 (port 2)
Connector       3.5 mm captive screw (5 pole & 3 pole)
Baud rate       300 to 115200 baud
Pin configurations       RS-232 / RS-422 / RS-485 supported (Tx, Rx, Gnd, etc.)

Digital I/O
Quantity/type       4 configurable digital I/O
Connector       3.5 mm captive screw (5 pole)
Input voltage       0 to 24 VDC
Output       250 mA sink
Pin       1–4 = I/O, 5 = Gnd

IR/Serial
Quantity/type       1 programmable IR/Serial port
Connector       3.5 mm (2 pole)
Baud rate       300 to 115200 baud
IR frequency       30 kHz to 300 kHz

Relay
Quantity/type       2 normally open relays
Connector       3.5 mm (3 pole)
Rating       24 VDC, 1 A

Volume Control
Quantity/type       1 volume control
Voltage range       0 to +10 VDC

eBUS
Port       3.5 mm (5 pole)
Power output       6 W
Max cable length       1000 ft (305 m)

General
Power supply       External (included)
Input       100–240 VAC
Output       12 VDC, 1.5 A
Power consumption       9.6 W (device), 10.8 W total

Environmental
Operating temp       0 to 50 °C
Storage temp       -40 to 70 °C
Humidity       10% to 90% RH

Cooling       Convection (no vents)

Thermal Dissipation
Device       12.3 BTU/hr
With power supply       16.4 BTU/hr

Mounting
Rack       Optional 1U rack shelf
Furniture       Optional bracket kit

Enclosure
Type       Metal
Dimensions       1.7" H × 4.3" W × 6.0" D
Weight       0.7 lbs (0.3 kg)

Compliance
Standards       CE, FCC Class A, UL, RoHS, WEEE

Warranty
Product       3 years
Power Supply       7 years
