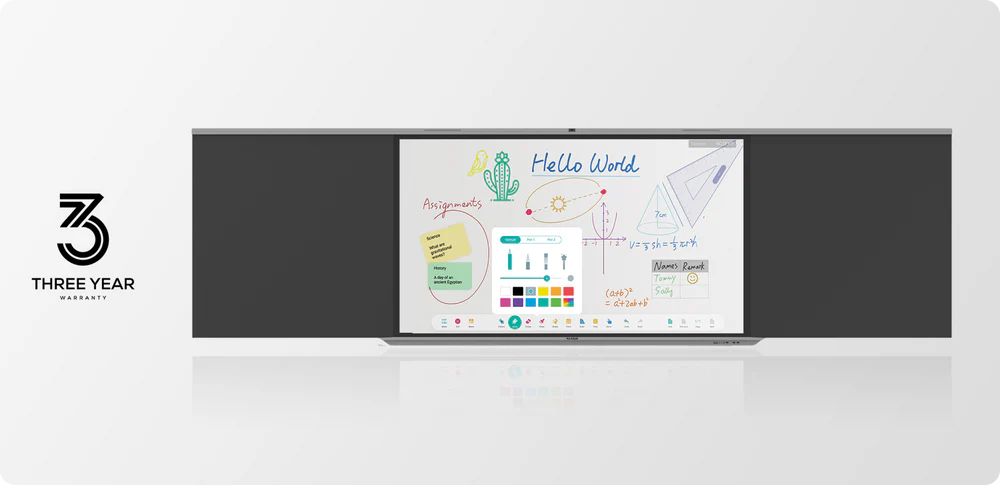

Name        Maxhub | B8610
Refresh Rate        60 Hz
Screen Size        86 inch

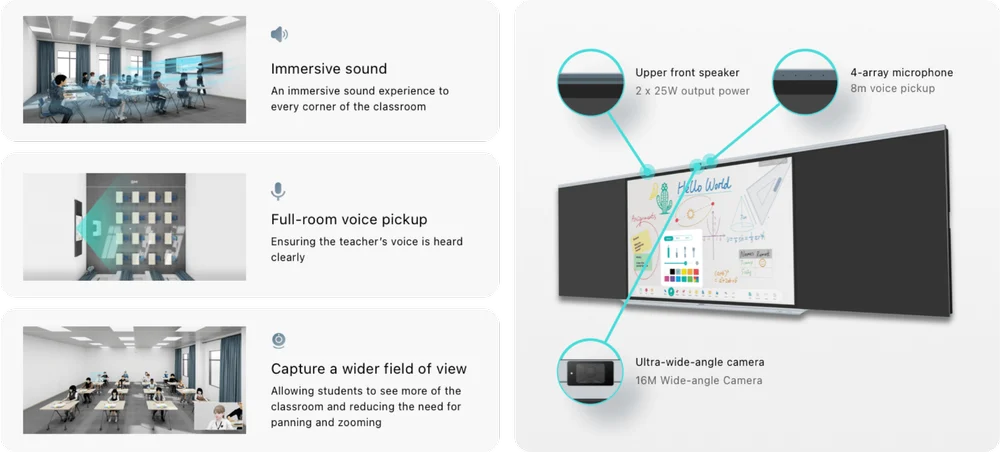

Built-in Camera        16M 135° FOV, 4K, 1080P, 720P
Built-In Microphones        4-Array Microphone 0-8m
Accessories        Remote Control × 1, Stylus × 2, Wall Mount × 1, Wireless Adapter × 1
Included Cables        Power Cord 3m × 1, HDMI Cable 3m × 1, USB Type-C Cable 1.8m × 1, USB Touch Cable (Type A-B) 5m × 1
Power Consumption        440W
Power Standby        0.5W
Shipping Dimensions        Main screen: 2156 × 255 × 1335mm, Blackboard: 1240 × 280 × 1257mm
Product Dimensions        Main screen: 1994 × 1200 × 109mm, Blackboard: 1114 × 1200 × 112mm, After assembling: 4200 × 1219 × 98mm
Product Weight        Main screen: 61.45kg, Total Blackboard: 18.10kg
Operating Humidity        10% to 90% RH
Operating Temperature        0 °C - 40 °C
Blue-Light Filter        Yes
RAM        8 GB
Storage        64 GB
GPU        Mali-G52 MP2
CPU        2.0GHz quad core ARM A55
OS Version        Android 13
Touch Points        20 Points Multi Touch
Touch Technology        Infrared
Touch Response Time        9 ms
Touch Accuracy        ± 2mm
Surface Protection        Anti-glare, Etched AG Technology
Ethernet (RJ45)        RJ45 IN × 1, RJ45 OUT × 1
Serial Port        RS232 × 1
OPS PC Slot        Optional
USB Ports        USB 3.0 × 4, USB 2.0 × 1
Touch USB Ports        TOUCH OUT × 2
Audio Out        AUDIO OUT × 1
Audio In        AUDIO IN × 1

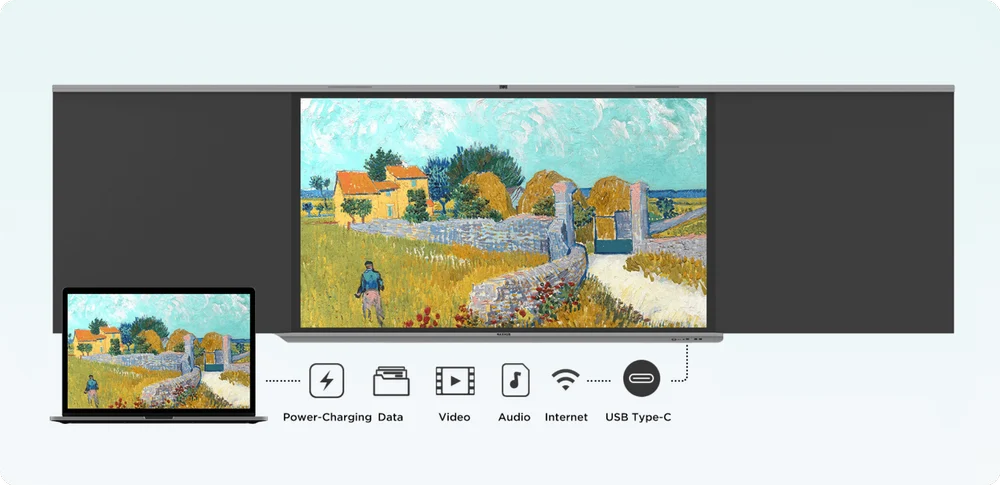

Type C Functionality        65W power charge, video, audio, touch and internet access features
Type C in        USB Type-C × 1
VGAInput        VGA × 1
Hdmi Output        HDMI OUT × 1
Hdmi Input        HDMI IN × 3
Speaker Output        2 × 25W (Max.)
Speaker Type        Built-in Speakers
Brightness        400 cd/m²
Display Color        10bit
Resolution        3840 × 2160
Viewing Angle        178° (H) / 178° (V)
Backlight        DLED
