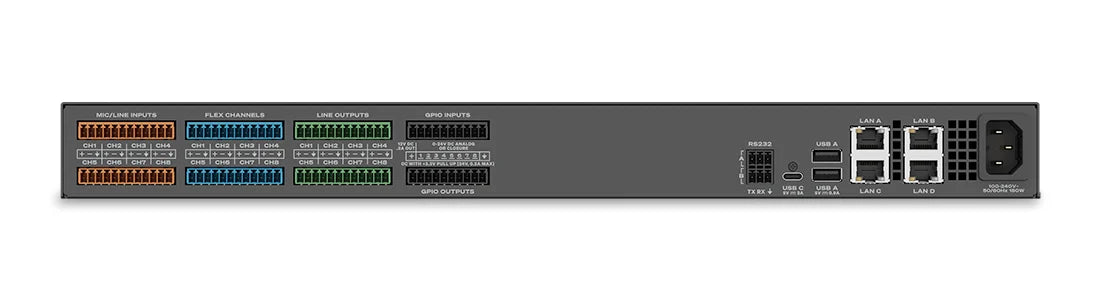

The Q-SYS Core 24f is a powerful, enterprise-grade AV processor designed for large-scale and high-performance audio, video, and control systems. Supporting up to 160 × 160 network I/O channels, it delivers exceptional scalability for complex installations. The processor includes 24 channels of onboard analog I/O, with eight software-definable Flex channels for customizable configuration, along with 8 × 8 GPIO for seamless third-party device control integration.

The Core 24f features 8 × 8 software-based Dante channels (licensable up to 64 × 64) and provides 24 Acoustic Echo Cancellation (AEC) channels at 200 ms, ensuring outstanding voice clarity in demanding conferencing environments. Integrated AV bridging via USB-C enables simple connectivity with collaboration platforms, while dual 2.5 Gbps Ethernet ports support redundant networked audio (QLAN, AES67, VoIP, WAN, and media streaming). Two additional independent 2.5 Gbps auxiliary Ethernet ports further enhance system flexibility and segmentation.

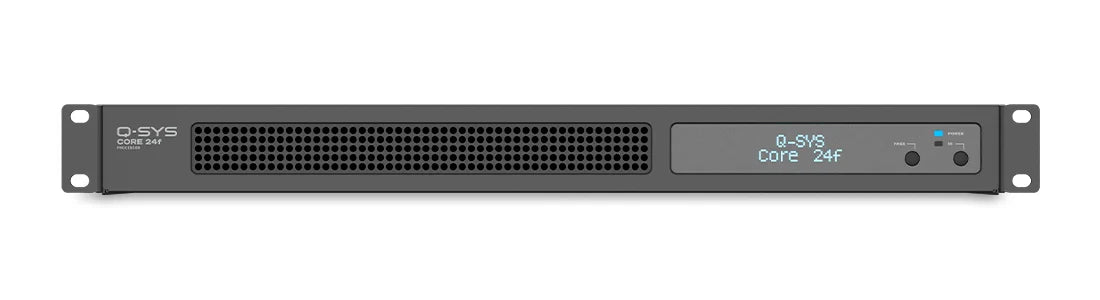

Designed to support up to ten Q-SYS NM-T1 tabletop microphones and host up to eight VoIP softphone instances, the Core 24f is built for advanced conferencing and communication applications. An integrated OLED front display simplifies monitoring and configuration, and the 1RU form factor ensures efficient rack integration. Ideal for corporate headquarters, large boardrooms, government facilities, education campuses, and mission-critical environments, the Core 24f delivers scalable, future-ready AV processing in a compact and robust platform.
