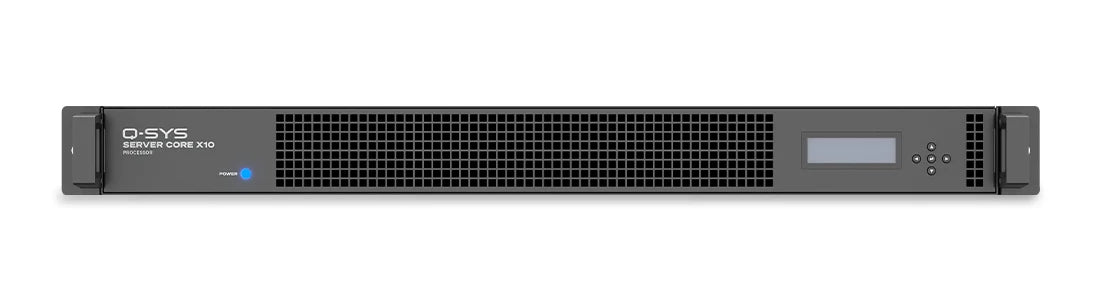

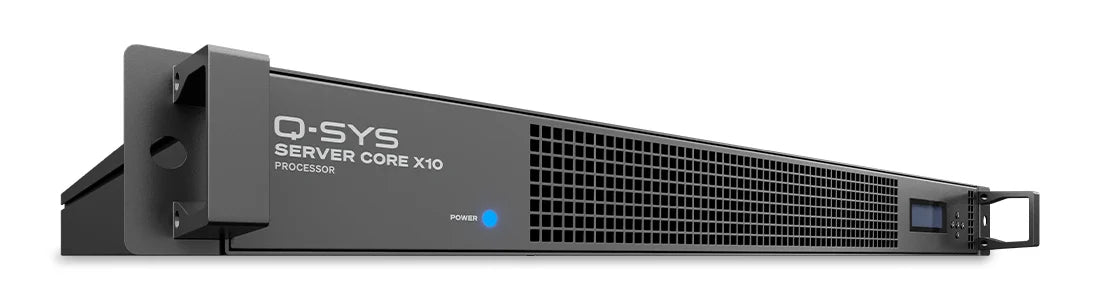

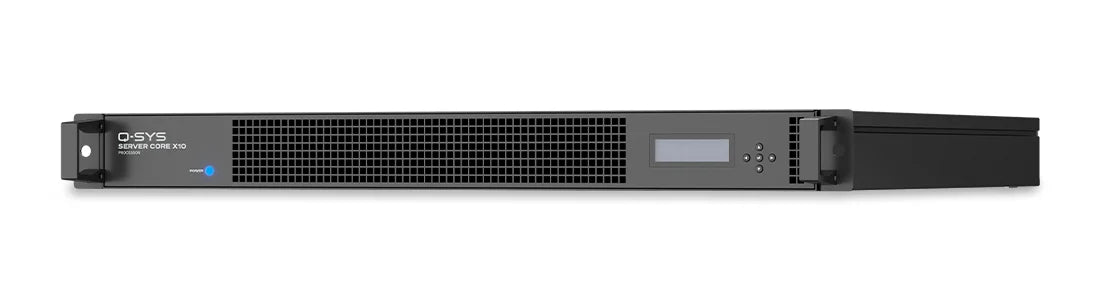

The Q-SYS Server Core X10 is an enterprise-class AV&C processor engineered to power large-scale, mission-critical audio, video, and control systems. Delivering up to 256 × 256 networked audio channels via Q-LAN and AES67, it provides exceptional scalability for complex, high-capacity installations. Equipped with 64 Acoustic Echo Cancellation (AEC) channels at 200 ms, the Server Core X10 ensures superior voice clarity for demanding conferencing and collaboration environments.

The platform includes 8 × 8 software-based Dante channels (licensable up to 128 × 128) and supports up to sixteen Q-SYS NM-T1 tabletop microphones. With the ability to host up to 32 VoIP softphone instances and handle 64 × 64 Media/WAN channels, it is designed for robust enterprise communication systems. Advanced media capabilities include 16 multitrack playback channels (expandable up to 128 with an optional stackable license), four multitrack recording channels, and an onboard 256 GB media drive for reliable content storage and playback.

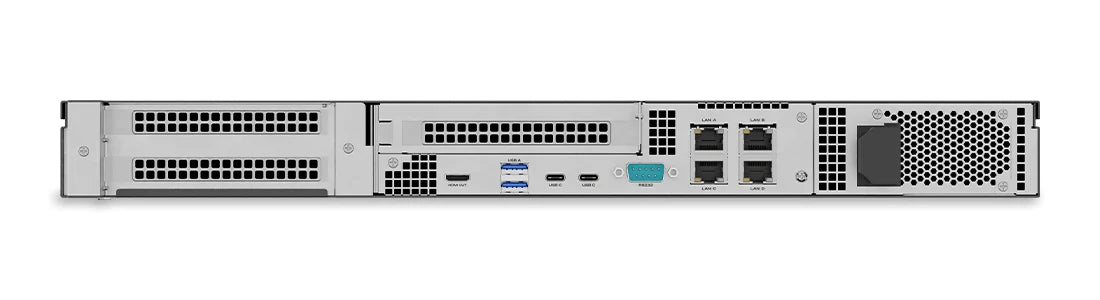

For network resilience and service segregation, the Server Core X10 features two 2.5 Gbps Ethernet ports for redundant networked audio and two independent 2.5 Gbps auxiliary Ethernet ports dedicated to services such as VoIP, SNMP, LLDP, LDAP, and WAN media streaming. Housed in a compact 1RU form factor, the Server Core X10 is ideal for corporate headquarters, government facilities, large campuses, transportation hubs, and other enterprise environments requiring scalable, high-performance AV processing.
