The Q-SYS Server Core X20r is a flagship enterprise AV&C processor built for the most demanding, large-scale and mission-critical installations. Delivering an impressive 384 × 384 networked audio channels via Q-LAN and AES67, it provides exceptional processing capacity for expansive AV systems. Equipped with 128 Acoustic Echo Cancellation (AEC) channels at 200 ms, the X20r ensures outstanding voice clarity across high-density conferencing environments.

The platform includes 8 × 8 software-based Dante channels (licensable up to 256 × 256) and supports up to twenty-four Q-SYS NM-T1 tabletop microphones. With the ability to host up to 64 VoIP softphone instances and manage 96 × 96 Media/WAN channels, it is engineered for robust enterprise communication infrastructures. Advanced media functionality includes 16 multitrack playback channels (expandable up to 256 with an optional stackable feature license), four multitrack recording channels, and an onboard 480 GB media drive for reliable storage and playback.

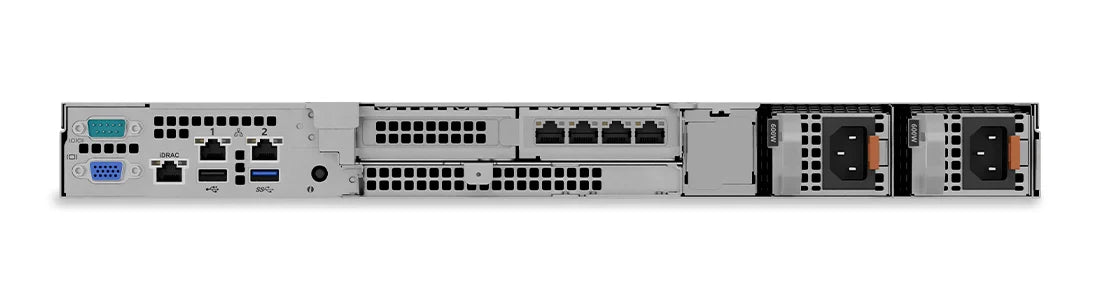

Designed for maximum reliability, the Server Core X20r features dual redundant, hot-swappable power supplies and dual gigabit Ethernet ports for redundant networked audio, along with two independent auxiliary Ethernet ports for network service segregation such as VoIP, SNMP, LLDP, LDAP, and WAN media streaming. Housed in a compact 1RU form factor, the Server Core X20r is ideal for government facilities, global enterprises, transportation hubs, large campuses, and other mission-critical environments requiring uncompromising performance, redundancy, and scalability.
