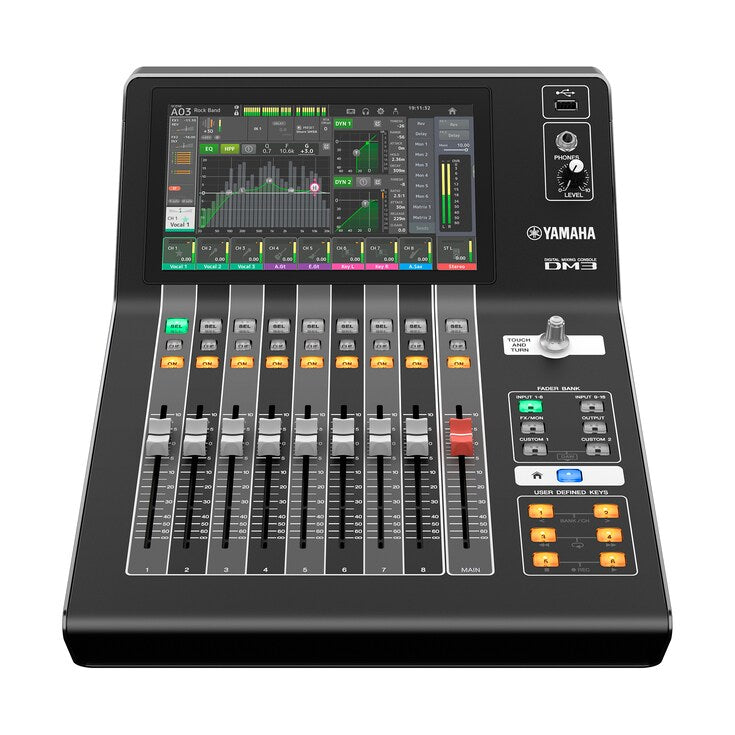

The Yamaha DM3 is a compact yet powerful digital mixing console designed for live sound, streaming, recording, and installation environments where space efficiency and professional performance are essential. It features an 8 + 1 fader configuration paired with a responsive 9-inch multi-touch screen, delivering an intuitive user interface optimized for fast, smooth operation. The mixer provides 16 mono input channels, one stereo channel, and two FX returns, along with one stereo bus, six mix buses, two FX buses, and two matrix buses with input-to-matrix support for flexible routing.

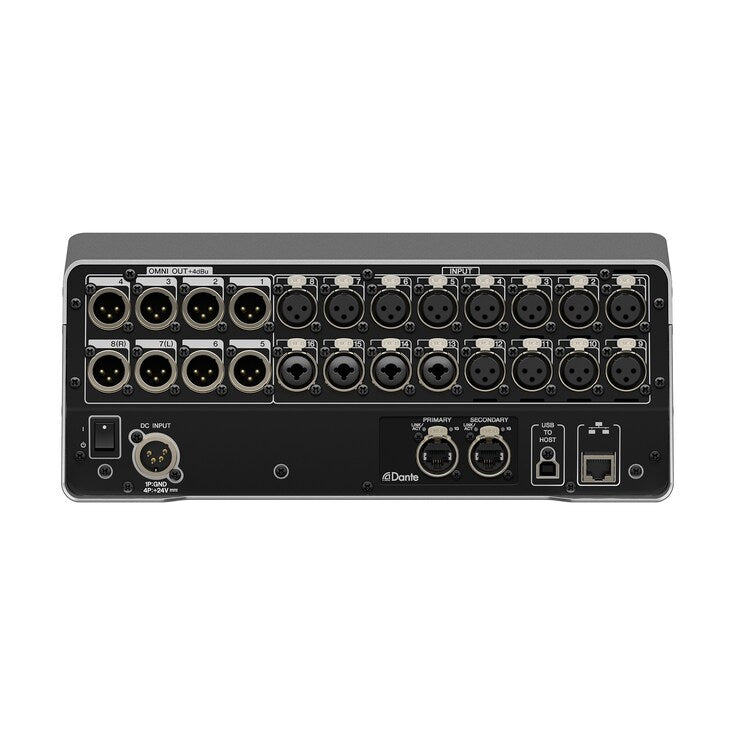

Local connectivity includes 16 mic/line inputs comprising 12 XLR and four XLR/TRS combo connectors, as well as eight XLR outputs. Integrated Dante support offers 16 inputs and 16 outputs for networked audio, while the 18 x 18 USB interface enables seamless recording and playback with a computer. The DM3 operates at 48kHz or 96kHz sampling rates and includes 18 high-quality effects along with graphic EQ on Mix 1–6 and stereo channels. Yamaha’s QuickPro Presets™ provide instant professional sound setups, making configuration fast and efficient.

The DM3 supports DAW remote control for smooth integration with digital audio workstations and offers offline editing and system control via DM3 Editor software. Wireless remote control is available through an iPad app, and up to 10 iOS or Android devices can simultaneously manage individual mix or matrix monitoring. Direct two-track recording to USB flash drives and multitrack recording via Dante or USB ensure flexible recording options. With compact dimensions of 320 mm x 140 mm x 455 mm and a net weight of just 6.5 kg, the DM3 delivers professional-grade performance in a highly portable and versatile format.
