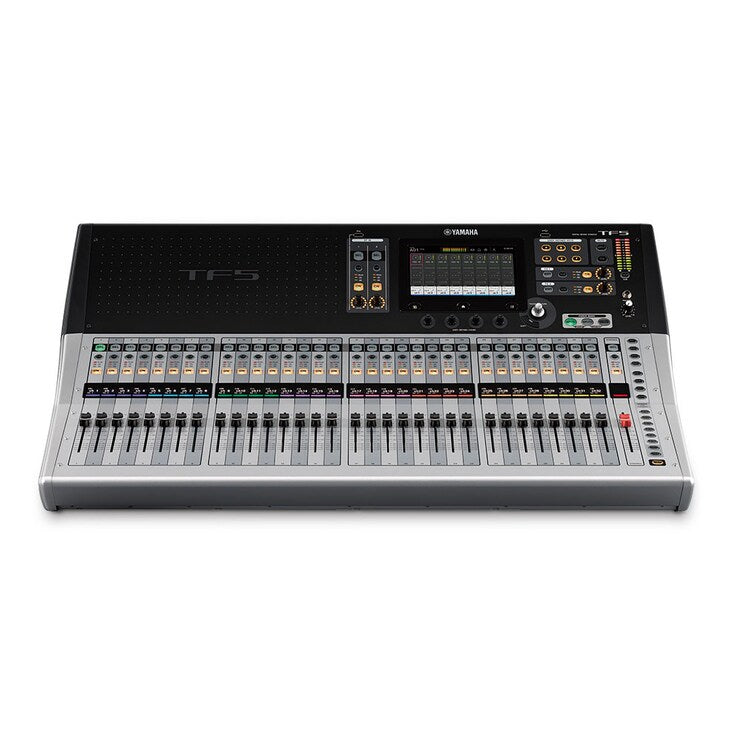

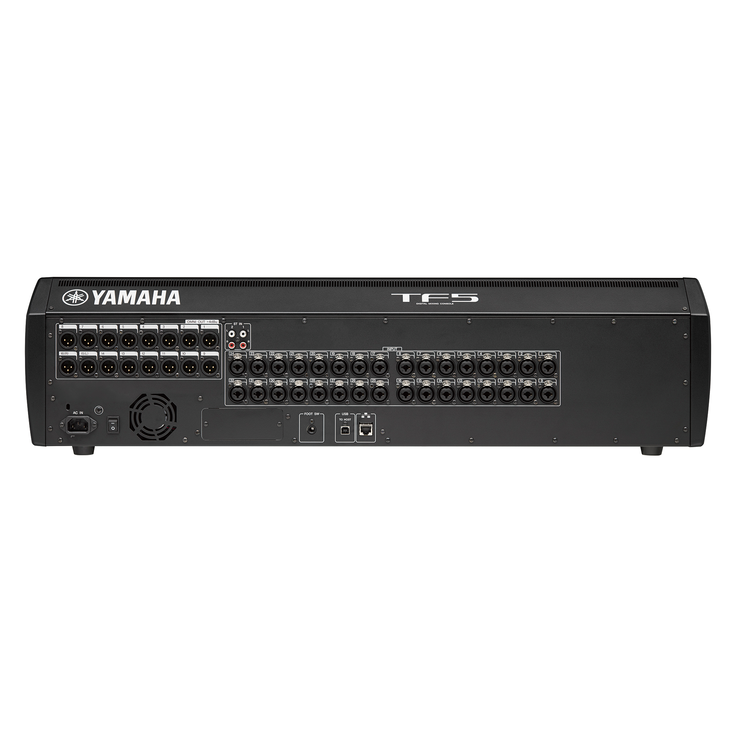

The Yamaha TF5 is a high-capacity digital mixing console designed for live sound, houses of worship, corporate events, and touring applications that require powerful performance with intuitive operation. It features a 32 + 1 fader configuration and supports up to 40 mono input channels, 2 stereo channels, and 2 return channels, along with 20 auxiliary buses, stereo and sub buses, and 4 matrix outputs for flexible routing. With 32 mic/line inputs, 2 stereo line inputs, and 16 outputs, the TF5 delivers extensive connectivity for demanding productions.

Equipped with recallable D-PRE™ microphone preamplifiers, the TF5 provides a clean and natural sonic foundation. Its touch-panel optimized interface combines Overview and Selected Channel displays for smooth workflow, while features such as 1-knob COMP™, 1-knob EQ™, GainFinder™, and DCA Roll-out simplify setup and enhance mix control. SENDS ON FADER functionality allows quick access to auxiliary and FX levels, and QuickPro Presets™ offer instant professional sound configurations.

The console includes 8 powerful processing and effect units, user-defined keys and knobs, and 8 DCA groups for comprehensive control. Remote operation and offline editing are available via iPad and other devices, while direct two-track recording to USB or multitrack recording to a DAW via USB supports both live capture and virtual soundcheck. With an expansion slot for the NY64-D Dante card, the TF5 combines flexibility, reliability, and professional-grade audio performance in a versatile mixing solution.
